Application Software for Power Supplies and Electronic Loads
WAVY Series
wavy
60,000円 – 80,000円

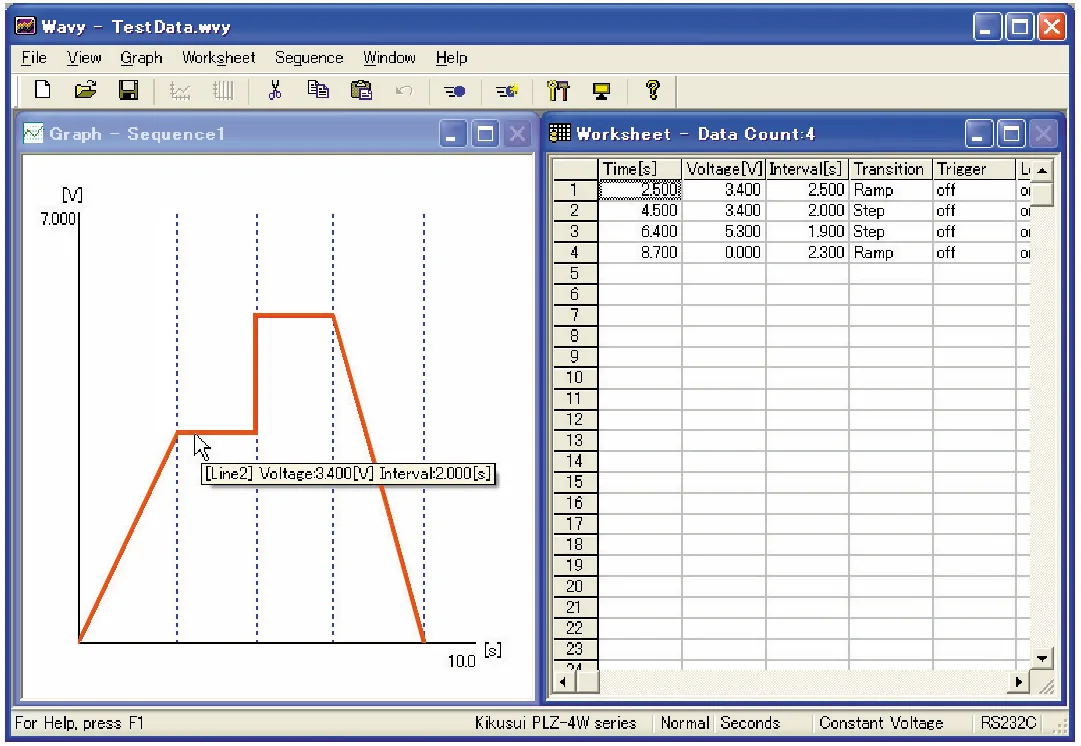

- Easily create and edit the test conditions data for sequence operation.
- Easily manage test conditions template using the function for saving test condition data files.
- The execution graph function displays the execution status as a cursor on the settings graph, and can be used to verify the progress of the execution sequence.

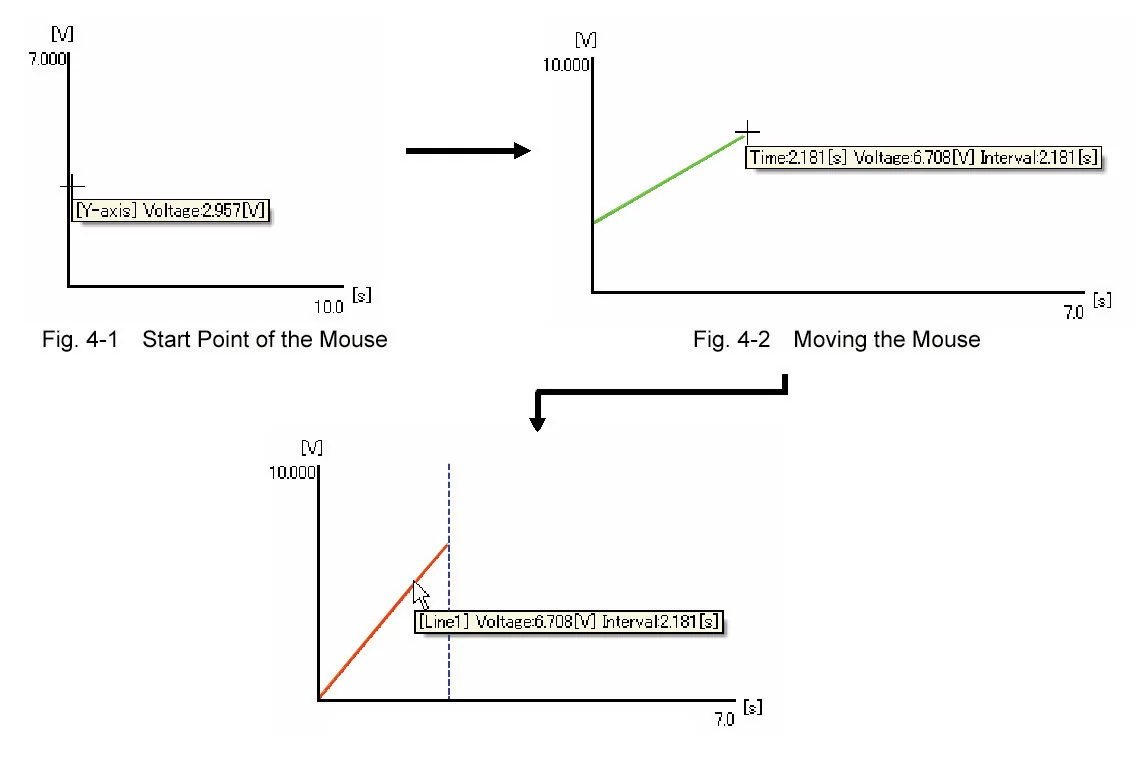

- The “monitor graph,” which plots monitor values during execution, allows intuitive observation of actual output. (Available from Ver. 4.0)
- The acquired monitor data can be saved as the test results.
| Image | SKU | Ver | 標準価格 | WEBかんたんお見積り | |
|---|---|---|---|---|---|
 | SD024-PAV (Wavy for PAV) | PAV Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
 | SD022-PBZ（Wavy for PBZ） | PBZ Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
 | SD027-PWR-01（Wavy for PWR-01） | PWR-01 Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
 | Wavy for PAS & PWR | PAS / PWR Series | Ver.5.0 | 60,000円 （税込：66,000円） | |
 | Wavy for PAT-T | PAT-T Series | Ver.5.1 | 60,000円 （税込：66,000円） | |
 | Wavy for PAG | PAG Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
 | SD013-PWX (Wavy for PWX) | PWX Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
 | SD025-PMX (Wavy for PMX) | PMX-A Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
 | SD032-PCR-WE/WEA（Wavy for PCR-WE & PCR-WEA） | PCR-WE/WE2 / PCR-WEA/WEA2 Series | Ver.6.1 | 60,000円 （税込：66,000円） | |
 | SD011-PCR-LE (Wavy for PCR-LE) | PCR-LE Series | Ver.5.5 | 60,000円 （税込：66,000円） | |
 | SD023-PLZ-5W(Wavy for PLZ-5W) | PLZ-5W Series | Ver.5.0 | 60,000円 （税込：66,000円） | |
 | Wavy for PLZ-4W | PLZ-4W/PLZ-4WL/PLZ-4WH Series | Ver.5.3 | 60,000円 （税込：66,000円） | |
 | Wavy for PLZ-U | PLZ-U Series | Ver.3.2 | 80,000円 （税込：88,000円） | |
 | Wavy for PCZ1000A | PCZ1000A | Ver.6.0 | 60,000円 （税込：66,000円） |
Line-up
| Image | SKU | Ver | 標準価格 | WEBかんたんお見積り | |
|---|---|---|---|---|---|
| SD024-PAV (Wavy for PAV) | PAV Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
| SD022-PBZ（Wavy for PBZ） | PBZ Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
| SD027-PWR-01（Wavy for PWR-01） | PWR-01 Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
| Wavy for PAS & PWR | PAS / PWR Series | Ver.5.0 | 60,000円 （税込：66,000円） | |
| Wavy for PAT-T | PAT-T Series | Ver.5.1 | 60,000円 （税込：66,000円） | |
| Wavy for PAG | PAG Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
| SD013-PWX (Wavy for PWX) | PWX Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
| SD025-PMX (Wavy for PMX) | PMX-A Series | Ver.6.0 | 60,000円 （税込：66,000円） | |
| SD032-PCR-WE/WEA（Wavy for PCR-WE & PCR-WEA） | PCR-WE/WE2 / PCR-WEA/WEA2 Series | Ver.6.1 | 60,000円 （税込：66,000円） | |
| SD011-PCR-LE (Wavy for PCR-LE) | PCR-LE Series | Ver.5.5 | 60,000円 （税込：66,000円） | |
| SD023-PLZ-5W(Wavy for PLZ-5W) | PLZ-5W Series | Ver.5.0 | 60,000円 （税込：66,000円） | |
| Wavy for PLZ-4W | PLZ-4W/PLZ-4WL/PLZ-4WH Series | Ver.5.3 | 60,000円 （税込：66,000円） | |
| Wavy for PLZ-U | PLZ-U Series | Ver.3.2 | 80,000円 （税込：88,000円） | |
| Wavy for PCZ1000A | PCZ1000A | Ver.6.0 | 60,000円 （税込：66,000円） |
Overview
Software to support automated testing of power supplies and electronic load devices
WAVY is sequence creation software that supports the power supplies and electronic loads from KIKUSUI Electronics Corp.
You can use WAVY to create and edit sequences easily with a mouse.
During sequence execution, you can also display execution points for visualization to monitor voltage, current, and other parameters and save them as a file.
Supported Models / Operating Environment
Wavy can control only one power supply and one electronic load. (Wavy for PLZ-U is one frame.)
Supported models
| Supported model name | Required Interface Environment | Model | Hardware Sequence *1 (number of steps) | Software Sequence*2 (number of steps) | Operation mode | Supported OS Windows Ver. | ||
|---|---|---|---|---|---|---|---|---|
| Japanese version | English version | |||||||
| DC Power Supply | PWR-01 Series | Not required (RS232C, USB, LAN, standard equipment) | SD027-PWR-01（Wavy for PWR-01） | ✓（64） | ✓（1024） | CV,CC | 10 / 11 | 10 / 11 |
| PAV Series | Not required (RS232C, USB as standard equipment / LAN option) | SD024-PAV（Wavy for PAV） | ✓（12） | ✓（1024） | CV,CC | 10 / 11 | 10 / 11 | |
| PWX Series | Not required (RS232C, USB, LAN, standard equipment) | SD013-PWX（Wavy for PWX） | − | ✓（1024） | CV,CC | 10 / 11 | 10 / 11 | |
| PAG Series | Not required (RS232C, RS485 as standard equipment / GPIB option) | Wavy for PAG | − | ✓（1024） | CV,CC | 7 / Vista / XP SP3 | 7 / Vista / XP SP3 | |
| PAT-T Series | Not required (RS232C standard equipment / USB, LAN,GPIB option) | Wavy for PAT-T | − | ✓（1024） | CV,CC | 8 / 7 | 8 / 7 | |
| PMX-A Series | Not required (RS232C, USB, LAN, standard equipment) | SD025-PMX（Wavy for PMX）※3 | − | ✓（1024） | CV,CC | 10 | 10 | |
| PBZ Series | Not required (RS232C, USB, LAN, standard equipment / LAN option) | SD022-PBZ（Wavy for PBZ） | ✓（1024） | − | CC,CV / DC,AC+DC | 10 / 11 | 10 / 11 | |
| AC Power Supply | PCR-WEA/WEA2 Series | Not required (RS232C, USB, LAN, standard equipment / GPIB option) | SD032-PCR-WE（Wavy for PCR-WE） | ✓（600） | − | CV(AC,DC,AC+DC) | 10 / 11 | 10 / 11 |
| SD019-PCR-LE/WE（Wavy Smart Grid Edition） | ✓（600） | − | CV(AC,DC,AC+DC) | 10 / 8.1 / 7 | 10 / 8.1 / 7 | |||
| SD020-PCR-LE/WE（Wavy Smart Grid Edition） | ✓（600） | − | CV(AC,DC,AC+DC) | 10 / 8.1 / 7 | 10 / 8.1 / 7 | |||
| PCR-LE Series | Not required (RS232C as standard equipment / USB, LAN, GPIB option) | SD011-PCR-LE（Wavy for PCR-LE） | ✓（600） | − | CV(AC,DC,AC+DC) | 10 / 11 | 10 / 11 | |
| SD019-PCR-LE/WE（Wavy Smart Grid Edition） | ✓（600） | − | CV(AC,DC,AC+DC) | 10 / 8.1 / 7 | 10 / 8.1 / 7 | |||
| SD020-PCR-LE/WE（Wavy Smart Grid Edition） | ✓（600） | − | CV(AC,DC,AC+DC) | 10 / 8.1 / 7 | 10 / 8.1 / 7 | |||
| PCR-M Series | Not required (USB, LAN as standard equipment / GPIB option) | Wavy for PCR-M | − | ✓（2048） | CV(AC,DC,AC+DC) | 8 / 7 | 8 / 7 | |
| Electronic Load | PLZ-5W Series / PLZ-5WH2 Series | Not required (RS232C, USB, LAN, standard equipment / GPIB option) | SD023-PLZ-5W（Wavy for PLZ-5W） | ✓（10000） | − | CV,CC,CR,CP | 10 / 11 | 10 / 11 |
| PLZ-4WL Series | Not required (RS232C, GPIB, USB standard) | Wavy for PLZ-4W | ✓ (Normal mode 256, Fast mode 1024) | − | CV,CC,CR,CP | 7 / Vista / XP SP2 / 2000 SP4 | 8 / 7 | |
| PLZ-U Series | Not required (GPIB, RS232C standard) | Wavy for PLZ-U | ✓（256） | ✓（1024） | CC,CV,CR,CC+CV,CR+CV | 8 / 7 | 8 / 7 | |
*1 Hardware Sequence” is to control the device by using the Sequence function in the device itself. *2 “Software Sequence” means that the device is controlled by Wavy (software) to perform Sequence control. *3 5-step limited free version (Wavy for PMX Free) is available. * Ver. as of December 2024
Operating environment
●SD027-PWR-01（Wavy for PWR-01）, SD024-PAV（Wavy for PAV）, SD013-PWX（Wavy for PWX）, SD032-PCR-WE（Wavy for PCR-WE）, SD011-PCR-LE（Wavy for PCR-LE）
| CPU | Core i5 or higher |
|---|---|
| CD-ROM | Required when setting up Wavy |
| mouse | required |
| monitor | 1024 x 768 or higher |
| memory | 4 GB or more |
| Hard Disk Capacity | At least 10 GB of available space |
●SD023-PLZ-5W（Wavy for PLZ-5W）, Wavy for PLZ-U
| CPU | Pentium 4HT or higher (recommended Core2 or higher) |
|---|---|
| CD-ROM | Required when setting up Wavy |
| mouse | required |
| monitor | 1024 x 768 or higher |
| memory | 4 GB or more |
| Hard Disk Capacity | At least 10 GB of available space |
●SD022-PBZ（Wavy for PBZ）
| CPU | Pentium 4HT or higher (recommended Core2 or higher) |
|---|---|
| CD-ROM | Required when setting up Wavy |
| mouse | required |
| monitor | 1024 x 768 or higher |
| memory | 4 GB or more |
| Hard Disk Capacity | At least 10 GB of available space |
●SD025-PMX（Wavy for PMX）, SD019-PCR-LE/WE, SD020-PCR-LE/WE, SD033-PLZ-5WH2（Wavy for PLZ-5WH2）
| CPU | Core i5 or higher |
|---|---|
| CD-ROM | Required when setting up Wavy |
| mouse | required |
| monitor | 1024 x 768 or higher |
| memory | 8 GB or more |
| Hard Disk Capacity | At least 20 GB of available space |
●Wavy for PAG、Wavy for PAT-T, Wavy for PCR-M, Wavy for PLZ-4W
| CPU | Pentium 4HT or higher (recommended Core2 or higher) |
|---|---|
| CD-ROM | Required when setting up Wavy |
| mouse | required |
| monitor | 1024 x 768 or higher |
| memory | 2 GB or more for Windows 7 and Windows Vista, 1 GB or more for Windows XP and Windows 2000 |
| Hard Disk Capacity | At least 10 GB of available space |
Interface environment
Supported interfaces: USB, RS232C, GPIB, LAN
In case of GPIB, the GPIB driver provided by the following companies must be installed and operational.
- NI-488.2 driver provided by National Instruments
- API-GPIB (98/PC) W95, NT Ver3.50 or higher for GPIB communication driver by CONTEC
- Japanese Windows version GPC-4301 Ver.1.10-06 or higher made by Interface Inc.
- KEYSIGHT Inc. 82357B USB/GPIB (supported by Wavy Ver. 5.0 or higher)
The following interfaces can also be used (verified)
- USB-CVRS9 (USB-RS232C) by Sanwa Supply Co.
- I-O DATA SB-RSAQ3R (USB-RS232C)
- REX-USB60F (USB-RS232C) by RATOC Systems, Inc.
- REX-USB60(USB-RS232C) by RATOC Systems, Inc.
- REX-USB220 (USB2.0 to GPIB Converter)
- REX-5052 (GPIB PC Card)
※We do not guarantee the combination (operation) of the PC and each interface. Please note that we do not guarantee the combination (operation) of the PC and each interface.
Notes.
- Cable for PC connection is not included. (For RS232C, please prepare a crossover cable.)
- RS232C control using a USB-RS232C converter may not work properly.
- Wavy does not support the hardware sequence chain and pause functions.
Trial Version Download
No functional limitations!
Free 3-week trial
This is a trial version of “Wavy” software to support sequence creation and execution of Kikusui Electronics power and load devices. This trial version can be tried out for 3 weeks from the time of startup (there are no functional limitations other than the usage period).
*The other Wavy trial versions will not be able to be run on the PC after 3 weeks have passed after running the Wavy trial version. If you are unable to run the application, please try running it with administrator privileges.
