Bidirectional High-Capacity DC Power Supply (CV/CC)
PXB Series
- High power density
- 20kW
- Input current
- 200 Vac (3-phase) or 400 Vac (3-phase)
- Rated output voltage
- 50V/250V/500V/1000V/1500V
Kikusui Electronics Products Page
DC Power Supply
High-Capacity Wide-Range DC Power Supply
PXT series
- Rated power
- 20kW
- Rated voltage
- 500V/1000V/1500V
- Maximum output wattage *
- 200kW
Compact, wide-range DC power supply
PWR-01 Series
- Rated power
- 400W/800W/1200W/2000W
- Rated voltage
- 40V/80V/240V/650V
- Maximum output wattage *
- 4kW

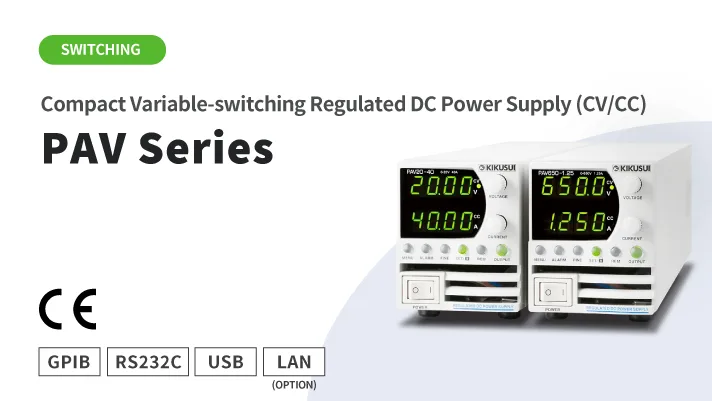

Compact Variable-switching Regulated DC Power Supply
PAV Series
- Rated power
- 200W/400W/600W/800W
- Rated voltage
- 10V/20V/36V/60V/100V/160V/320V/650V
- Maximum output wattage *
- 4.8kW
1U Multi Range Programmable DC Power Supply
PWX Series
- Rated power
- 750W/1500W
- Rated voltage
- 30V/80V/230V/650V
- Maximum output wattage *
- 3kW/6kW
Low-profile variable switching power supplies
PAG Series
- Rated power
- 750W/1500W/2400W/3300W/5000W
- Rated voltage
- 8V/10V/16V/20V/30V/40V/60V/80V
- Maximum output wattage *
- 20kW
High-efficiency, High-capacity Switching DC Power Supply (CV/CC)
PAT-T Series
- Rated power
- 4kW/8kW
- Rated voltage
- 20V/30V/40V/60V/80V/160V/250V/350V
- Maximum output wattage *
- 40kW
Large-capacity regulated DC power supply
PHP-T Series
- Rated power
- 120kW
- Rated voltage
- 60V/80V/160V/250V/350V/500V/600V
- Maximum output wattage *
- 3kW/6kW
Compact DC Power Supply
PMX-A Series
- Rated power
- 35W to 105W
- Rated voltage
- 18V/35V/70V/110V/250V/350V/500V
Compact Multi-Output DC Power Supply
PMX-Multi Series
- Rated power
- 192W to 222W
- Rated voltage
- 2CH : +32V +32V
3CH : +32V +32V +6V
4CH : +32V +32V +18V +18V
Compact Multi-Output DC Power Supply
PAN-A Series
- Rated power
- 160W to 1200W
- Rated voltage
- 16V/35V/60V/70V/110V/160V/250V/350V/600V
- Maximum output wattage *
- 3.6kW
Compact Multi-Output DC Power Supply
PAN-E Series
- Rated power
- 160W/175W
- Rated voltage
- 16V/35V
- Maximum output wattage *
- 525kW
Compact Multi-Output DC Power Supply
PAD-LA Series
- Rated power
- 1600W to 3750W
- Rated voltage
- 16V/35V/60V/72V/110V/250V
- Maximum output wattage *
- 11.2kW
Intelligent Bipolar Power Supply
PBZ Series
- Rated power
- 400W
- Rated voltage
- ±20V/±40V/±60V/±80V
* Maximum power by master-slave parallel operation

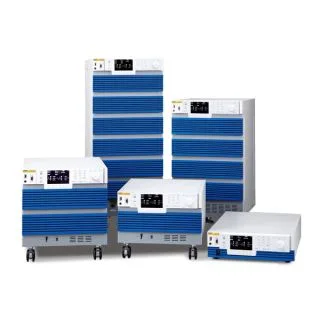

AC Power Supply
Ultra-Compact AC/DC Programmable Power Supply
PCR-WEA/WEA2 Series
- Features
- High efficiency / Compact / Light weight / High performance / Regenerative function
- Applications
- Aging test / Commercial line stabilization / Power fluctuation test / Grid interconnection test in new energy field
Compact AC Power Supply (CV/CF)
PCR-MA Series
- Features
- Compact / Lightweight / Desktop
- Applications
- Development / Service / Production
High-performance multifunctional AC Power Supplies
PCR-LE/ LE2 Series
- Features
- High performance / Linear
- Applications
- Power fluctuation testing / Grid interconnection testing in the new energy field
High-performance multifunctional AC Power Supplies
PCJ Series
- Features
- PWM inverter method / Capacity: 3-phase 30kVA to 200kVA
- Applications
- Power Conditioners / EV / Large Medical Equipment
* Maximum power by master-slave parallel operation
Safety Testers
TOS9303LC
- TOS9303LC
- AC/DC Hipot Tester with Insulation Resistance, Ground Bond, and Leakage Current Test
TOS9301PD
- TOS9301PD
- Hipot Tester with Insulation Resistance and Partial Discharge Test
Electronic Load
High-Capacity Regenerative Electronic Load
PXZ Series
- Input
- DC
- Input Rating (Max.)
- 20kW
- 1500V
- 120A
Multifunctional Electronic Load
PLZ-5W/5WZSeries
- Input
- DC
- Input Rating (Max.)
- 200W / 400W / 1200W
- 150V
- 240A
Multifunctional Electronic Load (CC/CV/CR/CP)
PLZ-5WH2 Series
- Input
- DC
- Input Rating (Max.)
- 1000W / 2000W / 4000W 12000W / 20000W
- 1000V
- 400A
Multifunctional Electronic Load (CC/CV/CR/CP)
PLZ-4WL Series
- Input
- DC
- Input Rating (Max.)
- 165W / 330W
- 30V
- 100A
Multifunctional Electronic Load (CC/CV/CR/CC+CV/CR+CV)
PLZ-U Series
- Input
- DC
- Input Rating (Max.)
- 75W / 150W
- 150V
- 30A
