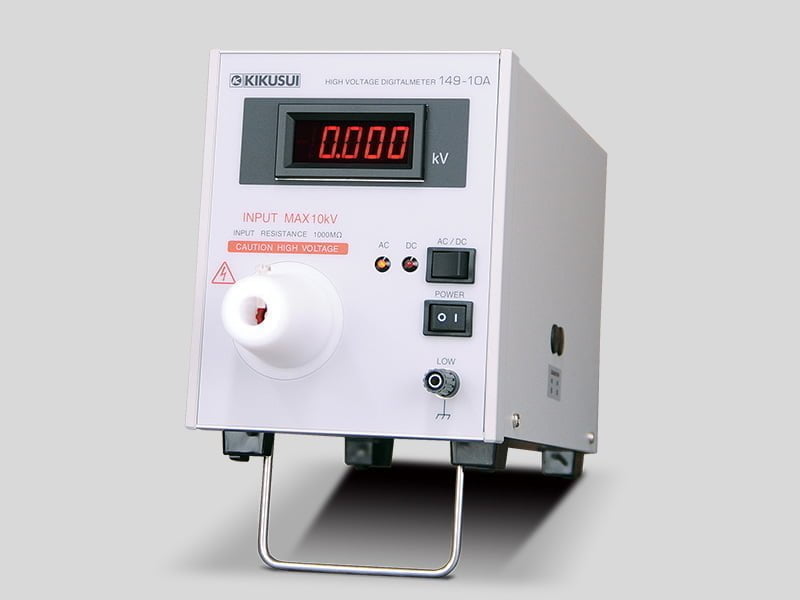

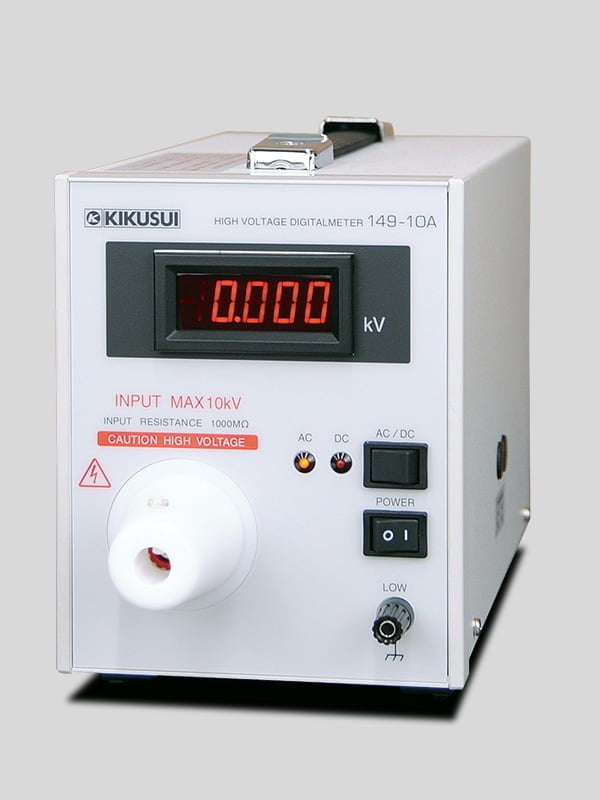

High Voltage Digital Voltmeter
149-10A
250,000円 （税込：275,000円）
- Measure high voltage (AC/DC) of 10kVMax
- 4 Large 1/2-digit LED Display
- High measurement accuracy and high input resistance
- Lightweight and compact design
- For calibration of Output voltage of Withstanding voltage testers and Insulation testers
カート機能が動くまでの
[yith_wcwl_add_to_wishlist]
Product Overview
From very low power to high power, applies to the wide range of power measurements!!
The 149-10A is a digital Voltmeter capable of measuring high voltages up to 10kV AC and DC with high accuracy. Its Input impedance: as high as 1000MΩ makes it suitable for measurement of various high-voltage circuits with high impedance. In addition, despite its small size and light weight, the high accuracy makes it easy to use as a portable calibrator.
Specifications
Specifications
Open in a new window
| DC voltage | Measurement range | 0.500 kV to 10.000 kV AC/DC |
|---|---|---|
| Accuracy | ±(0.5 % of reading +0.03 % of range) | |
| Maximum allowable input voltage | DC: ± 14 kV Pulse: 15 kV peak | |
| AC voltage | Measurement range | 0.500 kV to 10.000 kV AC/DC |
| Accuracy | ±(1 % of reading +0.0 5 % of range) | |
| Maximum allowable input voltage | 11 kV rms (Sine Wave 50 to 60 Hz) Pulse: 15 kV peak | |
| Display | 7-segment LEDs | |
| Type of voltmeter | Double integral type AC is average value response, true RMS calibration 3 samples/s | |
| Input resistance | 1000 MΩ ±2 % | |
| Power supply | 100 V ±10 %, 50 Hz/60 Hz | |
| Power consumption | approx. 10 VA | |
| Dimensions | External dimensions: 134W × 164H × 270D mm (5.28W × 6.46H × 10.63D in.) Maximum dimensions: 140W × 190H × 325D mm (5.51W × 7.48H × 12.80D in.) | |
| Weight | Approx. 3 kg (6.61 lb) | |
| Accessories | High-voltage test lead (TL05-TOS) × 1 High-voltage cable (HTL-2.5DH) × 1 | |
