High-rate Battery Tester

PFX2731S

PFX2731S

2,800,000 (税込:3,080,000

  • 10 ms continuous measurement (at the fastest setting)
  • Supports single-cell evaluation (can be set with C-rate)
  • Various charge/discharge modes (9 modes in total)
    ・Charge: CC, CC-CV, CP, CP-CV
    ・Discharge: CC, CC-CV, CP, CP-CV
    Pattern Charge/Discharge (CC(+CV), CP(+CV))
  • When an error is found, a built-in path switch immediately terminates the test
  • Four constant temperature chambers (produced by Espec) can be operated synchronously
  • A T-type thermocouple (optional) can be used to measure temperature
  • Simply connecting a LAN cable enables system construction
  • Enhanced Protection Functions

LAN LXIUKCA

What is myKIKUSUI?

カート機能が動くまでの
SKU: PFX2731S
  • Features
  • Applications

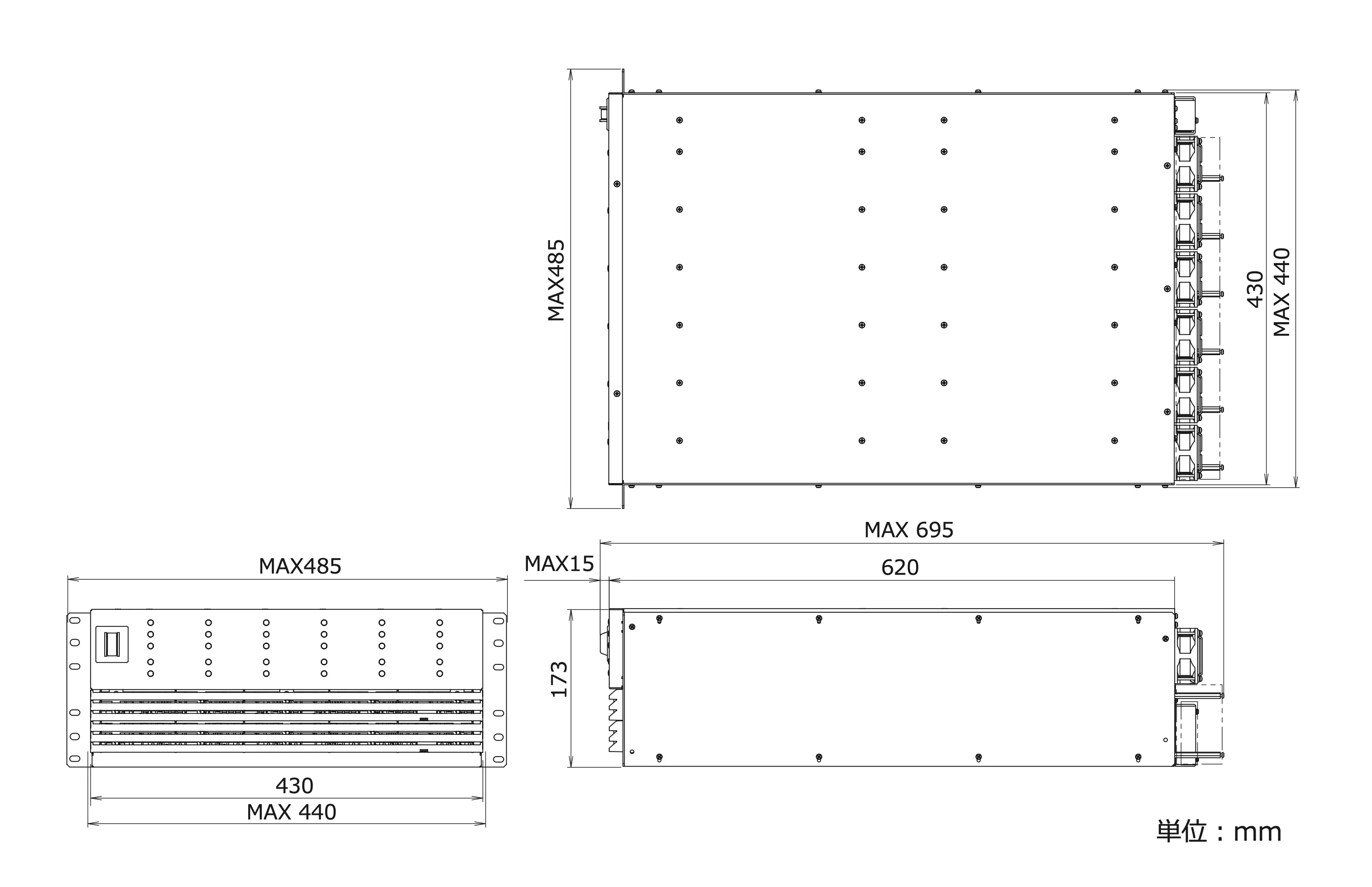

  • Dimensions
  • Options
  • Downloads

Features

The PFX2731S is a 6 V-20 A 6-channel battery tester that supports high-rate charge/discharge tests. It is operated with the application software BPChecker4000, which is exclusive to the PFX2731S. As one PC can operate up to 4 units (24 channels), one can construct a multi-channel charge/discharge system according to the required number of channels. In order to safely conduct long-term continuous testing, it also has 2-system independent protection functions for hardware and software, as well as various protection functions such as a connection confirmation function that detects incorrect wiring and integrated capacity protection.

System Configuration

Example of PFX2731S x 1 unit connected with LAN cable

Example of PFX2731S x 1 unit connected with LAN cable

The PFX2731S combines a control unit, a measurement unit, and a 6-channel 6 V-20 A charge/discharge unit into a single housing, allowing the creation of a compact charge/discharge system with up to 24 channels. Continuous data recording of 10 ms is possible for all channels due to the complete isolation and independent measurement functions of each channel.

PFX2731S x 4 units and constant temperature chamber Example of PFX2731S x 4 units and constant temperature chamber x 4 units connected via LAN cable

Example of PFX2731S x 4 units and constant temperature chamber x 4 units connected via LAN cable

*Either LAN or RS485 is used for the connection to the temperature chamber.A separate USB converter is needed for connection to a PC when using the RS485.

The Charge-Discharge mode for the diverse applications

CC Charge

It is only for constant current charging. It supports -dV detection, and -dT/dt detection by battery temperature.

CC Charge

CC Discharge

It is a general constant current discharge. Termination by capacity (Ah) is another option in addition to voltage and battery temperature.

CC Discharge

CC-CV Charge

This charge method switches from constant current to constant voltage automatically. It supports CV time and It current detection.

CC-CV Charge

CC-CV Discharge

This discharge method switches from constant current to constant voltage automatically. It supports CV time and It current detection.
Since it is capable of a deeper discharge than the CC discharge profile, it can be used for high-precision discharge capacity measurement.

CC-CV Discharge

CP Charge

It is only for constant power charging. The charging current may be limited by the limit current if the voltage is low.
Termination by capacity (Ah) is another option in addition to voltage and battery temperature.

CP Charge

CP Discharge

It is only for constant power recharging. The limit current can be used to limit the discharge current if the voltage drops and the discharge current increases.
Termination by capacity (Ah) is another option in addition to voltage and battery temperature.

CP Discharge

CP-CV Charge

This charge method switches from constant power to constant voltage automatically. It supports CV time and It current detection.

CP-CV Charge

CP-CV Discharge

This discharge method switches from constant power to constant voltage automatically. It supports CV time and It current detection.
Since it is capable of a deeper discharge than the CP discharge profile, it can be used for high-precision discharge capacity measurement.

CP-CV Discharge

Pattern Charge/Discharge (CC(+CV), CP(+CV))

A pattern is a series of steps. A maximum of 100,000 steps of CC or CP charge/discharge can be switched at high speed.
More advanced pattern control is supported because the CV voltage can be adjusted for each step.
Even if there are many steps, like in a standard test’s pattern charge/discharge and simulation pattern, Excel can be used to input the data.

Pattern Charge/Discharge (CC(+CV), CP(+CV))

100,000-step pattern charge/discharge function

The CC/CP step value can be set up to 100,000 steps. The time width can be set from 100 ms to 999.9 s per step. Furthermore, because the CV voltage can be set for each step, it is possible to handle complex charge/discharge tests with flexibility, including test patterns for a variety of standard tests and simulation patterns.

The C-rate setting function makes changing complex test conditions simple

To accommodate the diversifying requirements of charge/discharge tests, the C-rate setting function has been implemented. The charge/ discharge current value of the profile can be set with the C-rate value based on the nominal capacity input value. As a result, the test conditions can be applied to all profiles by simply changing the nominal capacity input value when testing different battery types with the same C-rate conditions and test pattern.

Test Condition Editor

Since the C-rate conversion is performed based on the nominal capacitance value, all test conditions can be changed simply by changing the nominal capacitance value.

Since the C-rate conversion is performed based on the nominal capacitance value

High-speed Data Sampling

The measurement of voltage and current is performed using a 24bit A/D converter. Continuous data collection of 10ms is possible for all channels. (The data recording time can be selected between 10 ms, 100 ms, and 1 s.) Setting the delta voltage and delta current also makes it possible to collect data even when the voltage or current exceeds the set value.

*Specifying a short time setting increases the amount of recorded data. The amount of data will be in the thousands to tens of thousands if the test time is long (several hours or longer). Be sure to set it carefully.

Enables high-precision measurement

Battery voltage and charge/discharge current are accurately detected by a built-in high-precision measurement circuit. (Voltage measurement: 100 μV resolution, current measurement: 100 μA resolution) (Current measurement: 100 μA resolution at 20A range, 10μA resolution at 2A range)

Enhanced Protection Functions

Protection functions like overcharge and overdischarge are built into the hardware and software. Additionally, the main unit has a built in path switch and a high-speed shutdown function that instantly terminates the test when an abnormality is detected.

● Main items and setting ranges of protection settings
Hardware
Hardware Overvoltage Protection (HOVP)0.000 V to 6.300 V
Hardware Undervoltage Protection (HUVP)-1.100Vto 5.700V
Hardware Overcurrent Protection (HOCP_Low Range)0.000 A to 2.100 A
Hardware Overcurrent Protection (HOCP_High Range)0.000 A to 21.000 A
Software
Software Overvoltage Protection (SOVP)0.000 V to 6.300 V
Software Undervoltage Protection (SUVP)-1.100 V to 5.700 V
Software Overcharge Ampere Protection (SOAH)1.0000 Ah to 2000.0000 Ah
Software Overtemperature Protection (SOTP)-100 °C to 400 °C
Charge Overcurrent Protection (Charge OCP_Low Range)0.000 A to 2.100 A
Charge Overcurrent Protection (Charge OCP_High Range)0.000 A to 21.000 A
Discharge Overcurrent Protection (DischargeOCP_Low Range)-2.100 A to 0.000 A
Discharge Overcurrent Protection (DischargeOCP_High Range)-21.000 A to 0.000 A
Over SOC Charge Rate (Over SOC)0.00 % to 150.00 %
Under SOC Charge Rate (Under SOC)0.00 % to 10.00 %


Resuming a test from any point

It is possible to resume the test from any point if it is interrupted due to a power outage, an alarm going off, or user action.

Resuming a test from any point

Fully Independent Operation for All Channels

Since each channel is fully independent, it can be controlled using various timings and test conditions.

Conditions for Various Charge/Discharge Cutoffs ※P6 充放電終止条件リスト参照

In addition to voltage, time and temperature, It current value and SOC can also be used to set the charge termination condition and discharge termination condition.

Easy Firmware Update

Downloading the firmware updater from our website will allow the PFX2731S’s firmware to be updated to the most recent version.

Application Software

SD035-PFX BPChecker4000

The BPChecker4000 allows the conditions for battery charge/discharge characteristic tests to be set, tests to be carried out, and the test results to be stored. BPChecker4000 consists of two programs, the Test Condition Editor and the Test Executive, which create and run tests respectively.

Test Condition Editor

All test conditions for charging and discharging are created and edited using this program. After creating a profile, a project is created by setting the sequence, general settings, etc. The test is run for each project by BPChecker4000.

[General project setting screen]

General project setting screen

[Software conceptual diagram]

Software conceptual diagram

● The battery temperature’s rest end conditions (Rest Temp) can be set
The rest time can be set to a specified time (fixed time) after charging ends, or a rest end condition based on the battery temperature can be set.
● Equipped with pause function
The pause function is one of the profile type options.
The test can be paused by using this feature.

Test Executive

The Test Condition Editor is used to create projects (test conditions), which are then assigned to each channel of the PFX2731S and put through charge/discharge tests by the program called Test Executive.

Test Executive1

Test Executive2

Operating environment of BPChecker4000

  • OS: Windows 11, Windows 10 Pro (64 bit)
  • Processor: Core i5 or higher
  • Memory: 8 GB or higher
  • Storage: 2-drive configuration is recommended Drive1 SSD, Free space: 150 GB or more (System Drive) Drive2 HDD, Free space: 540 GB or more (Data Drive)
  • Display: Resolution of 1280 x 1024 or higher, 19 inches or larger
  • Communication: Wired LAN (100Base-TX)
  • CD-ROM drive
  • KI-VISA

Specifications

  • 項目仕様
    出力数6ch(1 フレームあたり)
    アイソレーションch間、chーシャシ間
    充電電流範囲2Aレンジ0.0000A〜2.0000A
    20Aレンジ0.000A〜20.000A
    充電電圧範囲-1.000V〜6.000V
    放電電流範囲2Aレンジ0.0000A〜2.0000A
    20Aレンジ0.000A〜20.000A
    放電電圧範囲-1.000V〜6.000V
    • * 試料ケーブル5.5 mm2 5 m以下にて

  • 項目仕様
    Static
    定電流充放電2Aレンジ範囲0.0000A〜2.0000A
    確度 *1±(0.15% of setting + 1.0 mA)
    分解能0.1mA
    20Aレンジ範囲0.000A〜20.000A
    確度 *1±(0.15% of setting + 10.0 mA)
    分解能1mA
    定電圧充放電範囲-1.000V〜6.000V
    確度 *1±(0.05% of setting + 1.2 mV)
    分解能1mV
    定電力充放電 *22Aレンジ範囲-0.100W〜12.000W
    確度 *1 *3 ±(0.5% of setting + 0.01 W)
    分解能1mW
    20Aレンジ範囲0.10W〜120.00W
    確度 *1 *3 ±(0.5% of setting + 0.1 W)
    分解能10 mW
    Pattern
    定電流パターン2Aレンジ範囲-2.0000A〜2.0000 A(- 値は放電電流)
    確度 *1±(0.15% of setting + 1.0 mA)
    分解能0.1mA
    20Aレンジ範囲-20.000A〜20.000A
    確度 *1±(0.15% of setting + 10.0 mA)
    分解能1mA
    設定数100000step(最大ステップ数)
    範囲100ms〜999.9s(1 ステップの時間幅)
    分解能100ms
    切替時間 *4最大100ms
    定電力パターン *22Aレンジ範囲-12.000W〜12.000 W(-値は放電電流)
    確度 *1 *3 ±(0.5% of setting + 0.01W)
    分解能1mW
    20Aレンジ範囲-120.00W〜120.00W
    確度 *1 *3 ±(0.5% of setting + 0.1W)
    分解能10mW
    設定数100000step(最大ステップ数)
    範囲100ms〜999.9s(1 ステップの時間幅)
    分解能100ms
    切替時間 *4最大100ms
    • *1 周囲温度:18℃~28℃の範囲において。
    • *2 電池電圧を計測して、設定された電力値からソフトウェア演算により制御電流(定電流制御)を算出しています。
    • *3 電池電圧範囲1V~6V 以上において。
    • *4 充電→放電、放電→充電 の切替に必要な最大時間。

  •  仕様
    Static/ Pattern
    充放電
    電流計測
    範囲2Aレンジ-2.00000A〜2.00000A
    20Aレンジ-20.0000A〜20.0000A
    確度 *12Aレンジ±(0.15% of reading + 1.0 mA)
    20Aレンジ±(0.15% of reading + 10.0 mA)
    分解能2Aレンジ0.01mA
    20Aレンジ0.1mA
    電圧計測範囲-2.0000V〜7.0000V
    確度 *1±(0.05% of reading + 1.2 mV)
    分解能0.1mV
    入力抵抗10GΩ(-2V〜7Vの範囲において)
    電力計測範囲2Aレンジ-12.000W〜12.000W
    20Aレンジ-120.00W〜120.00W
    確度ソフトウェア演算(電圧計測 × 電流計測)
    分解能2Aレンジ1mW
    20Aレンジ10mW
    容量計測範囲 *2-100.0000Ah〜100.0000Ah
    確度ソフトウェア演算(電圧計測 × 電流計測)
    分解能 *20.1mAh
    時間 *3確度 *1 *4 ±10ppm(TYP 値)
    • *1 周囲温度:18℃~28℃において。
    • *2 2A/20Aレンジ共通。
    • *3 充放電時における経過時間に用いる信号源の確度。
    • *4 月差30秒相当。

  • 熱電対電圧(温度)計測部仕様
    計測端子数1ch毎
    熱電対種類T型
    範囲-100.0℃〜400.0℃ *1
    確度 *2 *3±1.5℃(TYP値)
    基準接点確度 *2 *4±0.7℃(TYP値)
    分解能0.1℃
    計測間隔2s
    • *1 範囲外では確度保証されません。熱電対の仕様により異なります(熱電対のクラス、線径、被覆により使用温度範囲が異なります)。
    • *2 周囲温度:18℃~28℃において。
    • *3 熱電対キャリブレータが発生する電圧を計測した場合(熱電対の許容差は含みません)。
    • *4 基準接点(冷接点)温度計の性能を示しています。

  • 充放電モード終止条件
    最大
    電圧
    最小
    電圧
    充電または放電開始
    からの定めた時間
    定電圧動作開始
    からの定めた時間
    定電圧動作開始
    からの定めた電流
    It Currentを
    下回った後の
    定めた時間
    -dV
    (マスク時間
    設定可)
    dT/dt
    (℃/min)
    積算電流
    (Ah)
    積算電力
    (Wh)
    最大
    SOC
    最小
    SOC
    パターン充放電
    開始からの時間
    ループ
    (繰り返し)
    回数
    電池
    温度
    定電流充電(CC)
    定電流−定電圧 充電(CC-CV)
    定電力充電(CP)
    定電力−定電圧充電(CP-CV)
    定電流放電(CC)
    定電流−定電圧 放電(CC-CV)
    定電力充電(CP)
    定電力−定電圧放電(CP-CV)
    パターン定電流充放電(Pattern)


  • 項目仕様
    過電圧(過充電)保護
    ソフトウェア
    OVP
    設定範囲0.000V〜6.300V
    分解能1mV
    設定確度*1電圧計測確度に依存
    動作時間最大50ms
    ハードウェア
    OVP *2
    設定範囲0.0V〜6.6V
    分解能100mV
    設定誤差*1±0.5% of rating
    動作時間10ms(TYP 値)過電圧の検出から出力遮断まで
    低電圧(過放電)保護
    ソフトウェア
    UVP
    設定範囲-1.100V〜5.700V
    分解能1mV
    設定確度*1電圧計測確度に依存
    動作時間最大50ms
    ハードウェア
    UVP *2
    設定範囲-1.1V〜6.0V
    分解能100mV
    設定誤差*1±0.5% of rating
    動作時間10ms(TYP 値)低電圧の検出から出力遮断まで
    過電流保護
    ソフトウェア
    OCP
    設定範囲充電2Aレンジ0.000A〜2.100A
    20Aレンジ0.000A〜21.000A
    放電2Aレンジ0.000A〜2.100A
    20Aレンジ0.000A〜21.000A
    分解能*31mA
    設定確度*1電流計測確度に依存
    動作時間最大50ms
    遅延時間0ms〜検出遅延タイマーの時間設定
    ハードウェア
    OCP *2
    設定範囲充電/
    放電
    2Aレンジ0.0A〜2.2A
    20Aレンジ0.0A〜22.0A
    分解能*3100mA
    設定誤差*1±0.5% of rating
    動作時間10ms(TYP 値)過電流の検出から出力オフまで
    過充放電容量保護
    ソフトウェア
    OAH *4
    設定範囲1.0000Ah〜2000.0000Ah
    設定確度*1電流計測確度とメインCPU のクロック確度に依存
    分解能0.1mAh
    温度(過温度)保護
    ソフトウェア
    OTP
    設定範囲-100℃〜400℃
    設定確度*1温度計測確度に依存
    分解能1℃
    • *1 周囲温度:18℃~28℃において
    • *2設定値は充放電ユニット内で保持されます。
      BPC4000 によって試験が実行されていない状態でも常時試料を保護します。
    • *3 2Aレンジ/20Aレンジ共通
    • *4 公称容量対して、設定された百分率を掛けた値をアプリケーションソフトが計算して容量で設定します。

  • 項目仕様
    公称入力定格200Vac〜240Vac、50Hz/60Hz、単相
    入力電圧範囲180Vac〜250Vac
    最大消費電力最大1870VA1フレーム(6 チャンネル)定格充電時
    環境条件動作温度0℃〜40℃
    湿度範囲20%rh〜85%rh(結露なし)
    保存温度-10℃〜60℃
    湿度範囲0%rh〜90%rh(結露なし)
    動作環境屋内、過電圧カテゴリII
    高度2000mまで
    対接地電圧入出力端子⇔シャシ最大±50V
    絶縁抵抗一次⇔シャシ500Vdc、30MΩ以上、70%rh以下
    一次⇔入出力端子*1500Vdc、30MΩ以上、70%rh以下
    入出力端子⇔シャシ*150Vdc、30MΩ以上、70%rh以下
    耐電圧一次⇔シャシ1500Vac、1 分間にて異常なし
    一次⇔入出力端子*11500Vac、1 分間にて異常なし
    外形寸法(最大寸)440(482)W×173 H×620(695)Dmm
    質量約34kg
    付属品電源コード×1、後面パネルカバーセット×1、温度測定ボックス×6、温度測定用ケーブル×6、TRIPコネクタ×1、シグナルI/Oコネクタ×1、LANケーブル×1、重量物警告シール×1、取扱説明書(和・英)×1、安全のために×1

    ※ケーブルセットは付属されておりません。
     オプションのケーブルセットを本体と合わせてご購入ください。
    電磁適合性*2 *3以下の指令および規格の要求事項に適合
    EMC 指令2014/30/EU *3
    EN 61326-1 (Class A*4
    EN 55011 (Class A*4、Group 1*5
    EN 61000-3-2
    EN 61000-3-3

    適用条件
    本製品に接続するケーブルおよび電線は、
    すべて5m未満を使用
    安全性*2以下の指令および規格の要求事項に適合
    低電圧指令 2014/35/EU *3
    EN 61010-1 (Class I*6, 汚染度2*7
    EN 61010-2-030
    • *1 入出力端子とは試料に接続する充放電端子、電圧センシング端子、外部信号入出力を示します。
    • *2 特注品、改造品には適用されません。
    • *3 本体にCE マーキング/ UKCA マーキングの表示のある製品に対してのみ
    • *4 本製品はClass A 機器です。工業環境での使用が意図されています。 本製品を住宅地区で使用すると干渉の原因となることがあります。 そのような場合には、ラジオやテレビ放送の受信干渉を防ぐために、ユーザによる電磁放射を減少させる特別な措置が必要となることがあります。
    • *5 本製品はGroup 1 機器です。本製品は、材料処理または検査/分析のために、電磁放射、誘導および/または静電結合の形で意図的に無線周波エネルギーを発生/使用しません。
    • *6 本製品はClass I 機器です。本製品の保護導体端子を必ず接地してください。 正しく接地されていない場合、安全性は保証されません。
    • *7 汚染とは、絶縁耐力または表面抵抗率の低下を引き起こし得る異物(固体、液体、または気体)が付着した状態です。汚染度2 は、非導電性の汚染だけが存在し、ときどき、結露によって一時的に導電性になり得る状態を想定しています。

Unless specified otherwise, the specifications are for the following settings and conditions.

  • The product is warmed up for at least 30 minutes.

The used terminology is as follows:

  • TYP: These are typical values that are representative of situations where the product operates in an environment with an ambient temperature of 23 °C (73.4 °F). These values do not guarantee the performance of this product.
  • setting: Indicates a set value.
  • reading: Indicates a readout value.
  • rating: Indicates a rated value.
  • Static: General term to indicate CC charge, CC – CV charge, CC discharge, CC – CV discharge, CP discharge, and CP – CV discharge.
  • Pattern: General term to indicate pattern charge/discharge.

C-rate entry is supported.

  • Individual CC values, pattern charge/discharge step current, limit current, current capacity of end condition/It cutoff current can be set using a C-rate.
  • C-rate calculation specifications The nominal capacity setting value is assumed to be 1C.
    C-rate setting range: 0.001 to 99.999 (the range is common.)
    The conversion result from a C-rate to a current/capacity value is rounded to the nearest con- trol resolution.

Outline Drawing(mm)

Outline Drawing

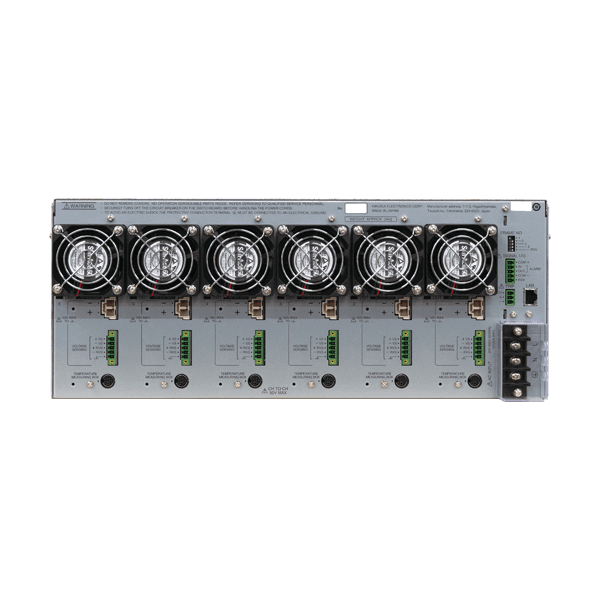

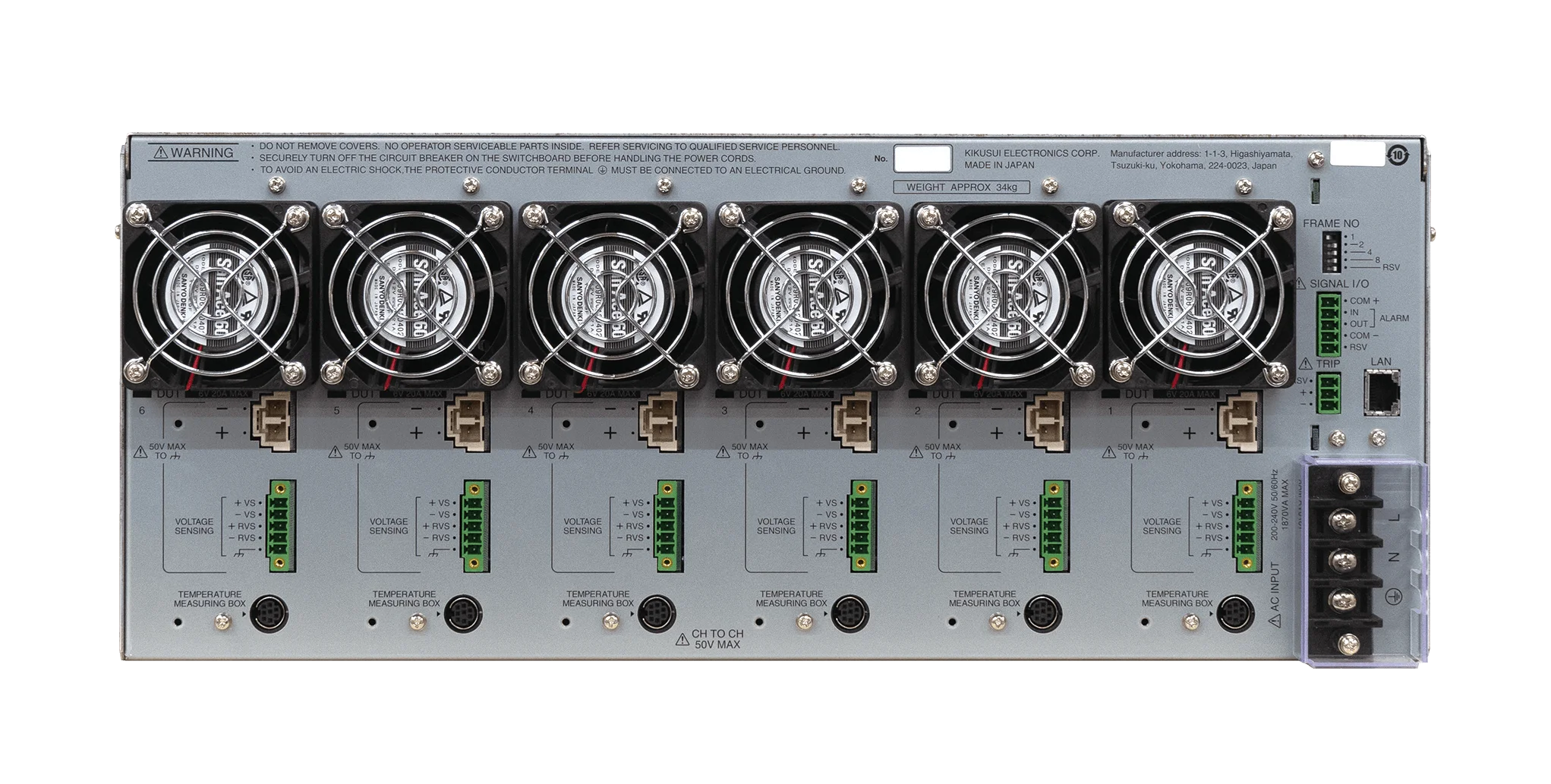

Rear Panel

Rear Panel

Downloads

Product Catalog

Operation Manuals

PFX2731S
Icon

    Please feel free to contact us with any questions or concerns.

    Download a Product Catalog View List
    Request a Quotation Contact Us
    close

    Search
