Insulation Resistance Test

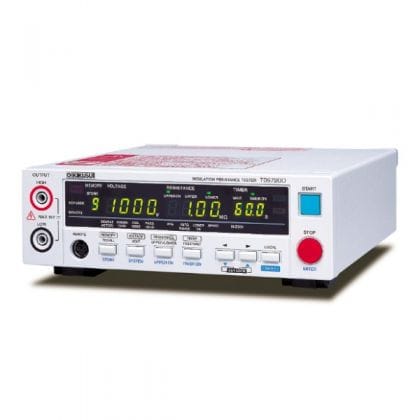

TOS7200

TOS7200

110,000 (税込:121,000

  • Output voltage setting range: -25 to -1000V
  • Resistance measurement range: 0.01MΩ to 5000MΩ
  • Provided with the discharge function
  • Equipped with the window comparator
  • Hold function (which holds the measured resistance at the end of testing while PASS judgment is being output)
  • Provided with the timer function
  • Rear output terminals
  • Measured-value monitoring terminals
  • Equipped with the panel memory (enabling 10 different settings to be stored)
  • Equipped with the SIGNAL I/O connector and remote control terminal
  • Equipped with the RS232C interface as standard

カート機能が動くまでの
SKU: TOS7200

Overview

The TOS7200 is an insulation resistance tester available for a wide range of various electric and electronic components, as well as electric and electronic equipment. The output voltage can be set at desired value in the range of – 25V to -1,000V with a resolution of 1V. (conforms with the output characteristics of the JIS C 1302-2002).

As it is fitted with a window comparator and timer function, the tester is capable of efficiently conducting insulation resistance tests based on various safety standards. In addition, this product is equipped with panel memory as standard feature, which can be recalled by remote control, SIGNAL I/O connector, and the RS-232C interface for easy automatic testing system construction.

ZOOM
Test voltage Resistance measurement range
25V 0.03MΩ to 250MΩ
50V 0.05MΩ to 500MΩ
100V 0.10MΩ to 1000MΩ
125V 0.13MΩ to 1250MΩ
250V 0.25MΩ to 2500MΩ
500V 0.50MΩ to 5000MΩ
1000V 1.00MΩ to 5000MΩ

Specifications

Basic specifications
ZOOM

Output section

Output voltage range   -25 V to -1000 V
Resolution 1V
Setting accuracy ±(1.5% of setting + 2V)
Max. rated load 1W(−1000Vdc/1mA)
Max. rated current 1mA
Output terminal Output type Floating
Isolation voltage ±1000 VDC
Ripple 1 kV no load 2 Vp-p or less
Max. rated load 10 Vp-p or less
Short-circuit current 12 mA or less
Output rise time 50 ms or less (10 % to 90 %) [no load]
Discharge feature Forced discharge at the end of test (discharge resistance: 25 kΩ)

Voltmeter

Measurement range 0 V to -1200 V
Resolution 1V
Accuracy ±(1% of reading + 1V)

Resistance meter

Measurement range 0.01 MΩ to 5000 MΩ (In the range of over 100 nA to a maximum rated current of 1 mA)
Display R < 10.0 MΩ:□.□□MΩ
10.0MΩ≦ R < 100.0MΩ:□□.□MΩ
100.0MΩ ≦ R < 1000MΩ:□□□MΩ
1000MΩ ≦ R ≦ 5000MΩ:□□□□MΩ
R = measured insulation resistance
Accuracy 100nA < i ≦ 200nA:±(10% of reading)
200nA < i ≦ 1μA:±(5% of reading)
1μA < i ≦1mA:±(2% of reading)
[In the humidity range of 20 %rh to 70 %rh (no condensation), with no disturbance such as swinging of the test leadwire]
i =measured output-voltage value/measured resistance value
Measurement range   The current measurement range is selectable between AUTO and FIX.
AUTO Automatically changes the current measurement range according to the measured current value.
FIX Fixes the current measurement range based on the output voltage set value and LOWER set value (in UPPER OFF status).
Holding function The resistance measured at the end of test is held during the PASS interval

Judgment feature

Judgment method and judgment operation
Judgment Judgment method Display Buzzer SIGNAL I/O
UPPER FAIL If a resistance value equal or higher than the upper resistance is detected, the tester shuts off the output and returns an UPPER FAIL judgment. FAIL LED lights.
UPPER LED lights.
ON Outputs an U FAIL signal
LOWER FAIL If a resistance value equal or less than the lower resistance is detected, the tester shuts off the output and returns a LOWER FAIL judgment. Note that no judgment is made within the judgment wait time (WAIT TIME) after the start of the test. FAIL LED lights.
LOWER LED lights.
ON Outputs a L FAIL signal
PASS If no abnormality is found when the set test time has elapsed, the tester shuts off the output and returns a PASS judgment. PASS LED lights. ON Outputs a PASS signal
  • A PASS signal is output for approx. 200 ms. However, if the PASS HOLD function is set to “HOLD,” the signal is continuously output until a STOP signal is input.
  • An UPPER FAIL or LOWER FAIL signal is continuously output until a STOP signal is input.
  • The FAIL and PASS buzzer volumes are adjustable. However, they cannot be adjusted individually, as they are set in common.
Setting range for the upper reference value (UPPER) 0.01 MΩ to 5000 MΩ [In the range of the maximum rated current or less]
Setting range for the lower reference value (LOWER) 0.01 MΩ to 5000 MΩ [In the range of the maximum rated current or less]
Judgment accuracy
For both UPPER and LOWER
Judgement current = test voltage /(UPPER,LOWER) 100nA ≦ i ≦ 200 nA 200 nA < i ≦ 1μA 1μA < i ≦ 1mA
UPPER、LOWER 0.01 ≦ R < 10.0MΩ ±(2% of setting + 3digit)
10.0 ≦ R < 50.0MΩ ±(5% of setting + 5digit) ±(2% of setting + 3digit)
50.0 ≦ R < 100MΩ ±(5% of setting + 5digit) ±(2% of setting + 3digit)
100 MΩ ≦ R < 200MΩ ±(10% of setting + 5digit) ±(5% of setting + 5digit) ±(2% of setting + 3digit)
200 MΩ ≦ R < 500MΩ ±(10% of setting + 5digit) ±(5% of setting + 5digit) ±(2% of setting + 3digit)
500 MΩ ≦ R < 1000MΩ ±(10% of setting + 5digit) ±(5% of setting + 5digit) ±(2% of setting + 3digit)
1000MΩ ≦ R < 2000MΩ ±(10% of setting + 50digit) ±(5% of setting + 50digit)
2000MΩ ≦ R < 5000MΩ ±(10% of setting + 100digit) ±(5% of setting + 50digit)
[In the humidity range of 20 %rh to 70 %rh (no condensation), with no disturbance such as swinging of the test leadwire]
The lower judgment requires a test duration of 0.5 s or more after the wait time has expired. It also requires a wait time of 1.0 s or more for a lower judgment of 200 nA or less.]

Time

Setting range for the test duration (TEST TIME) 0.5 s to 999 s (TIMER OFF function provided)
Setting range for the wait time (WAIT TIME) 0.3 s to 10 s [TEST TIME > WAIT TIME]
Accuracy ±(100ppm + 20ms)
Interface and other functions
ZOOM

REMOTE

6-pin mini-DIN connector on the front panel The optional remote controller RC01-TOS or RC02-TOS is connected to remotely control starting/stopping of a test (note that a DIN-mini DIN adapter is required).

SIGNAL I/O D-SUB 25-pin connector on the rear panel

No. Signal name I/O Description
1 PM0 I LSB*1 Pin Configuration for the SIGNAL I/O Connector]
2 PM1 I *1
3 PM2 I *1
4 PM3 I MSB*1
5 N.C
6 N.C
7 N.C
8 N.C
9 STB I Input terminal for the strobe signal of the panel memory
10 N.C
11 N.C
12 N.C
13 COM   Circuit common (chassis potential)
14 H.V ON O ON during a test or while a voltage remains between the output terminals
15 TEST O ON during a test
16 PASS O ON for approx. 0.2 seconds when PASS judgment is made, or continuously ON while PASS HOLD is activated
17 U FAIL O Continuously ON if an insulation resistance equal to or exceed-ing the upper resistance is detected, resulting in FAIL judgment
18 L FAIL O Continuously ON if an insulation resistance equal to or falling below the lower resistance is detected, resulting in FAIL judg-ment
19 READY O ON during standby
20 N.C
21 START I Start signal input terminal
22 STOP I Stop signal input terminal
23 ENABLE I Remote control enable signal input terminal
24 N.C
25 COM   Circuit common (chassis potential)
Input specifications High-level input voltage 11 V to 15 V All input signals are active Low controlled. The input terminal is pulled up to +12 V using a resistor. Opening the input terminal is equivalent to inputting a high-level signal.
Low-level input voltage 0 V to 4 V
Low-level input current -5 mA maximum
Input time width 5 ms minimum
Output specifications Output method Open collector output (4.5 V to 30 V DC)
Output withstanding voltage 30 V DC
Output saturation voltage Approx. 1.1 V (at 25°C)
Maximum output current 400 mA (TOTAL)

* 1-digit BCD active LOW input. Panel memory’s selection signal input terminal

ANALOG OUT

Outputs a logarithmically compressed voltage corresponding to the measured resistance value

Vo=log(1+Rx/1MΩ)
where Rx = measured resistance value (1 MΩ: 0.30 V; 10 MΩ: 1.04 V; 100 MΩ: 2.00 V; 1000 MΩ: 3.00 V; 10000 MΩ or more: 4.00 V). Output impedance: 1 kΩ
Output impedance: 1 kΩ
COM Analog output-circuit common
Accuracy ±(2 % of full scale)

RS232C

D-SUB 9-pin connector on the rear panel (compliant with EIA-232-D)
All functions other than the POWER switch and KEYLOCK function are remotely controllable

Baud rate 9600 bps / 19200 bps / 38400 bps (data: 8 bits; parity: none; stop bit: 2 bits fixed)

Display

7-segment LED, 4-digit voltage display, 4-digit insulation resistance display, and 3-digit time display

Memory function

A maximum of 10 types of test conditions can be stored in memory.

Backup battery life

3 years or more (at 25 °C)

TEST MODE

MOMENTARY A test is conducted only when the START switch is pressed.
FAIL MODE Disables cancellation of FAIL judgment using a stop signal via remote control.
DOUBLE ACTION Starts a test only when the STOP switch is pressed and the START switch is pressed within approximately a half-second.
PASS HOLD Allows the time of holding PASS judgment to be set to 0.2 s or HOLD.

KEYLOCK

Places the tester in a state in which no keystroke other than the START/STOP switch is accepted.

General specifications
ZOOM

Environment

Installation location Indoors and at altitudes up to 2000 m
Warranty range Temperature 5 °C to 35 °C (41 °F to 95 °F)
Humidity 20 %rh to 80 %rh (no condensation)
Operating range Temperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity 20 %rh to 80 %rh (no condensation)
Storage range Temperature -20 °C to 70 °C (-4 °F to 158 °F)
Humidity 90 %rh or less (no condensation)

Input voltage range

Nominal voltage range (allowable voltage range) 100 V to 240 V AC (85 V to 250 V AC)
Power consumption at rated load 30 VA maximum
Allowable frequency range 47 Hz to 63 Hz
Insulation resistance 30 MΩ or more (500 V DC) [AC LINE to chassis]
Withstanding voltage 1390 V AC for 2 seconds, 10 mA or less [AC LINE to chassis]
Earth continuity 25 A AC / 0.1 Ω or less

Safety *1

Conforms to the requirements of the following standard.
EN 61010-1 (Class I*2 , Pollution degree 2*3 )

*1 Not applicable to custom order models. *2 This instrument is a Class I equipment. Be sure to ground the protective conductor terminal of the instrument. The safety of the instrument is not guaranteed unless the instrument is grounded properly. *3. Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only non-conductive pollution will occur except for an occasional temporary conductivity caused by condensation

Dimensions (maximum) /Weight

215[8.46 inch] W × 66[2.60 inch] (85[3.35 inch]) H × 230[9.06 inch] (260[10.24 inch]) D mm / Approx. 2 kg (Approx.4.41 lbs)

Accessories

AC power cable: 1 pc. / TL08-TOS high-voltage test leadwires (1.5 m): 1 set / Setup guide: 1 pc. / Quick reference: English: 1pc., Japanese: 1pc. / Safety information: 1 pc. / CD-ROM: 1 pc.
