SKU: SD035-PFX
  • Features
  • Downloads

Features

Application Software SD035-PFX BPChecker4000

The BPChecker4000 allows the conditions for battery charge/discharge characteristic tests to be set, tests to be carried out, and the test results to be stored. BPChecker4000 consists of two programs, the Test Condition Editor and the Test Executive, which create and run tests respectively.

Test Condition Editor

SD035-PFX-01

All test conditions for charging and discharging are created and edited using this program. After creating a profile, a project is created by setting the sequence, general settings, etc. The test is run for each project by BPChecker4000.

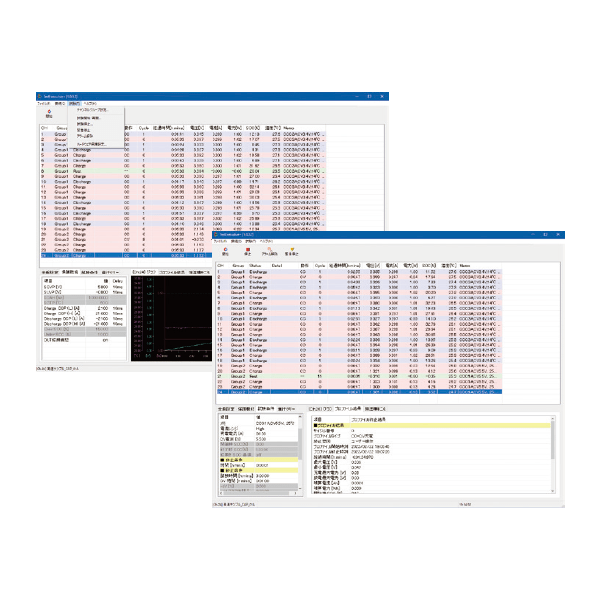

Test Executive

The Test Condition Editor is used to create projects (test conditions), which are then assigned to each channel of the PFX2731S and put through charge/discharge tests by the program called Test Executive.

充放電試験
Test Executive

Operating environment of BPChecker4000

  • OS: Windows 11, Windows 10 Pro (64 bit)
  • Processor: Core i5 or higher
  • Memory: 8 GB or higher
  • Storage: 2-drive configuration is recommended
    Drive1 SSD, Free space: 150 GB or more (System Drive)
    Drive2 HDD, Free space: 540 GB or more (Data Drive)
  • Display: Resolution of 1280 x 1024 or higher, 19 inches or larger
  • Communication: Wired LAN (100Base-TX)
  • CD-ROM drive
  • KI-VISA

Downloads

Operation Manuals

SD035-PFX_BPC4000
