DC Power Supply PAN-A Series

High-Reliability DC Power Supplies

PAN-A Series

PAN-A

138,000円 – 480,000円

0 V to 600 V DC, 0 A to 50 A, 28 models
Low noise and highly stable output achieved using the series regulation system
Basic DC power supplies, superior for general-purpose use.

*PAN350-3.5A and PAN600-2A are discontinued and only available while supplies last.

SKU	Output CV [V]	Output CC [A]			標準価格
PAN16-10A	16V	10	0.5	2	139,000円（税込：152,900円）
PAN16-18A	16V	18	0.5	5	188,000円（税込：206,800円）
PAN16-30A	16V	30	0.5	5	242,000円（税込：266,200円）
PAN16-50A	16V	50	0.5	10	414,000円（税込：455,400円）
PAN35-5A	35V	5	0.5	1	139,000円（税込：152,900円）
PAN35-10A	35V	10	0.5	2	184,000円（税込：202,400円）
PAN35-20A	35V	20	0.5	3	219,000円（税込：240,900円）
PAN35-30A	35V	30	0.5	5	380,000円（税込：418,000円）
PAN60-3A	60V	3	0.5	1	144,000円（税込：158,400円）
PAN60-6A	60V	6	0.5	2	184,000円（税込：202,400円）
PAN60-10A	60V	10	0.5	3	219,000円（税込：240,900円）
PAN60-20A	60V	20	0.5	2	380,000円（税込：418,000円）
PAN70-2.5A	70V	2.5	0.5	1	146,000円（税込：160,600円）
PAN70-5A	70V	5	0.5	2	180,000円（税込：198,000円）
PAN70-8A	70V	8	1	2	238,000円（税込：261,800円）
PAN70-15A	70V	15	1	5	397,000円（税込：436,700円）
PAN110-1.5A	110V	1.5	0.5	1	138,000円（税込：151,800円）
PAN110-3A	110V	3	0.5	1	190,000円（税込：209,000円）
PAN110-5A	110V	5	1	1	230,000円（税込：253,000円）
PAN110-10A	110V	10	1	2	368,000円（税込：404,800円）
PAN160-1A	160V	1	1	1	150,000円（税込：165,000円）
PAN160-2A	160V	2	1	1	219,000円（税込：240,900円）
PAN160-3.5A	160V	3.5	1	1	253,000円（税込：278,300円）
PAN160-7A	160V	7	1	2	403,000円（税込：443,300円）
PAN250-2.5A	250V	2.5	5	2	253,000円（税込：278,300円）
PAN250-4.5A	250V	4.5	5	2	414,000円（税込：455,400円）
PAN350-3.5A	350V	3.5	1	2	480,000円（税込：528,000円）
PAN600-2A	600V	2	1	0.5	480,000円（税込：528,000円）

SKU: PAN-A

Line-up

SKU	Output CV [V]	Output CC [A]			標準価格
PAN16-10A	16V	10	0.5	2	139,000円（税込：152,900円）
PAN16-18A	16V	18	0.5	5	188,000円（税込：206,800円）
PAN16-30A	16V	30	0.5	5	242,000円（税込：266,200円）
PAN16-50A	16V	50	0.5	10	414,000円（税込：455,400円）
PAN35-5A	35V	5	0.5	1	139,000円（税込：152,900円）
PAN35-10A	35V	10	0.5	2	184,000円（税込：202,400円）
PAN35-20A	35V	20	0.5	3	219,000円（税込：240,900円）
PAN35-30A	35V	30	0.5	5	380,000円（税込：418,000円）
PAN60-3A	60V	3	0.5	1	144,000円（税込：158,400円）
PAN60-6A	60V	6	0.5	2	184,000円（税込：202,400円）
PAN60-10A	60V	10	0.5	3	219,000円（税込：240,900円）
PAN60-20A	60V	20	0.5	2	380,000円（税込：418,000円）
PAN70-2.5A	70V	2.5	0.5	1	146,000円（税込：160,600円）
PAN70-5A	70V	5	0.5	2	180,000円（税込：198,000円）
PAN70-8A	70V	8	1	2	238,000円（税込：261,800円）
PAN70-15A	70V	15	1	5	397,000円（税込：436,700円）
PAN110-1.5A	110V	1.5	0.5	1	138,000円（税込：151,800円）
PAN110-3A	110V	3	0.5	1	190,000円（税込：209,000円）
PAN110-5A	110V	5	1	1	230,000円（税込：253,000円）
PAN110-10A	110V	10	1	2	368,000円（税込：404,800円）
PAN160-1A	160V	1	1	1	150,000円（税込：165,000円）
PAN160-2A	160V	2	1	1	219,000円（税込：240,900円）
PAN160-3.5A	160V	3.5	1	1	253,000円（税込：278,300円）
PAN160-7A	160V	7	1	2	403,000円（税込：443,300円）
PAN250-2.5A	250V	2.5	5	2	253,000円（税込：278,300円）
PAN250-4.5A	250V	4.5	5	2	414,000円（税込：455,400円）
PAN350-3.5A	350V	3.5	1	2	480,000円（税込：528,000円）
PAN600-2A	600V	2	1	0.5	480,000円（税込：528,000円）

Specifications

The specification table below shows typical models. For other detailed specifications, please refer to the instruction manual.

Output: 16V

ZOOM

Model		PAN16-10A	PAN16-18A	PAN16-30A	PAN16-50A*1
Output	CV(V)	0 to 16
Output	CC(A)	0 to 10	0 to 18	0 to 30	0 to 50
Ripple	CV(mVrms)	0.5
Ripple	CC(mArms)	2	5		10
Line regulation	CV(mV)	0.005%+2	0.005%+1
Line regulation	CC(mA)	1		3
Load regulation	CV(mV)	0.005%+2	0.005%+1	0.005%+2
Load regulation	CC(mA)	3			5
Dimensions	Type *2	0	Ⅰ₂	Ⅰ₃	Ⅱ
Weight	kg(Approx.)	11	17	23	36
Input	Voltage [ AC ] (V)	100
Input	Power consumption(Approx. kVA)	0.4	0.8	1.1	1.6

*1 PAN-16-50A does not have a front output terminal. *2 Dimensions (Type) 175W Type (Type 0): 106 (115) W x 140 (175) H x 400 (470) Dmm, 350W Type (Type I₂): 210 (235) W x 140 (160) H x 350 (425) Dmm, 700W Type (Type I₃): 210 (235) W x 140 (160) H x 400 (505) Dmm, 1kW type (TYPE II): 430W x 160 (175) H x 400 (505) Dmm

Output: 35V

ZOOM

Model		PAN35-5A	PAN35-10A	PAN35-20A	PAN35-30A
Output	CV(V)	0 to 35
Output	CC(A)	5	0 to 10	0 to 20	0 to 30
Ripple	CV(mVrms)	0.5
Ripple	CC(mArms)	1	2	3	5
Line regulation	CV(mV)	0.005%+1
Line regulation	CC(mA)	1		3
Load regulation	CV(mV)	0.005%+1		0.005%+2	0.005%+1
Load regulation	CC(mA)	2	3		5
Dimensions	Type *1	0	Ⅰ₂	Ⅰ₃	Ⅱ
Weight	kg(Approx.)	11	17	23	36
Input	Voltage [ AC ] (V)	100
Input	Power consumption(Approx. kVA)	0.4	0.8	1.4	1.8

*1 Dimensions (Type) 175W Type (Type 0): 106 (115) W x 140 (175) H x 400 (470) Dmm, 350W Type (Type I₂): 210 (235) W x 140 (160) H x 350 (425) Dmm, 700W Type (Type I₃): 210 (235) W x 140 (160) H x 400 (505) Dmm, 1kW type (TYPE II): 430W x 160 (175) H x 400 (505) Dmm

Output: 60V

ZOOM

Model		PAN60-3A	PAN60-6A	PAN60-10A	PAN60-20A
Output	CV(V)	0 to 60
Output	CC(A)	0 to 3	0 to 6	0 to 10	0 to 20
Ripple	CV(mVrms)	0.5
Ripple	CC(mArms)	1	2	3	2
Line regulation	CV(mV)	0.005%+1
Line regulation	CC(mA)	1		3	1
Load regulation	CV(mV)	0.005%+1
Load regulation	CC(mA)	2	3		2
Dimensions	Type *1	0	Ⅰ₂	Ⅰ₃	Ⅱ
Weight	kg(Approx.)	11	17	22	36
Input	Voltage [ AC ] (V)	100
Input	Power consumption(Approx. kVA)	0.35	0.7	1.1	2.1

Output: 70V

ZOOM

Model		PAN70-2.5A	PAN70-5A	PAN70-8A	PAN70-15A
Output	CV(V)	0 to 70
Output	CC(A)	0 to 2.5	5	0 to 8	0 to 15
Ripple	CV(mVrms)	0.5		1
Ripple	CC(mArms)	1	2		5
Line regulation	CV(mV)	0.005%+1
Line regulation	CC(mA)	1
Load regulation	CV(mV)	0.005%+1
Load regulation	CC(mA)	1	2	3
Dimensions	Type *1	0	Ⅰ₂	Ⅰ₃	Ⅱ
Weight	kg(Approx.)	11	17	22	35
Input	Voltage [ AC ] (V)	100
Input	Power consumption(Approx. kVA)	0.35	0.8	1.1	1.9

Output: 110V

ZOOM

Model		PAN110-1.5A	PAN110-3A	PAN110-5A	PAN110-10A
Output	CV(V)	0 to 110
Output	CC(A)	0 to 1.5	0 to 3	5	0 to 10
Ripple	CV(mVrms)	0.5		1
Ripple	CC(mArms)	1			2
Line regulation	CV(mV)	0.005%+1
Line regulation	CC(mA)	1
Load regulation	CV(mV)	0.005%+1
Load regulation	CC(mA)	1	2		3
Dimensions	Type *1	0	Ⅰ₂	Ⅰ₃	Ⅱ
Weight	kg(Approx.)	11	17	22	35
Input	Voltage [ AC ] (V)	100
Input	Power consumption(Approx. kVA)	0.4	0.7	1.0	2.0

Output: 160V

ZOOM

Model		PAN160-1A	PAN160-2A	PAN160-3.5A	PAN160-7A
Output	CV(V)	0 to 160
Output	CC(A)	0 to 1	0 to 2	0 to 3.5	0 to 7
Ripple	CV(mVrms)	1
Ripple	CC(mArms)	1			2
Line regulation	CV(mV)	0.005%+1
Line regulation	CC(mA)	1
Load regulation	CV(mV)	0.005%+1		0.005%+2
Load regulation	CC(mA)	1	2
Dimensions	Type *1	0	Ⅰ₂	Ⅰ₃	Ⅱ
Weight	kg(Approx.)	11	17	22	36
Input	Voltage [ AC ] (V)	100
Input	Power consumption(Approx. kVA)	0.33	0.7	1	1.9

Output: 250V, 350V, 600V

ZOOM

Model		PAN250-2.5A	PAN250-4.5A	PAN350-3.5A	PAN600-2A
Output	CV(V)	0 to 250		0 to 350	0 to 600
Output	CC(A)	0 to 2.5	0 to 4.5	0 to 3.5	0 to 2
Ripple	CV(mVrms)	5		1
Ripple	CC(mArms)	2			0.5
Line regulation	CV(mV)	0.005%+2		0.005%+1
Line regulation	CC(mA)	1			0.5
Load regulation	CV(mV)	0.005%+3		0.005%+1	0.002%+1
Load regulation	CC(mA)	1	2		1
Dimensions	Type *1	Ⅰ₃	Ⅱ
Weight	kg(Approx.)	23	35	36	37
Input	Voltage [ AC ] (V)	100
Input	Power consumption(Approx. kVA)	1.1	1.8	2.1	2.0

Common specifications

ZOOM

Constant voltage temperature coefficient	100 p.p.m./°C (standard value)
Constant current temperature coefficient	300 p.p.m./°C (standard value)
Transient response time	50 μs: Time required for the output voltage to return to a value less than 0.05 % of the rated value + 10 mV, against a fluctuation of 5 % to 100 % of the output current.
Ripple noise	Using an AC voltmeter having a range of 5 Hz to 1 MHz, ±3 dB, indicated in mean value and effective value measurement is performed with either a positive or negative output terminal connected to the ground.
Indication meters	Voltmeter indication error : ±(0.5 % rdg + 2 digits) at 23 °C ±5 °C
	Voltmeter max. indication digits : 199.9 (Note: 19.99 for the PAN16-10A/PAN16- 18A/PAN16-30A/PAN16-50A models, and 1999 for the PAN250-2.5A/PAN250-4.5A/ PAN600-2A)
	Amperemeter indication error : ±(1 % rdg + 5 digits) at 23 °C ±5 °C
	Amperemeter max. indication digits : 19.99 (Note: 1.999 for the PAN110-1.5A/ PAN160-1A, and 199.9 for the PAN16-30A/ PAN16-50A/PAN35-20A/PAN35-30A/PAN60- 20A)
Grounding	Plus or minus terminal can be grounded
Isolation voltage	±250V DC (However, ±500 VDC for the PAN110-1.5A/PAN110-3A/PAN110-5A/ PAN110-10A/PAN160-1A/PAN160-2A/ PAN160-3.5A/PAN250-2.5A/PAN250-4.5A.) (However, PAN350-3.5A and PAN600-2A are ±1000V DC)
Insulation resistance	Across input side and chassis: Greater than 30 MΩ at 500 VDC
Insulation resistance	Across output side and chassis: Greater than 20 MΩ at 500 VDC (For PAN350-3.5A and PAN600-2A, this is 1000 V DC, 20 MΩ, or higher.)
Withstand voltage	Nothing abnormal should occur at 1500 VAC, 1 min.
Operating temperature range	0° to 40°C
Operating humidity range	10 to 90 % RH
Cooling system	Forced air cooling using fan
Constant voltage operation	Green LED
Constant current operation	Red LED
Protection devices	Constant voltage, constant current automatic crossover
	Overvoltage protector (OVP) (10 % to 110 % of rated output voltage)
	Overcurrent protection circuit (Approx. 110 % of rated output current)
	Overvoltage protection circuit (Smoothing electrolytic capacitor for the rectification circuit)
	Overheat protection circuit (OHP) (Semiconductor cooling heat-sink [100 °C])
	Thermal fuse (Main- or sub-transformer)
	Input/output fuse
	Input surge absorber
About input voltage	If you require a power supply voltage other than 100V, please contact us at the time of order placement. (Factory option)
Dimensions (maximum dimension)	Type 0: 106(4.17˝)W ✕ 140(5.51˝)H ✕ 400(15.75˝)Dmm(inch) Type I 2: 210(8.27˝)W ✕ 140(5.51˝)H ✕ 350(13.78˝)Dmm(inch) Type I 3: 210(8.27˝)W ✕ 140(5.51˝)H ✕ 400(15.75˝)Dmm(inch) Type II: 430(16.93˝)W ✕ 160(6.3˝)H ✕ 400(15.75˝)Dmm(inch)

Constant voltage temperature coefficient	100 p.p.m./°C (standard value)
Constant current temperature coefficient	300 p.p.m./°C (standard value)
Transient response time	50 μs: Time required for the output voltage to return to a value less than 0.05 % of the rated value + 10 mV, against a fluctuation of 5 % to 100 % of the output current.
Ripple noise	Using an AC voltmeter having a range of 5 Hz to 1 MHz, ±3 dB, indicated in mean value and effective value measurement is performed with either a positive or negative output terminal connected to the ground.
Indication meters	Voltmeter indication error : ±(0.5 % rdg + 2 digits) at 23 °C ±5 °C
	Voltmeter max. indication digits : 199.9 (Note: 19.99 for the PAN16-10A/PAN16- 18A/PAN16-30A/PAN16-50A models, and 1999 for the PAN250-2.5A/PAN250-4.5A/ PAN600-2A)
	Amperemeter indication error : ±(1 % rdg + 5 digits) at 23 °C ±5 °C
	Amperemeter max. indication digits : 19.99 (Note: 1.999 for the PAN110-1.5A/ PAN160-1A, and 199.9 for the PAN16-30A/ PAN16-50A/PAN35-20A/PAN35-30A/PAN60- 20A)
Grounding	Plus or minus terminal can be grounded
Isolation voltage	±250V DC (However, ±500 VDC for the PAN110-1.5A/PAN110-3A/PAN110-5A/ PAN110-10A/PAN160-1A/PAN160-2A/ PAN160-3.5A/PAN250-2.5A/PAN250-4.5A.) (However, PAN350-3.5A and PAN600-2A are ±1000V DC)
Insulation resistance	Across input side and chassis: Greater than 30 MΩ at 500 VDC
Insulation resistance	Across output side and chassis: Greater than 20 MΩ at 500 VDC (For PAN350-3.5A and PAN600-2A, this is 1000 V DC, 20 MΩ, or higher.)
Withstand voltage	Nothing abnormal should occur at 1500 VAC, 1 min.
Operating temperature range	0° to 40°C
Operating humidity range	10 to 90 % RH
Cooling system	Forced air cooling using fan
Constant voltage operation	Green LED
Constant current operation	Red LED
Protection devices	Constant voltage, constant current automatic crossover
	Overvoltage protector (OVP) (10 % to 110 % of rated output voltage)
	Overcurrent protection circuit (Approx. 110 % of rated output current)
	Overvoltage protection circuit (Smoothing electrolytic capacitor for the rectification circuit)
	Overheat protection circuit (OHP) (Semiconductor cooling heat-sink [100 °C])
	Thermal fuse (Main- or sub-transformer)
	Input/output fuse
	Input surge absorber
About input voltage	If you require a power supply voltage other than 100V, please contact us at the time of order placement. (Factory option)
Dimensions (maximum dimension)	Type 0: 106(4.17˝)W ✕ 140(5.51˝)H ✕ 400(15.75˝)Dmm(inch) Type I 2: 210(8.27˝)W ✕ 140(5.51˝)H ✕ 350(13.78˝)Dmm(inch) Type I 3: 210(8.27˝)W ✕ 140(5.51˝)H ✕ 400(15.75˝)Dmm(inch) Type II: 430(16.93˝)W ✕ 160(6.3˝)H ✕ 400(15.75˝)Dmm(inch)

Dimensions(mm)

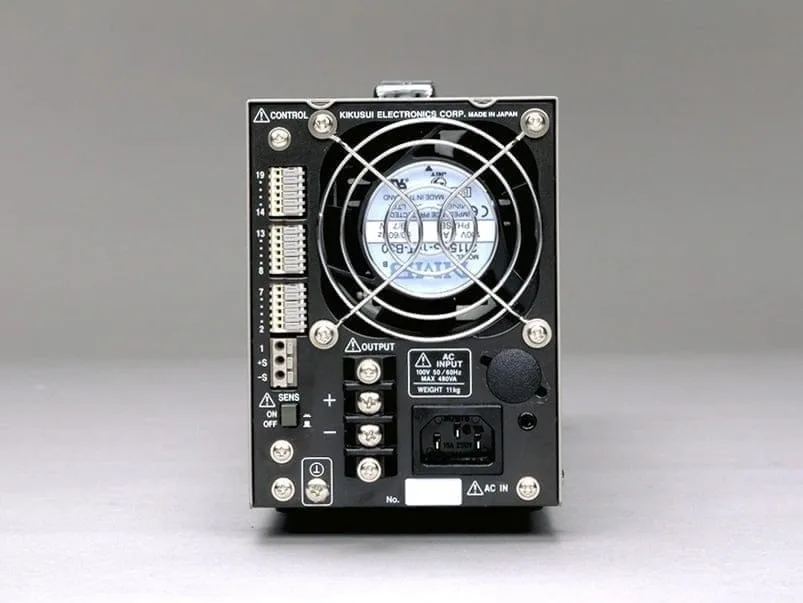

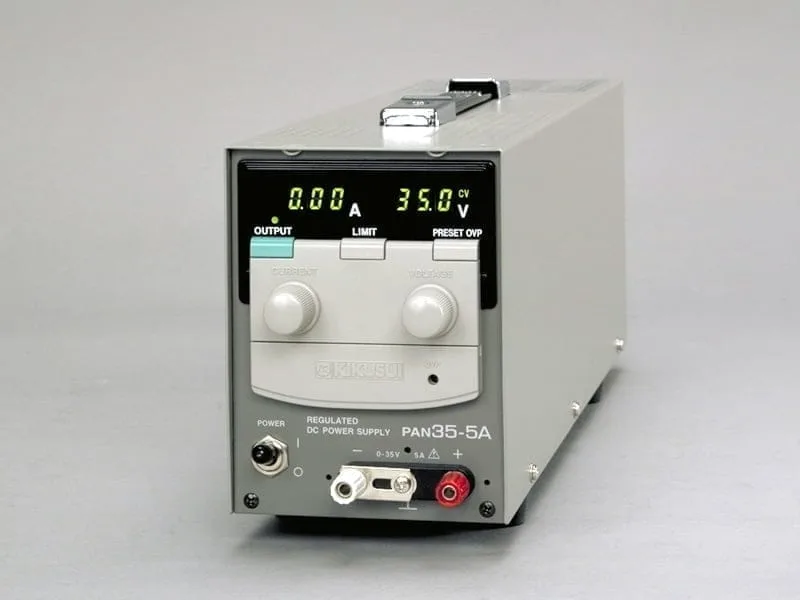

175W (Type 0)

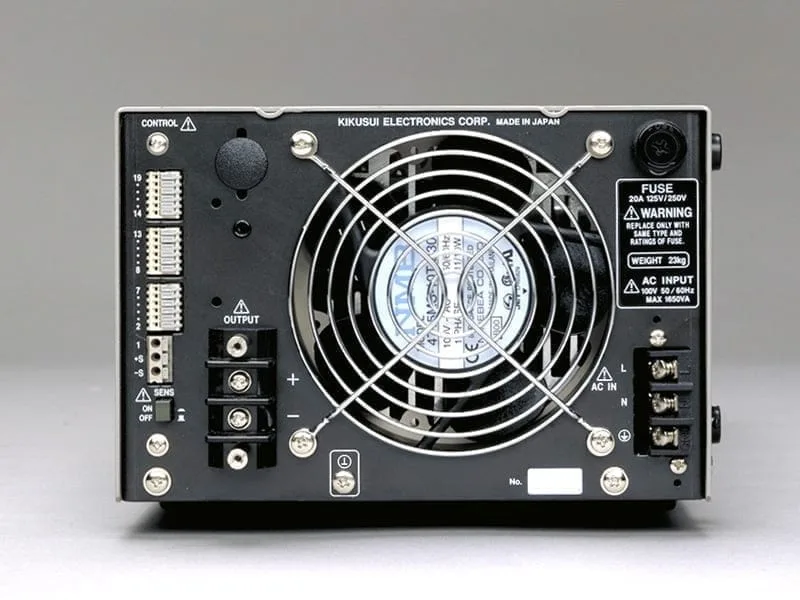

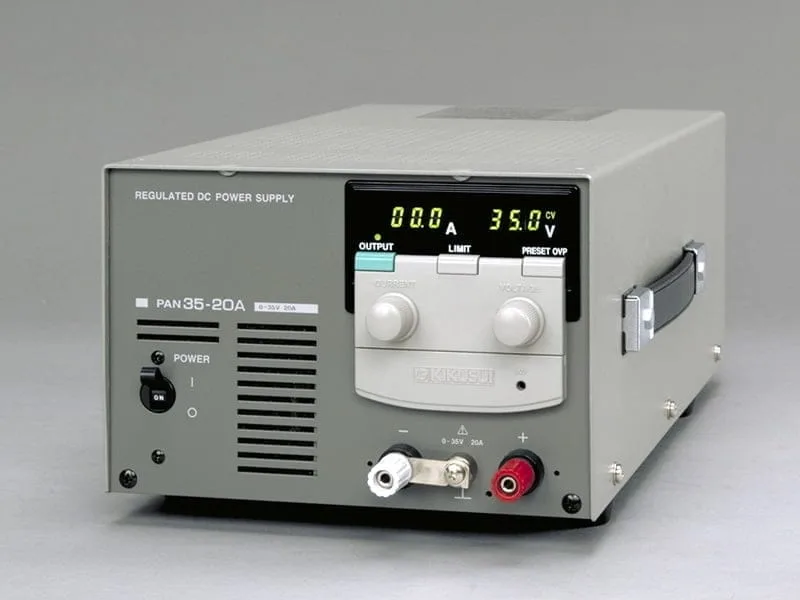

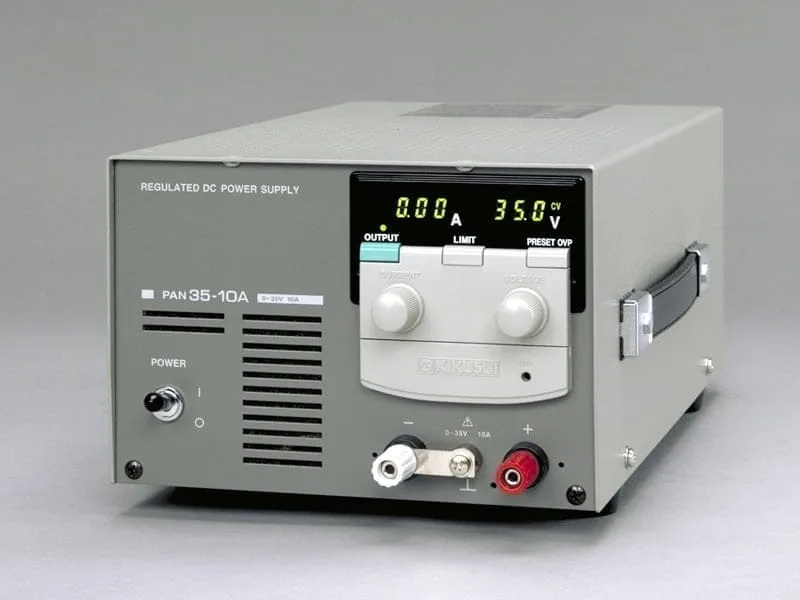

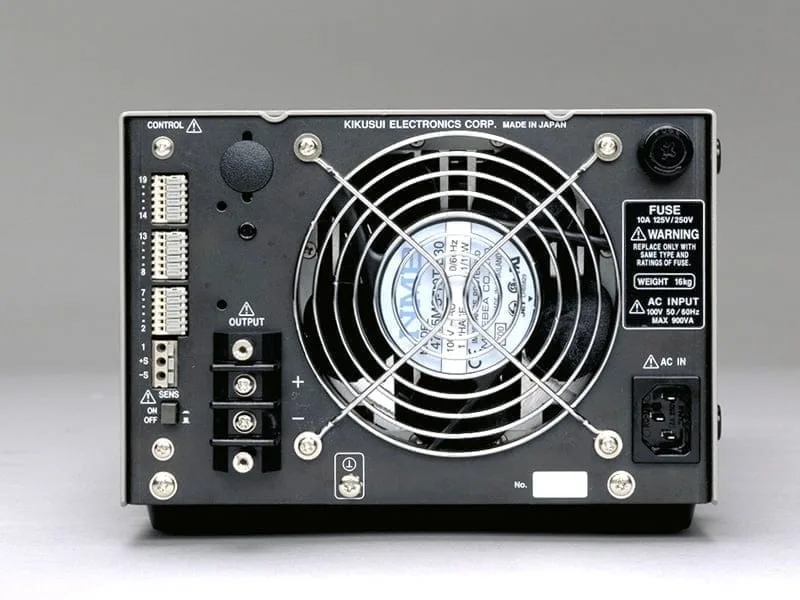

350 W Type/700 W Type (Type I₂/I₃)

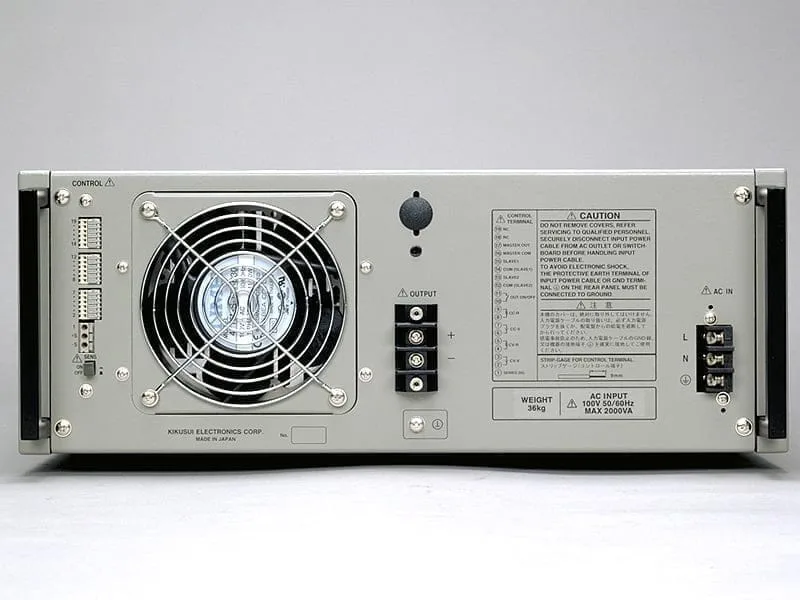

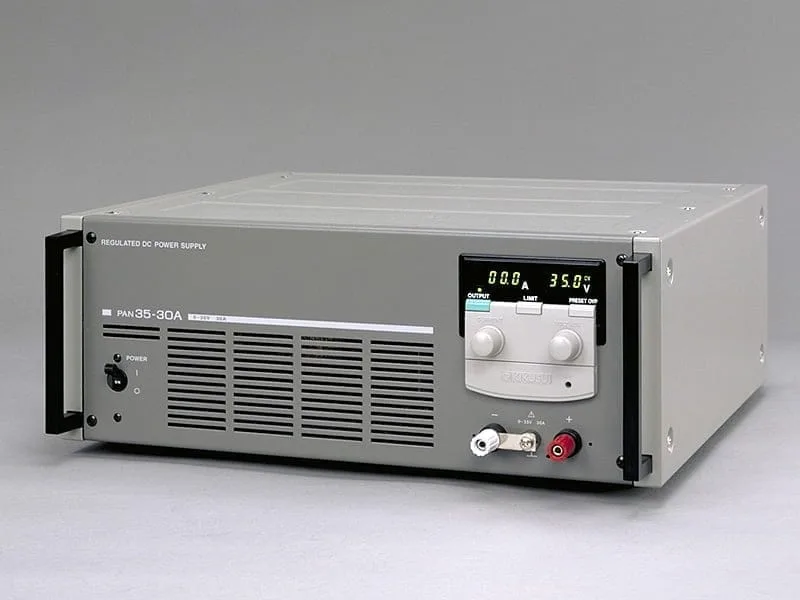

1000 W Type (Type II)

Options

Control Boards

Power Supply Controllers

PIA4810
100,000円（税込：110,000円）
Out of stock

Rack mount frame

Terminal unit

TU02-PIA
30,000円（税込：33,000円）

Rack mount bracket

Brank panel

Product Catalog

High Reliability DC Power Supply | PAN-A Series 1.05 MB

1.05 MB

Operation Manuals

PAN_A_V3

0.00 KB

2D CAD

175 W Type
PAN16-10A / PAN35-5A / PAN60-3A / PAN70-2.5A / PAN110-1.5A / PAN160-1A

Outline | PDF 26.30 KB

26.30 KB

Outline | DXF 27.34 KB

27.34 KB

Base view | PDF 28.12 KB

28.12 KB

Base view | DXF 107.22 KB

107.22 KB

350 W Type
PAN16-18A / PAN35-10A / PAN60-6A / PAN70-5A / PAN110-3A / PAN160-2A

Outline | PDF 30.45 KB

30.45 KB

Outline | DXF 2.81 MB

2.81 MB

Base view | PDF 26.79 KB

26.79 KB

Base view | DXF 101.98 KB

101.98 KB

700 W Type
PAN16-30A / PAN35-20A / PAN60-10A / PAN70-8A / PAN110-5A / PAN160-3.5A / PAN250-2.5A

Outline | PDF 161.40 KB

161.40 KB

Outline | DXF 2.47 MB

2.47 MB

Base view | PDF 48.98 KB

48.98 KB

Base view | DXF 189.66 KB

189.66 KB

1000 W Type
PAN16-50A / PAN35-30A / PAN60-20A / PAN70-15A / PAN110-10A / PAN160-7A / PAN250-4.5A / PAN350-3.5A / PAN600-2A

Outline | PDF 32.46 KB

32.46 KB

Outline | DXF 51.06 KB

51.06 KB

Base view | PDF 33.06 KB

33.06 KB

Outline | DXF 25.13 KB

25.13 KB

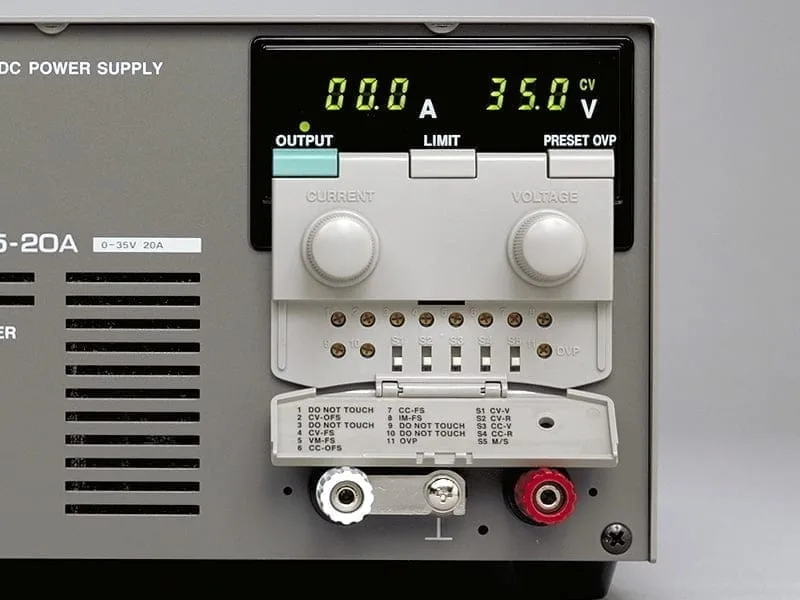

DC Power Supply PAN-A Series

About the products on this website

The products listed on this website are intended for professional use under the supervision of a person with sufficient electrical knowledge and are not designed or manufactured for general home use or consumer use.
Specifications and designs are subject to change without notice due to improvement or other reasons.
Names and prices are subject to change or production may be discontinued for various reasons.
If you have any questions about your order or contract, please contact our sales department. Please note that we may not be able to assume any responsibility or liability that may arise if you do not confirm an issue with us. Please be aware of this in advance.
Many of our products are subject to export restrictions under the export license and related regulations and laws stipulated by the Japanese government. If you wish to take the product outside of Japan or export it, please consult with our sales office in advance, as you will need to follow the prescribed procedures stipulated by the regulatory authorities.
Company names and brand names appearing on this website are trademarks or registered trademarks.
Please be sure to read the "Operation Manual" before using the product.
Due to screen display reasons, there may be differences in color, texture, etc. between the actual product and the pictures on this website.

DC Power Supplies

Bidirectional DC Power Supply

High Power Wide-Range DC Power Supply

Compact Wide-RangeDC Power Supply (CV/CC)

1U Wide RangeProgrammable DC Power Supply

Compact Variable-switchingDC Power Supply (CV/CC)

High-Efficiency, High-capacitySwitching DC Power Supply (CV/CC)

Slim Variable Switching Power Supplies

High-capacity regulated DC power supplies

High Reliability DC Power Supply (CV/CC)

High Reliability DC Power Supply (CV/CC)

Variable Regulated DC Power Supply (CV/CC)

Compact DC Power Supply(CV/CC)

Compact Multi-Output DC Power Supply (CV/CC)

Precision DC Source

Bipolar 4-quadrantPower Supply

Programmable Bipolar Power Supply (CV/CC)

Programmable Bipolar Power Supply (CV/CC)

High Power Intelligent Bipolar Power Supply

High Power Intelligent Bipolar Power Supply

AC Power Supplies

Ultra-CompactAC/DC Power Supply (CV/CF)

Ultra-CompactAC/DC Power Supply (CV/CF)

Compact AC Power Supply

High-performance multifunctionalAC Power Supplies

Electrical Safety Testers

High-End Multi-type

High-End Multi-type

High-End Multi-type

High-End Multi-type

High-End Multi-type

High-End Multi-type

High-End Multi-type

Standard

Standard

Standard

Standard

Standard

High-End

High-End

High-End

High-End

Electronic Load

Regenerative Electronic Load

Multifunctional Electronic Load (CC/CV/CR/CP)

Compact High Voltage DC Electronic Load

Multifunctional Electronic Load (CC/CV/CR/CP)

High Speed-Large Current Electronic Load(CC/CV/CR/CP)

Modular Multifunction Electronic Load

AC Electronic Load

PAN-A Series

Line-up

Specifications

Dimensions(mm)

Options

Control Boards

OP02-PIA

OP01-PIA

Power Supply Controllers

PIA4810

Rack mount frame

RMF4M

RMF4

Terminal unit

TU02-PIA

Rack mount bracket

BH4

B22

B42

BH4M

Brank panel

BP4

BP2（1/2巾）

BP1H

BP191

Product Catalog

Operation Manuals

2D CAD

Search

About cookie

Bipolar 4-quadrant
Power Supply
