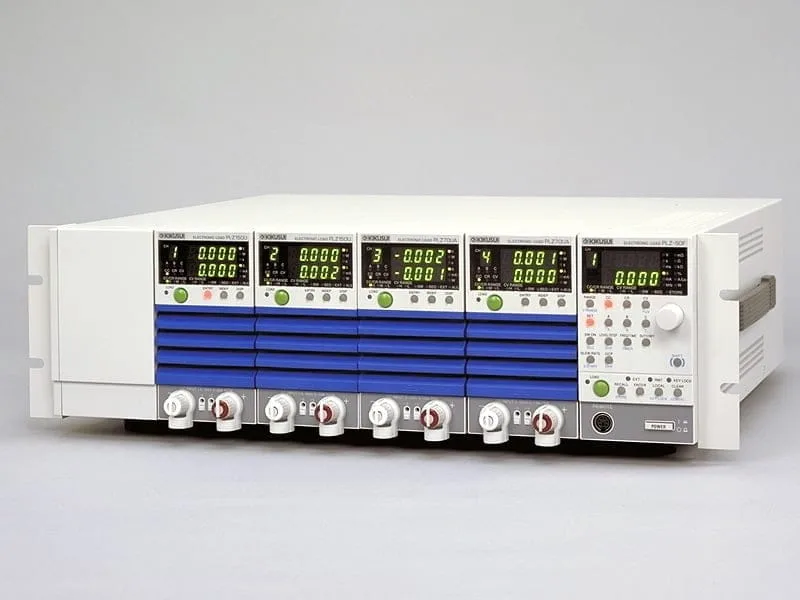

Unit type DC power supply load

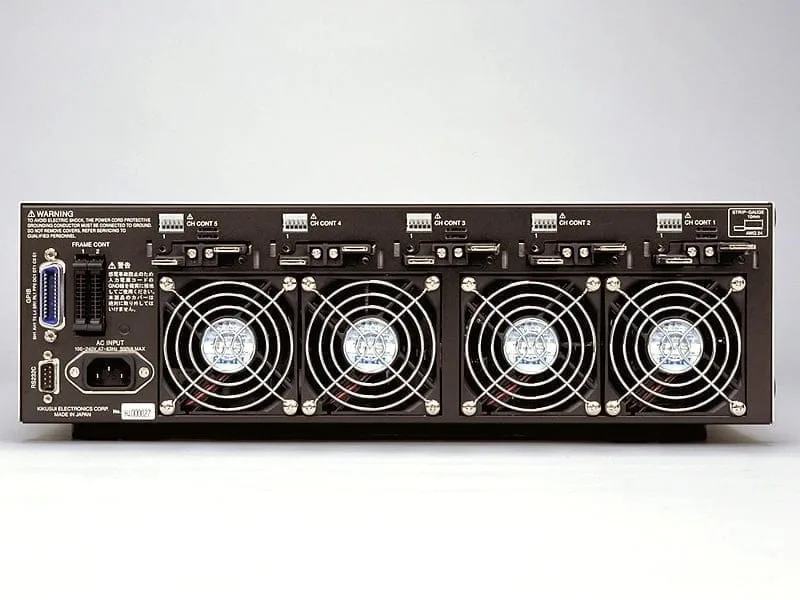

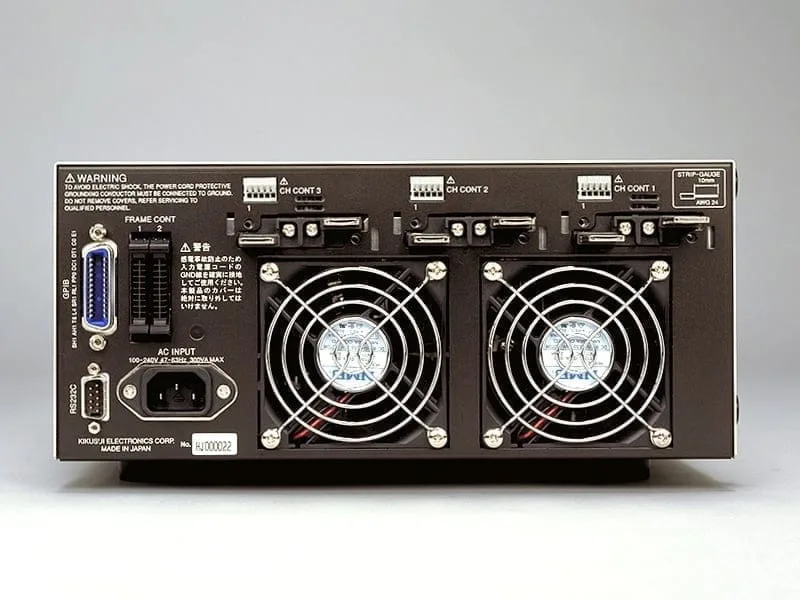

Back Panel
Unit type

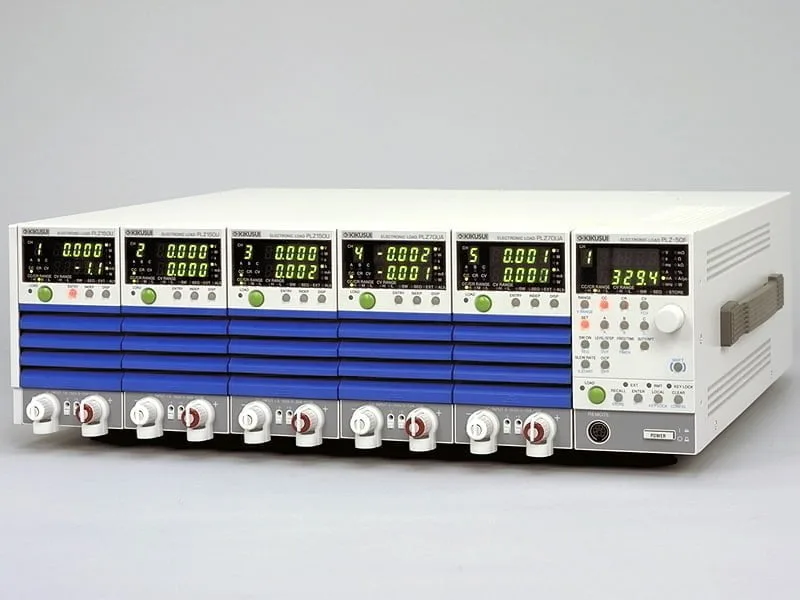

Up to 5 load units can be paralleled

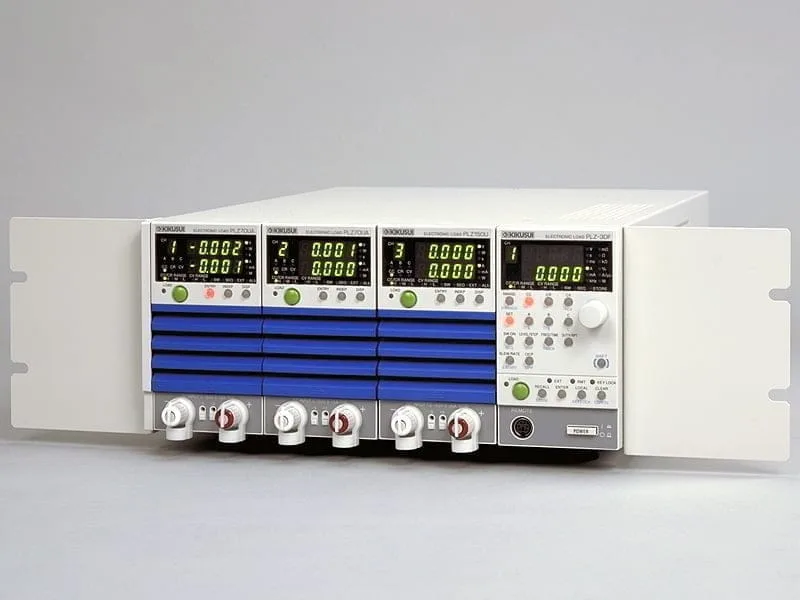

Equipped with sequence function

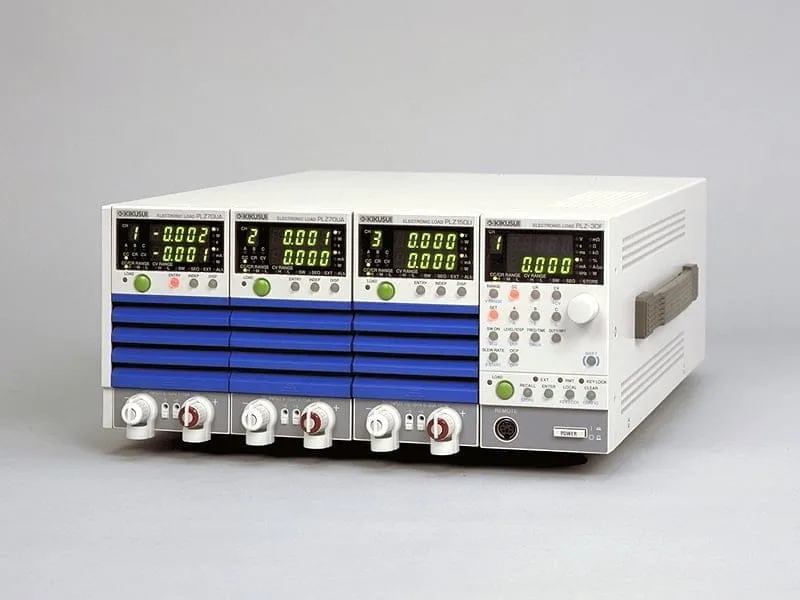

GPIB, RS-232C standard equipment

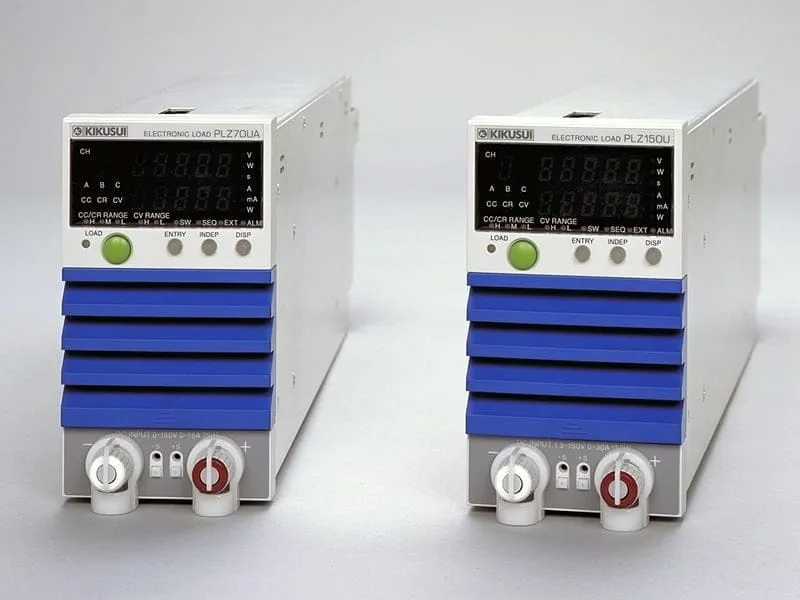

Low voltage and high speed semiconductor

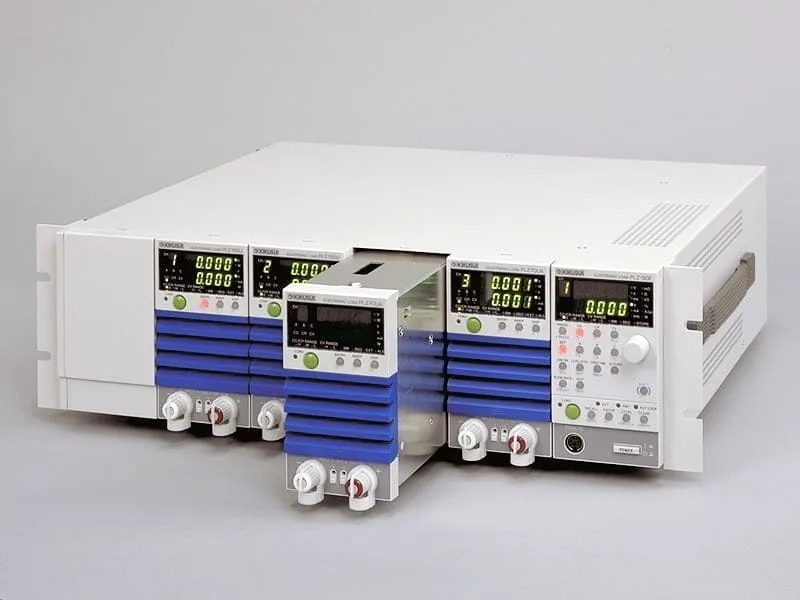

Current capacity and power capacity can be flexibly changed according to the output of the object under test

Multifunctional Electronic Load (CC/CV/CR/CC+CV/CR+CV)

PLZ-U Series

PLZ-U

128,000円 – 885,000円

  • Slew rate of 2.4 A/μs in the rising and falling edges in CC mode (PLZ150U)
  • Built-in three ranges; voltmeter, ammeter, and wattmeter functions that provide readings of up to five digits
  • The current slew rate can be changed continuously in constant current and constant resistance modes
  • Supports 0-V input – an indispensable feature for testing single-cell fuel cells
  • Individual units (channels) can operate either independently or in synchronization
  • Up to 5 load units of the same model can be operated in parallel.
  • Up to three values can be stored in memory for each most frequently used operation mode and range
  • Equipped with various types of protection circuits: Over Voltage Protection(OVP), Over Current Protection(OCP), Over Power Protection(OPP), Over Heat Protection(OHP), Under Voltage Protection(UVP), And Reverse Connection Protection(REV)
  • GPIB/RS232C/USB are standard interface
  • External control is available to turn on or off the output

LAN LXIUKCA
Login to myKIKUSUI / What is myKIKUSUI?
Request for Quotation
ImageSKU標準価格WEBかんたんお見積り
PLZ70UAPLZ-30F---143,000円
（税込：157,300円）
PLZ150UPLZ-30F---128,000円
（税込：140,800円）
PLZ-30FPLZ-30F---138,000円
（税込：151,800円）
Up to 5 load units can be paralleledPLZ-50FPLZ-30F---170,000円
（税込：187,000円）
PLZ30F-70UA0-150U1PLZ-50F0 unit1 unit1 unit266,000円
（税込：292,600円）
PLZ30F-70UA0-150U2PLZ-50F0 unit2 units2 units394,000円
（税込：433,400円）
PLZ30F-70UA0-150U3PLZ-50F0 unit3 units3 units522,000円
（税込：574,200円）
PLZ30F-70UA1-150U0PLZ-50F1 unit0 unit1 unit281,000円
（税込：309,100円）
PLZ30F-70UA1-150U1PLZ-50F1 unit1 unit2 units409,000円
（税込：449,900円）
PLZ30F-70UA1-150U2PLZ-50F1 unit2 units3 units537,000円
（税込：590,700円）
PLZ30F-70UA2-150U0PLZ-50F2 units0 unit2 units424,000円
（税込：466,400円）
PLZ30F-70UA2-150U1PLZ-50F2 units1 unit3 units552,000円
（税込：607,200円）
PLZ30F-70UA3-150U0PLZ-50F3 units0 unit3 units567,000円
（税込：623,700円）
電子負荷 装置PLZ50F-70UA0-150U1PLZ-50F0 unit1 unit1 unit298,000円
（税込：327,800円）
電子負荷 装置PLZ50F-70UA0-150U2PLZ-50F0 unit2 units2 units426,000円
（税込：468,600円）
電子負荷 装置PLZ50F-70UA0-150U3PLZ-50F0 unit3 units3 units554,000円
（税込：609,400円）
PLZ50F-70UA0-150U4PLZ-50F0 unit4 units4 units682,000円
（税込：750,200円）
Up to 5 load units can be paralleledPLZ50F-70UA0-150U5PLZ-50F0 unit5 units5 units810,000円
（税込：891,000円）
電子負荷 装置PLZ50F-70UA1-150U0PLZ-50F1 unit0 unit1 unit313,000円
（税込：344,300円）
電子負荷 装置PLZ50F-70UA1-150U1PLZ-50F1 unit1 unit2 units441,000円
（税込：485,100円）
PLZ50F-70UA1-150U3PLZ-50F1 unit3 units4 units697,000円
（税込：766,700円）
Up to 5 load units can be paralleledPLZ50F-70UA1-150U4PLZ-50F1 unit4 units5 units825,000円
（税込：907,500円）
PLZ50F-70UA2-150U0PLZ-50F2 units0 unit2 units456,000円
（税込：501,600円）
電子負荷 装置PLZ50F-70UA2-150U1PLZ-50F2 units1 unit3 units584,000円
（税込：642,400円）
PLZ50F-70UA2-150U2PLZ-50F2 units2 units4 units712,000円
（税込：783,200円）
電子負荷 装置PLZ50F-70UA1-150U2PLZ-50F1 unit2 units3 units569,000円
（税込：625,900円）
Up to 5 load units can be paralleledPLZ50F-70UA2-150U3PLZ-50F2 units3 units5 units840,000円
（税込：924,000円）
電子負荷 装置PLZ50F-70UA3-150U0PLZ-50F3 units0 unit3 units599,000円
（税込：658,900円）
PLZ50F-70UA3-150U1PLZ-50F3 units1 unit4 units727,000円
（税込：799,700円）
Up to 5 load units can be paralleledPLZ50F-70UA3-150U2PLZ-50F3 units2 units5 units855,000円
（税込：940,500円）
PLZ50F-70UA4-150U0PLZ-50F4 units0 unit4 units742,000円
（税込：816,200円）
Up to 5 load units can be paralleledPLZ50F-70UA4-150U1PLZ-50F4 units1 unit5 units870,000円
（税込：957,000円）
Up to 5 load units can be paralleledPLZ50F-70UA5-150U0PLZ-50F5 units0 unit5 units885,000円
（税込：973,500円）
SKU: PLZ-U

Line-up

ImageSKU標準価格WEBかんたんお見積り
PLZ70UAPLZ-30F---143,000円
（税込：157,300円）
PLZ150UPLZ-30F---128,000円
（税込：140,800円）
PLZ-30FPLZ-30F---138,000円
（税込：151,800円）
Up to 5 load units can be paralleledPLZ-50FPLZ-30F---170,000円
（税込：187,000円）
PLZ30F-70UA0-150U1PLZ-50F0 unit1 unit1 unit266,000円
（税込：292,600円）
PLZ30F-70UA0-150U2PLZ-50F0 unit2 units2 units394,000円
（税込：433,400円）
PLZ30F-70UA0-150U3PLZ-50F0 unit3 units3 units522,000円
（税込：574,200円）
PLZ30F-70UA1-150U0PLZ-50F1 unit0 unit1 unit281,000円
（税込：309,100円）
PLZ30F-70UA1-150U1PLZ-50F1 unit1 unit2 units409,000円
（税込：449,900円）
PLZ30F-70UA1-150U2PLZ-50F1 unit2 units3 units537,000円
（税込：590,700円）
PLZ30F-70UA2-150U0PLZ-50F2 units0 unit2 units424,000円
（税込：466,400円）
PLZ30F-70UA2-150U1PLZ-50F2 units1 unit3 units552,000円
（税込：607,200円）
PLZ30F-70UA3-150U0PLZ-50F3 units0 unit3 units567,000円
（税込：623,700円）
電子負荷 装置PLZ50F-70UA0-150U1PLZ-50F0 unit1 unit1 unit298,000円
（税込：327,800円）
電子負荷 装置PLZ50F-70UA0-150U2PLZ-50F0 unit2 units2 units426,000円
（税込：468,600円）
電子負荷 装置PLZ50F-70UA0-150U3PLZ-50F0 unit3 units3 units554,000円
（税込：609,400円）
PLZ50F-70UA0-150U4PLZ-50F0 unit4 units4 units682,000円
（税込：750,200円）
Up to 5 load units can be paralleledPLZ50F-70UA0-150U5PLZ-50F0 unit5 units5 units810,000円
（税込：891,000円）
電子負荷 装置PLZ50F-70UA1-150U0PLZ-50F1 unit0 unit1 unit313,000円
（税込：344,300円）
電子負荷 装置PLZ50F-70UA1-150U1PLZ-50F1 unit1 unit2 units441,000円
（税込：485,100円）
PLZ50F-70UA1-150U3PLZ-50F1 unit3 units4 units697,000円
（税込：766,700円）
Up to 5 load units can be paralleledPLZ50F-70UA1-150U4PLZ-50F1 unit4 units5 units825,000円
（税込：907,500円）
PLZ50F-70UA2-150U0PLZ-50F2 units0 unit2 units456,000円
（税込：501,600円）
電子負荷 装置PLZ50F-70UA2-150U1PLZ-50F2 units1 unit3 units584,000円
（税込：642,400円）
PLZ50F-70UA2-150U2PLZ-50F2 units2 units4 units712,000円
（税込：783,200円）
電子負荷 装置PLZ50F-70UA1-150U2PLZ-50F1 unit2 units3 units569,000円
（税込：625,900円）
Up to 5 load units can be paralleledPLZ50F-70UA2-150U3PLZ-50F2 units3 units5 units840,000円
（税込：924,000円）
電子負荷 装置PLZ50F-70UA3-150U0PLZ-50F3 units0 unit3 units599,000円
（税込：658,900円）
PLZ50F-70UA3-150U1PLZ-50F3 units1 unit4 units727,000円
（税込：799,700円）
Up to 5 load units can be paralleledPLZ50F-70UA3-150U2PLZ-50F3 units2 units5 units855,000円
（税込：940,500円）
PLZ50F-70UA4-150U0PLZ-50F4 units0 unit4 units742,000円
（税込：816,200円）
Up to 5 load units can be paralleledPLZ50F-70UA4-150U1PLZ-50F4 units1 unit5 units870,000円
（税込：957,000円）
Up to 5 load units can be paralleledPLZ50F-70UA5-150U0PLZ-50F5 units0 unit5 units885,000円
（税込：973,500円）

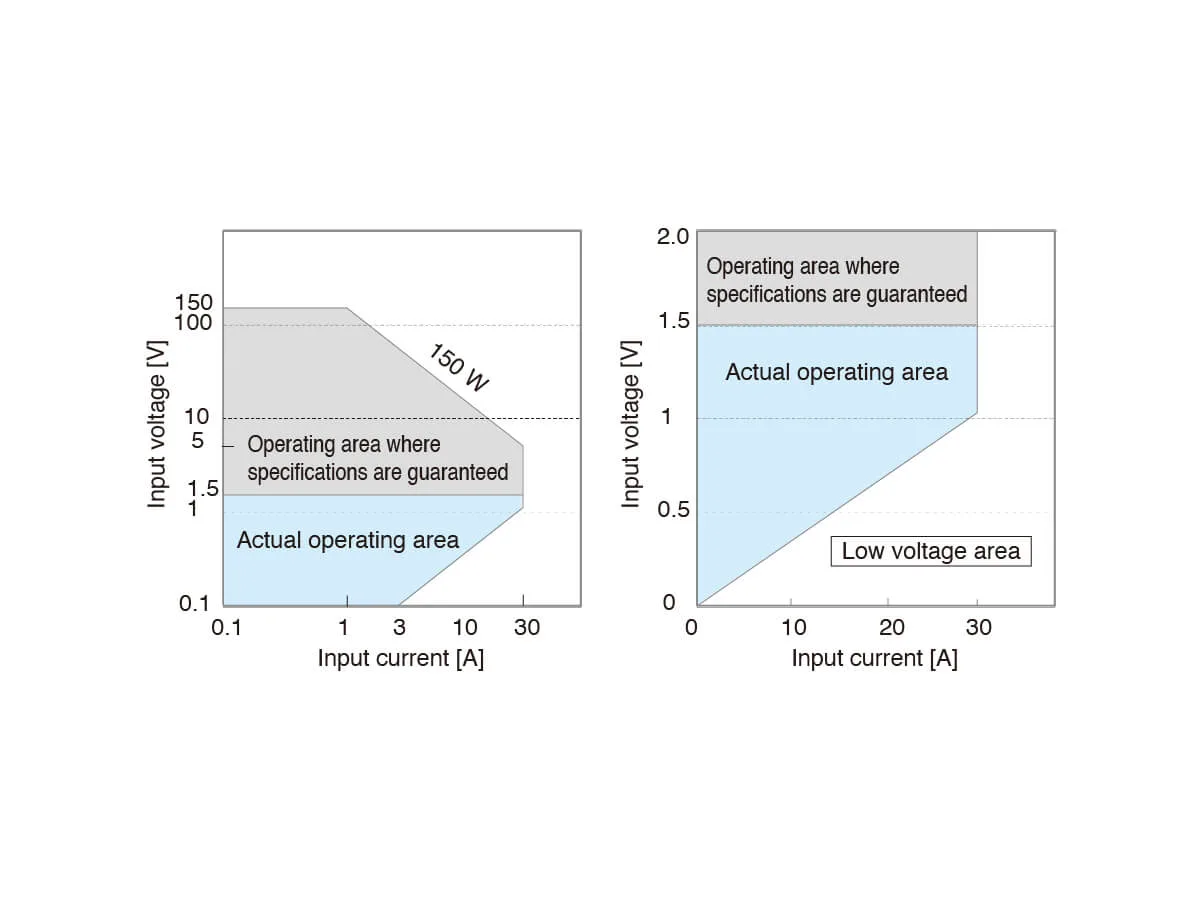

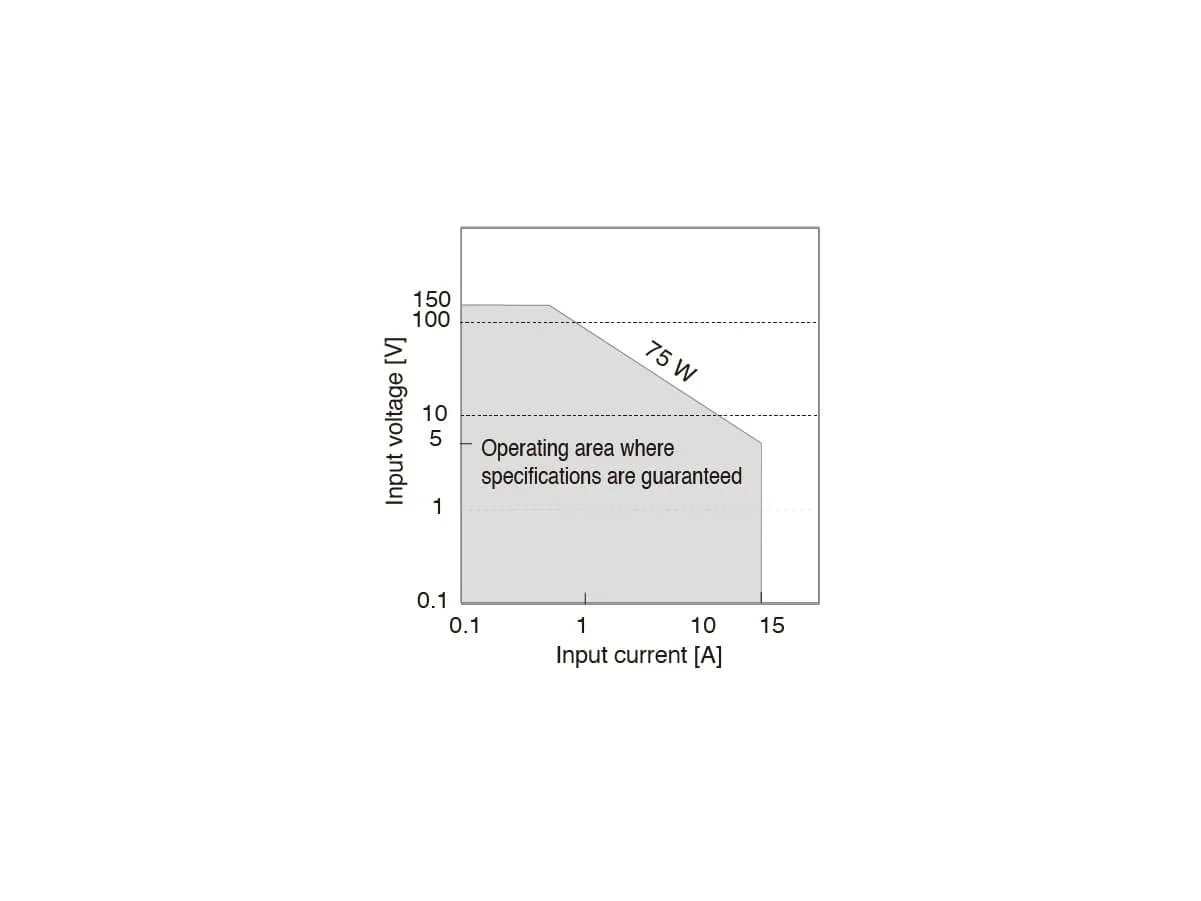

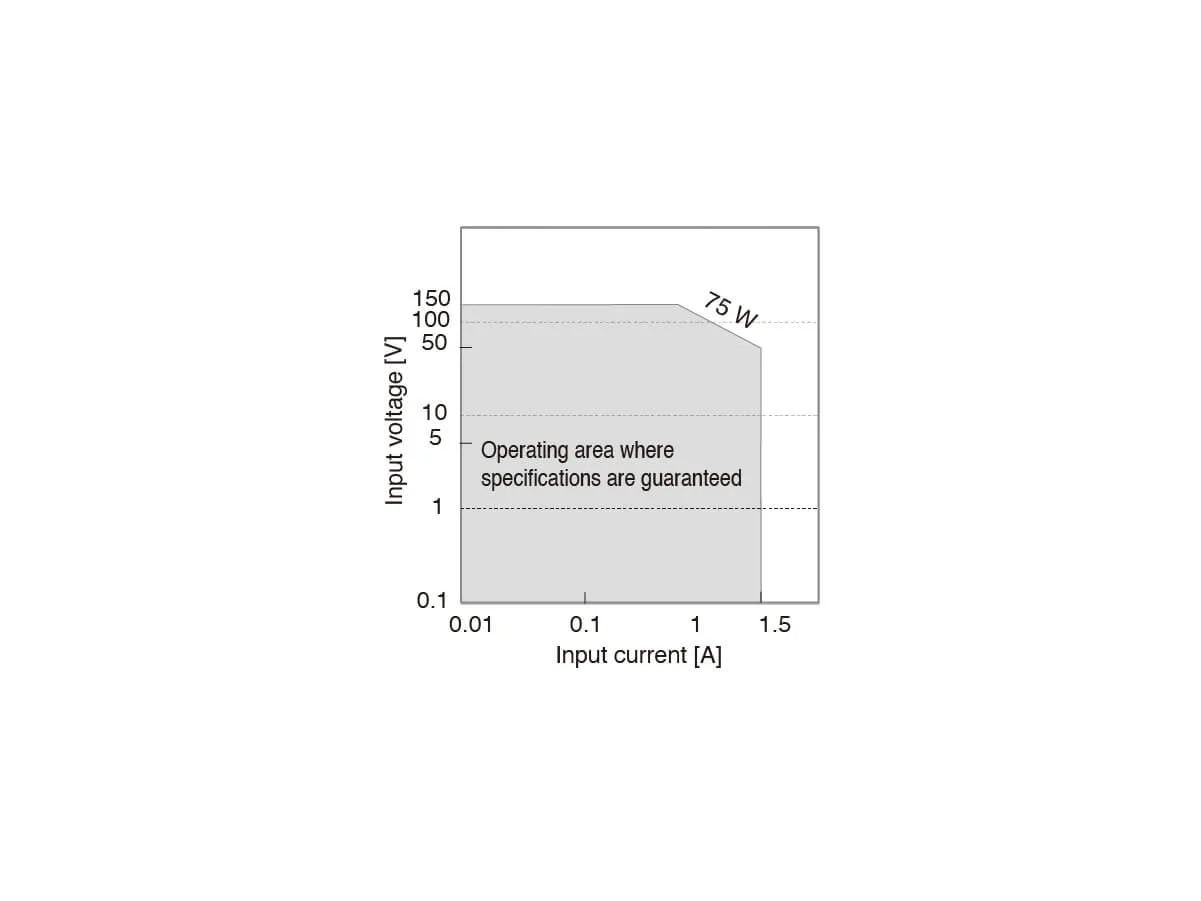

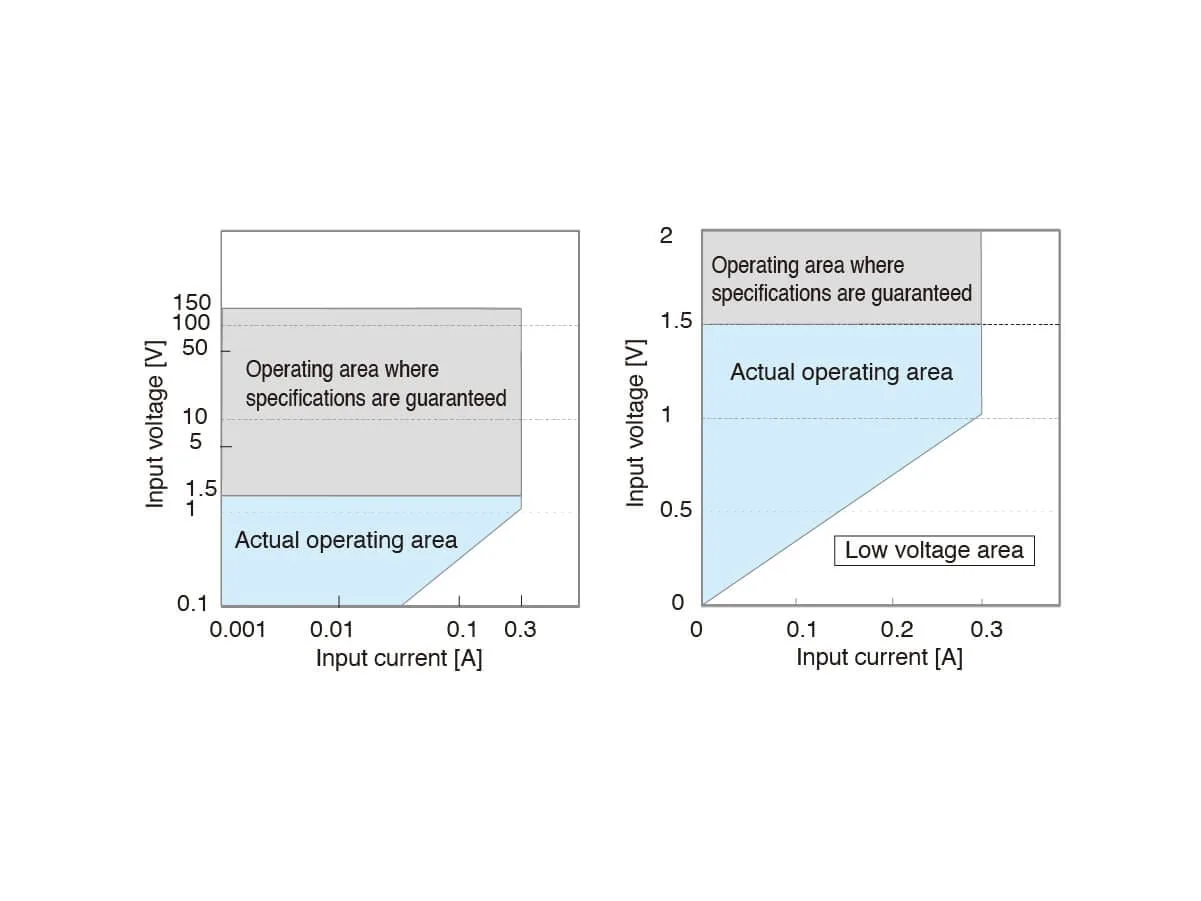

Specifications

Rating

Open in a new windowZOOM
ModelPLZ150UPLZ70UA

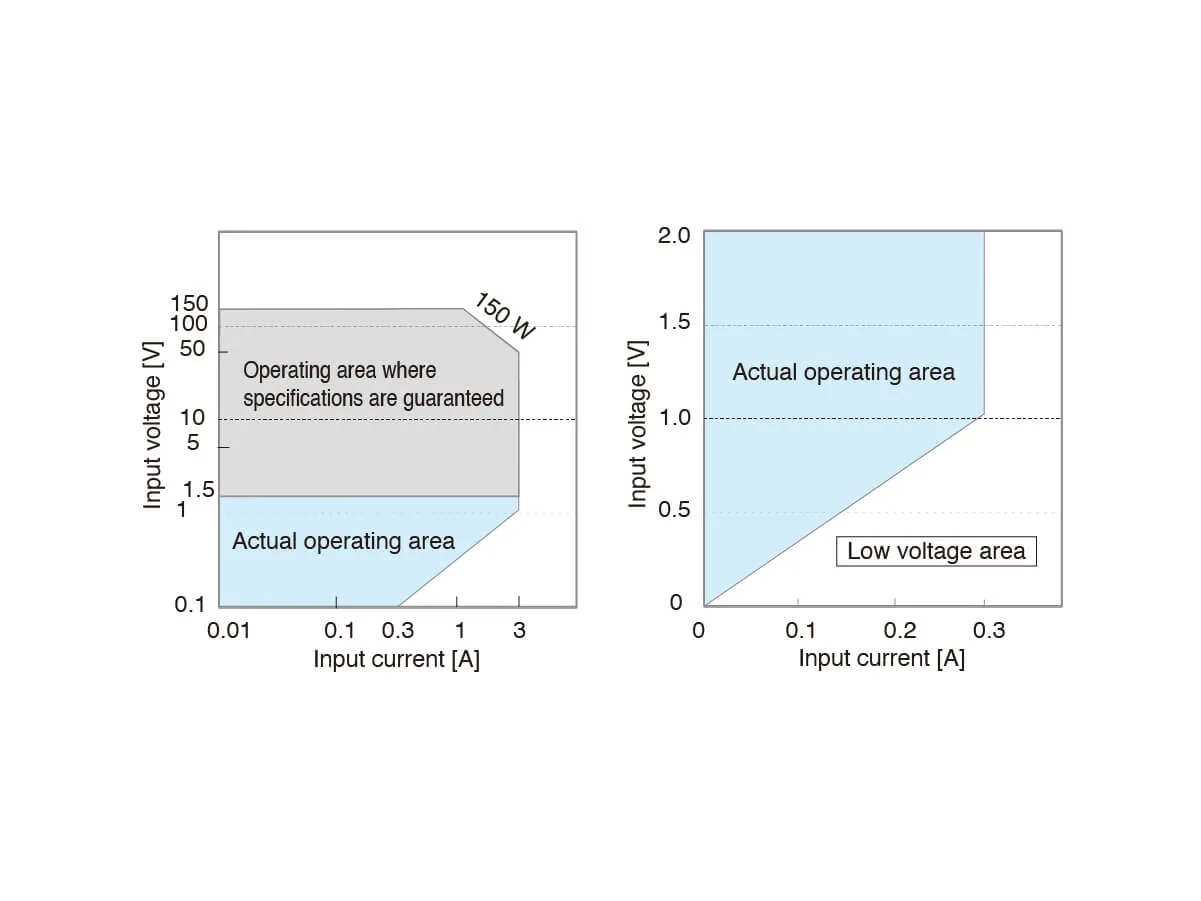

Operating voltage (DC)1.5 V to 150 V0 V to 150 V
Current/powerRangeH30 A / 150 W15 A / 75 W
M3 A / 150 W1.5 A / 75 W

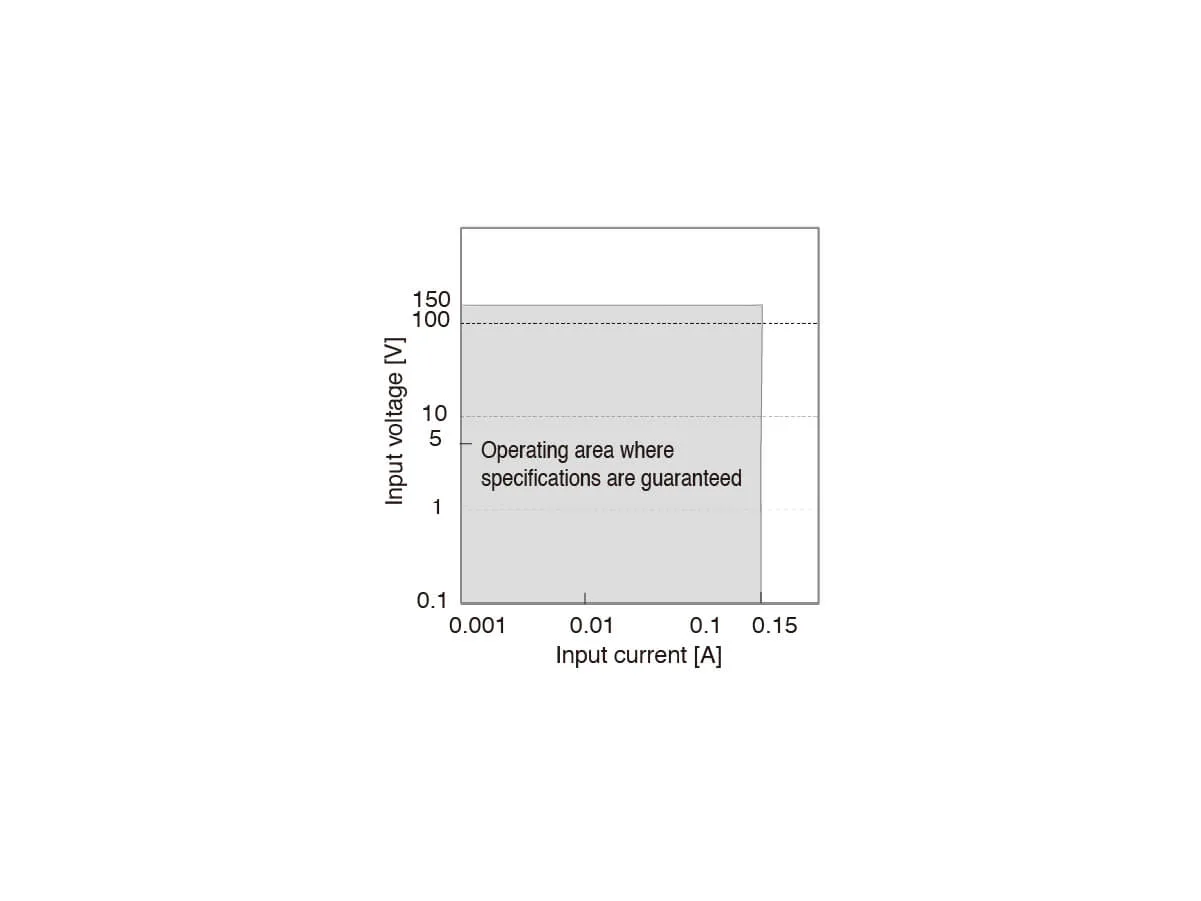

L300 mA / 45 W150 mA / 22.5 W

Isolation voltage of the load input terminal500 VDC
Withstand voltage between load input terminal channels500 VDC
Minimum start voltage*10.3 V or greater

*1 Minimum voltage at which the current starts flowing to the PLZ-U. (The PLZ-U detects no signal at an input voltage less than or equal to approximately 0.3 V and an input current less than or equal to approximately 1 % of the range rating. Therefore, if the input voltage is gradually increased from 0 V, no current will flow until 0.3 V is exceeded. If a current greater than or equal to 1% of the range rating starts flowing, the current can flow at voltages less than equal to 0.3 V.)


Constant current mode (CC)

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
Operating rangeRangeH0 A to 30 A0 A to 15 A
M0 A to 3 A0 A to 1.5 A
L0 A to 300 mA0 A to 150 mA
Selectable range0 % to 105 % of f.s
ResolutionRangeH2 mA1 mA
M0.2 mA0.1 mA
L0.02 mA0.01 mA
Accuracy of settingRangeH, M, and L±(0.2 % of set + 0.2 % of f.s) + Vin*1/500 kΩ
Input voltage variation*2RangeH2 mA
M1 mA
L0.1 mA
Ripplerms*33 mA7.5 mA
p-p*430 mA50 mA

*1 Vin: Load input terminal voltage *2 At a current greater than or equal to (Vin/500 kΩ) *3 Measurement frequency bandwidth: 10 Hz to 1 MHz *4 Measurement frequency bandwidth: 10 Hz to 20 MHz


Constant resistance mode (CR)

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
Operating range
The value inside parentheses is the conductance.*1		RangeHOPEN to 50 mΩ (0 S to 20 S)OPEN to 100 mΩ (0 S to 10 S)
MOPEN to 500 mΩ (0 S to 2 S)OPEN to 1 Ω (0 S to 1 S)
LOPEN to 5 Ω (0 S to 200 mS)OPEN to 10 Ω (0 S to 100 mS)
Selectable range0 % to 105 % of f.s
Resolution
The value inside parentheses is the operating range.		RangeH0.2 mS (0 S to 2 S)0.1 mS (0 S to 1 S)
2 mS (2 S to 20 S)1 mS (1 S to 10 S)
M20 μS (0 S to 200 mS)10 μS (0 S to 100 mS)
0.2 mS (200 mS to 2 S)0.1 mS (100 mS to 1 S)
L2 μS(0 S to 20 mS)1 μS(0 S to 10 mS)
20 μS(20 mS to 200 mS)10 μS(10 mS to 100 mS)
Accuracy of setting*3RangeH, M, and L±(0.5 % of set*4 + 0.5 % of f.s*5) + Vin /500 kΩ

*1 Conductance [S] = (Input current [A]/input voltage [V]) = (1/resistance [Ω]) *2 Conductance f.s *3 Converted value in terms of the input current, during remote sensing *4 set = input voltage × specified conductance = (input voltage/specified resistance) *5 f.s = Rated current of the specified range


Constant voltage mode (CV)

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
Operating rangeRangeH1.5 V to 150 V0 V to 150 V
L1.5 V to 15 V0 V to 15 V
Selectable range0 % to 105 % of f.s
ResolutionRangeH10 mV
L1 mV
Accuracy of settingRangeH and L±(0.1 % of set + 0.1 % of f.s)
Input current variation*112 mV

*1 During remote sensing


Voltmeter

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
Measurement range0 V to 150.0 V
Resolution15.75 V to 150 V0.01 V
0 V to 15.75 V0.001 V
Measurement accuracy±(0.1 % of rdg + 15 digits)

Ammeter

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
Measurement rangeRangeH0 A to 30 A0 A to 15 A
M0 A to 3 A0 A to 1.5 A
L0 mA to 300 mA0 mA to 150 mA
ResolutionRangeH0.001 A
M0.0001 A
L0.01 mA
Measurement accuracy±(0.2 % of rdg + 0.3 % of f.s)

Wattmeter *1

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
Measurement range0 W to 150 W0 W to 75 W
Resolution100 W minimum0.01 W
100 W or greater0.1 W

*1 Product of the measured voltage and measured current


Switching mode

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
Operating ModesCC and CR
Selectable frequency range1 Hz to 20 kHz
Duty cycle setting2 % to 98 %, 0.1 % steps
Frequency resolution1 Hz to less than 1 kHz1 Hz
1 kHz to less than 10 kHz10 Hz
10 kHz to 20 kHz100 Hz
Accuracy of frequency setting±(0.5 % of set )

Slew rate

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
Operation modeCC and CR
Setting range (CC)RangeH0.10 A/μs to 2.40 A/μs0.05 A/μ to 1.20 A/μs
M0.10 A/μs to 0.24 A/μs0.05 A/μ to 0.12 A/μs
L24 mA/μs*112 mA/μs*1
Setting range (CR)RangeH0.10 A/μs to 0.24 A/μs0.05 A/μ to 0.12 A/μs
M24 mA/μs*112 mA/μs*1
L2.4 mA/μs*11.2 mA/μs*1
Resolution0.01 A/μs
Setting accuracy*2±(10 % of set + 5 μs)

*1 Fixed value *2 Time to reach from 10 % to 90 % when the current is changed from 2 % to 100 % of the rated current of H range.


Soft start

Open in a new windowZOOM
Operation modeCC
Time setting range0.1, 1, 3, 10, 30, 100, or 300 ms
Time accuracy±(30 % of set +100 μs)

Sequence function

Open in a new windowZOOM
Operation modeCC and CR
Maximum number of steps255
Step execution time1 ms to 9999 s
Number of loops1 to 9999 (9999 is infinite loop)

Protection functions

Open in a new windowZOOM
Overvoltage protection (OVP)Turns off the load at 110 % of the rated voltage
Overcurrent protection (OCP)Set the value in the range of 0 % to 110 % of the rated current of H range. Trips at the value or 110% of the rated current of the range, whichever is less. The action taken when the OCP trips can be set to load off or limit.
Overpower protection (OPP)Set the value in the range of 0 % to 110 % of the rated power of H range. Trips at the value or 110% of the rated power of the range, whichever is less. The action taken when the OPP trips can be set to load off or limit.
Overheat protection (OHP)Trips when the heat sink temperature reaches 95 °C. The action taken when the OHP trips is to turn the load off.
Reverse connection protection (RVP)Short-term protection provided by a short-circuit system using a protection diode. The action taken when the OHP trips is to turn the load off.
Undervoltage protection (UVP)Set the value to off or in the range of 0 % to 100 % of the rated voltage. The action taken when the OHP trips is to turn the load off.

Communication function

Open in a new windowZOOM
GPIBIEEE std. 488.2-1994
SH1, AH1, T6, L4, SR1, RL1, PP0, DC1, DT1, C0, and E1
Supports the SCPI command set
Sets panel functions except the POWER switch and key lock and reads measured values
RS-232CD-SUB 9-pin connector (conforms to EIA-232-D)
Sets panel functions except the POWER switch and key lock and reads measured values
Baud rate: 2400, 4800, 9600, or 19200 bps; stop bit: 1; data length: 8 bits; parity: NONE; and flow control: XON/OFF.

Inter-frame control and external control

Open in a new windowZOOM
Inter-frame controlControls up to four slave frames from the master frame.
Enables you to turn on/off the load, recall presets ABC on all channels simultaneously, and recall setup memories 0 to 3.
External controlRecall input of preset mem-ories A, B, and CRecalls preset memories A, B, and C on all channels simultaneously
Setup memory recall inputRecalls the setup memory 0 to 3
Enable inputEnables the turning on/off of the load, recalling of presets ABC on all channels simultaneously, and recalling of setup memories 0 to 3.
Load-on inputTurns on the load on all channels simultaneously.
Load on status outputOn when the load is on (open collector output)
Alarm status outputOn when the alarm is on (open collector output)
Internal power output5 V and maximum output current of 100 mA
Input signalLow active, pull up to 5 V using 10 kΩ. Low level input voltage: 0 V to 1 V, high level input voltage: 4 V to 5 V
Output signalOpen drain, output withstand voltage of 30 VDC, output satura-tion voltage of approximately 0.7 V, and maximum output current of 100 mA.

Remote sensing

Open in a new windowZOOM

Remote sensing

Sensing voltage that can be compensated2 V for a single line

Other

ABC Preset MemoriesSaves settings (A, B, and C) for each operation mode of each range
Setup MemorySaves four sets of setup parameters
Elapsed time displayMeasures the time from when the load is turned on to when the load is turned off (0.1 s to 99999 s)
Auto load off timerTurns off the load after the specified time elapses (off or 1 s to 99999 s)
Delayed load-onTurns on the load after the specified time elapses (0 ms to 1 s, 10 ms steps)
Parallel operationPossible between adjacent load units (same model) in the frame.

External analog control

Open in a new windowZOOM
Power output12 V and maximum output current of 50 mA.
External voltage control input*1Operates in CC, CR, and CV modes. 0 % to 100 % of f.s in the range of 0 V to 10 V.
Load-on inputLow active (or high active), pull up to 5 V using 10 kΩ. Low level input voltage: 0 V to 1 V, high level input voltage: 4 V to 5 V
Current monitor output0 % to 100 % of the rated current in the range of 0 V to 10 V
CommonNegative pin electric potential of the load input terminal

*1 The time for updating the setting in CR or CV mode is approximately 100 ms.


General specifications

Open in a new windowZOOM
ModelPLZ150UPLZ70UA
WeightApprox. 2 kg (4.41 lb)
AccessoriesRear load input terminal cover1 pc.
Set of screws for the load input connector2 sets (M6 bolt, M6 nut, M6 spring washer, M4 screw)
Load unit attachment screws2 pcs. (M3-10 screws, attached to the unit)
Sensing terminal screw on the rear panel2 pcs. (M3-6 screws, attached to the unit)

Frame

Open in a new windowZOOM
ModelPLZ-30FPLZ-50F
Rated supply voltage100 VAC to 240 VAC (90 VAC to 250 V) single phase
Rated frequency50 Hz or 60 Hz (47 Hz to 63 Hz)
Power consumptionFrame alone33 VA or less40 VA or less
When load units are installed in all channels300 VAmax500 VAmax
Cooling methodForced air cooling using a heat sensing variable speed fan.
Operating temperature range0 °C to 40 °C (32 °F to 104 °F)
Operating humidity range20 % to 85 % RH (without condensation)
Storage temperature range–20 °C to 70 °C (-4 °F to 158 °F)
Storage humidity range90 % RH or less (without condensation)
Insulation resistanceBetween primary and chassis500 VDC, 30 MΩ or more (ambient humidity of 70% RH or less)
Withstanding voltageBetween primary and chassisNo abnormalities at 1500 VAC for 1 minute.
Earth continuity25 Aac, 0.1 Ω or less
Battery backupBacks up the setup data immediately before the power is turned off Battery life: 3 years or longer (at 25 °C)
Number of installable load modules35
Dimensions (mm)See outline drawing.
WeightFrame aloneApprox. 5 kg (11.02 lb)Approx. 7 kg (15.43 lb)
AccessoriesPower cord1 pc. (with SVT3, 18AWG, 3-prong plug, cable length of 2.4 m)
Blank panel (front panel)2 pcs. maximum*14 pcs. maximum*1
Protection dummy plug2 pcs. (for the FRAME CONT connector, attached to the unit)
Operation Manuals1 pc.
Electromagnetic compatibility*2*3Complies with the requirements of the following directive and standard.
EMC Directive 2014/30/EU
EN 61326-1 (Class A)
EN55011 (Class A*4, Group 1*5)
EN 61000-3-2
EN 61000-3-3
SafetyComplies with the requirements of the following directive and standard.
Low Voltage Directive 2014/35/EU*3
EN 61010-1 (Class I*6, Pollution degree 2*7)

*1 In products that have load units installed, blank panels are installed in the empty slots. In products that contain the frame alone, the maximum number of blank panels are installed. *2 Does not apply to specially ordered or modified PLZ-U *3 Limited to products that have the CE mark/UKCA mark on their panels. *4 This is a Class A equipment. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. *5 This is a Group 1 equipment. This product does not generate and/or use intentionally radio-frequency energy, in the from of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material or inspection/analysis purpose. *6 This is a Class I equipment. Be sure to ground the this product’s protective conductor terminal. The safety of this product is only guaranteed when the product is properly grounded. *7 Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution degree 2 assumes that only non-conductive pollution will occur except for an occasional temporary conductivity caused by condensation.


Dimensions

Unit: mm

PLZ-U Series External Dimensions

Active Area Diagram

PLZ70UA (0V input type)

Range H
Range H

Range M
Range M

Range L
Range L

PLZ150U (1.5V input type)

Range H
H

Range M
M

Range L
L
