Compact Wide-Range DC Power Supplies PWR-01 Series

Features

40V Type

Model	Voltage output	Current output	Output power
PWR401L	0V to 40V	0A to 40A	400W
PWR801L		0A to 80A	800W
PWR1201L		0A to 120A	1200W
PWR2001L		0A to 200A	2000W

80V Type

Product name	Voltage output	Current output	Output power
PWR401ML	0V to 80V	0A to 20A	400W
PWR801ML		0A to 40A	800W
PWR1201ML		0A to 60A	1200W
PWR2001ML		0A to 100A	2000W

240V Type

Product name	Voltage output	Current output	Output power
PWR401MH	0V to 240V	0A to 5A	400W
PWR801MH		0A to 10A	800W
PWR1201MH		0A to 15A	1200W
PWR2001MH		0A to 25A	2000W

650V Type

Product name	Voltage output	Current output	Output power
PWR401H	0V to 650V	0A to 1.85A	400W
PWR801H		0A to 3.70A	800W
PWR1201H		0A to 5.55A	1200W
PWR2001H		0A to 9.25A	2000W

Sequence function

This function automatically executes the pre-set contents (program) one operation at a time. Sequence programs cannot be set from the panel. It is created using commands. Once a sequence program is executed by remote control, the program is written to this product and can be executed from the panel. Once the program is written to this product, the program can be executed without a PC.

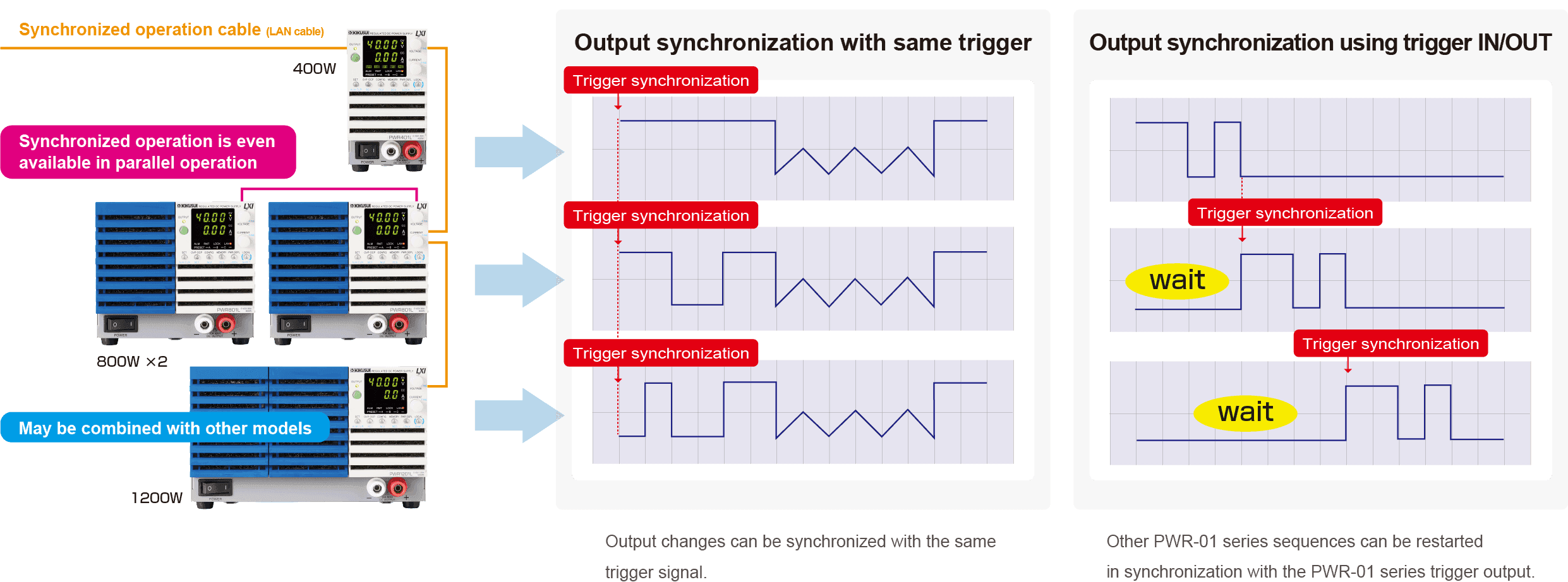

Synchronized Operation

This function synchronizes the resumption of a setting or Sequence function with a Trigger signal, allowing each model in the PWR-01 series (e.g., 400 W model and 800 W model, etc.) to be mixed and connected. Synchronous operation is possible even in Parallel operation. Synchronous operation requires various settings to be made by remote control using commands, but after the settings are made, synchronous operation can be performed without a PC.

Output synchronization by the same Trigger output

Communication Interface

Communication interfaces LAN (LXI), USB, and RS232C, which are indispensable for system upgrades, are provided as standard; when using RS232C, please purchase the optional D-sub 9P-RJ45 conversion cable (RD-8P/9P) separately. J1/J2 connectors for analog control are also provided.

J1 connector pin arrangement

Open in a new window ZOOM

PIN No	Signal name	Description
J1-1	VPGM	Terminal used to control the output voltage with an external voltage or external resistance. 0 V to 5 V; 0 % to 100 % of the rated output voltage (CF12: LO). 0 V to 10 V; 0 % to 100 % of the rated output voltage (CF12: HI).
J1-2	VMON	Output voltage monitor. 0 % to 100 % of the rated output voltage is generated as a voltage between 0 V and 5 V (CF13: LO) or a voltage between 0 V and 10 V (CF13: HI).
J1-3	REF OUT	Reference voltage for external resistance control. 5.25 V (CF12: LO) / 10.5 V (CF12: HI), maximum output current: 2.5 mA.
J1-4	PRL ON	On when parallel operation is in use and when output is on (output through an open-collector photo-coupler)
J1-5	A GND	External signal common for pins 1 to 3, 6 to 9, 11, 12, 14, 16, and 20. When remote sensing is not used, this is at the same electric potential as the negative output terminal. When remote sensing is used, this is at the same electric potential as the negative electrode (-S) of sensing input.
J1-6	ALM CLEAR	Alarm clear terminal. Alarms are cleared when a low level signal(0 V to 0.5 V) is received or shorted.
J1-7	I SUM	Current output terminal for parallel operation.
J1-8	PRL OUT	Positive output terminal for parallel operation.
J1-9	PRL COMP IN	Correction signal input terminal for parallel operation.
J1-10	A GND	External signal common for pins 1 to 3, 6 to 9, 11, 12, 14, 16, and 20. When remote sensing is not used, this is at the same electric potential as the negative output terminal. When remote sensing is used, this is at the same electric potential as the negative electrode (-S) of sensing input.
J1-11	IPGM	Terminal used to control the output current with an external voltage or external resistance. 0 V to 5 V; 0 % to 100 % of the rated output current (CF12: LO). 0 V to 10 V; 0 % to 100 % of the rated output current (CF12: HI).
J1-12	IMON	Output current monitor. 0 % to 100 % of the rated output current is generated as a voltage between 0 V and 5 V (CF13: LO) or a voltage between 0 V and 10 V (CF13: HI).
J1-13	PRL COM	Common for pin 4.
J1-14	PRL ALM	On when a protection function is activated during parallel operation or when an output shutdown signal is being received.
J1-15	A GND	External signal common for pins 1 to 3, 6 to 9, 11, 12, 14, 16, and 20. When remote sensing is not used, this is at the same electric potential as the negative output terminal. When remote sensing is used, this is at the same electric potential as the negative electrode (-S) of sensing input.
J1-16	SHUT DOWN	Output shutdown control terminal. The output is turned off when set to LOW (0 V to 0.5 V) or shorted.
J1-17	OUTPUT CONT	Output on/off terminal. On when set to LOW(0 V to 0.5 V) or shorted; off when set to HIGH(4.5 V or 5 V) or open (CF15: LO) On when set to HIGH(4.5 V to 5 V) or open; off when set to LOW(0 V or 0.5 V) or shorted (CF15: HI)
J1-18	PRL COMP OUT	Correction signal output terminal for parallel operation.
J1-19	PRL IN-	Negative input terminal for parallel operation.
J1-20	PRL IN+	Positive input terminal for parallel operation.

別ウインドウで開く

PIN No	Signal name	Description
J1-1	VPGM	Terminal used to control the output voltage with an external voltage or external resistance. 0 V to 5 V; 0 % to 100 % of the rated output voltage (CF12: LO). 0 V to 10 V; 0 % to 100 % of the rated output voltage (CF12: HI).
J1-2	VMON	Output voltage monitor. 0 % to 100 % of the rated output voltage is generated as a voltage between 0 V and 5 V (CF13: LO) or a voltage between 0 V and 10 V (CF13: HI).
J1-3	REF OUT	Reference voltage for external resistance control. 5.25 V (CF12: LO) / 10.5 V (CF12: HI), maximum output current: 2.5 mA.
J1-4	PRL ON	On when parallel operation is in use and when output is on (output through an open-collector photo-coupler)
J1-5	A GND	External signal common for pins 1 to 3, 6 to 9, 11, 12, 14, 16, and 20. When remote sensing is not used, this is at the same electric potential as the negative output terminal. When remote sensing is used, this is at the same electric potential as the negative electrode (-S) of sensing input.
J1-6	ALM CLEAR	Alarm clear terminal. Alarms are cleared when a low level signal(0 V to 0.5 V) is received or shorted.
J1-7	I SUM	Current output terminal for parallel operation.
J1-8	PRL OUT	Positive output terminal for parallel operation.
J1-9	PRL COMP IN	Correction signal input terminal for parallel operation.
J1-10	A GND	External signal common for pins 1 to 3, 6 to 9, 11, 12, 14, 16, and 20. When remote sensing is not used, this is at the same electric potential as the negative output terminal. When remote sensing is used, this is at the same electric potential as the negative electrode (-S) of sensing input.
J1-11	IPGM	Terminal used to control the output current with an external voltage or external resistance. 0 V to 5 V; 0 % to 100 % of the rated output current (CF12: LO). 0 V to 10 V; 0 % to 100 % of the rated output current (CF12: HI).
J1-12	IMON	Output current monitor. 0 % to 100 % of the rated output current is generated as a voltage between 0 V and 5 V (CF13: LO) or a voltage between 0 V and 10 V (CF13: HI).
J1-13	PRL COM	Common for pin 4.
J1-14	PRL ALM	On when a protection function is activated during parallel operation or when an output shutdown signal is being received.
J1-15	A GND	External signal common for pins 1 to 3, 6 to 9, 11, 12, 14, 16, and 20. When remote sensing is not used, this is at the same electric potential as the negative output terminal. When remote sensing is used, this is at the same electric potential as the negative electrode (-S) of sensing input.
J1-16	SHUT DOWN	Output shutdown control terminal. The output is turned off when set to LOW (0 V to 0.5 V) or shorted.
J1-17	OUTPUT CONT	Output on/off terminal. On when set to LOW(0 V to 0.5 V) or shorted; off when set to HIGH(4.5 V or 5 V) or open (CF15: LO) On when set to HIGH(4.5 V to 5 V) or open; off when set to LOW(0 V or 0.5 V) or shorted (CF15: HI)
J1-18	PRL COMP OUT	Correction signal output terminal for parallel operation.
J1-19	PRL IN-	Negative input terminal for parallel operation.
J1-20	PRL IN+	Positive input terminal for parallel operation.

J2 connector terminal arrangement

PIN No	Signal name	Description
J2-1	STATUS COM	Common for pins 2 to 6. *1
J2-2	OUT ON STATUS	Outputs a signal when output is on (output through an open-collector photocoupler). *2
J2-3	PWR ON STATUS	Outputs a low level signal when the power is on (output through an open-collector photocoupler). *2
J2-4	ALM STATUS	Outputs a signal when a protection function (OVP, OCP, FOCP, OHP, SENSE, AC-FAIL) is activated or when an output shutdown signal is being received (output through an open-collector photocoupler). *2
J2-5	CV STATUS	Outputs a signal during CV mode (output through an open-collector photocoupler) *2
J2-6	CC STATUS	Outputs a signal during CC mode (output through an open-collector photocoupler). *2

PIN No	Signal name	Description
J2-1	STATUS COM	Common for pins 2 to 6. *1
J2-2	OUT ON STATUS	Outputs a signal when output is on (output through an open-collector photocoupler). *2
J2-3	PWR ON STATUS	Outputs a low level signal when the power is on (output through an open-collector photocoupler). *2
J2-4	ALM STATUS	Outputs a signal when a protection function (OVP, OCP, FOCP, OHP, SENSE, AC-FAIL) is activated or when an output shutdown signal is being received (output through an open-collector photocoupler). *2
J2-5	CV STATUS	Outputs a signal during CV mode (output through an open-collector photocoupler) *2
J2-6	CC STATUS	Outputs a signal during CC mode (output through an open-collector photocoupler). *2

J1/J2 connector specifications

	J1 connector	J2 connector
Connector type	WF2549-2WR10S3T01（WCON）	WF2549-2WR03S3T01（WCON）
Housing type	WF2549-2H10W01（WCON）	WF2549-2H03W01（WCON）
Terminal (pin)	WF2549-TPS302（WCON）	WF2549-TPS302（WCON）
Wire diameter (core wire)	AWG22 or AWG24	AWG22 or AWG24
Manual pressure welding tool	SN-28B (IWISS) or an equivalent product	SN-28B (IWISS) or an equivalent product

	J1 connector	J2 connector
Connector type	WF2549-2WR10S3T01（WCON）	WF2549-2WR03S3T01（WCON）
Housing type	WF2549-2H10W01（WCON）	WF2549-2H03W01（WCON）
Terminal (pin)	WF2549-TPS302（WCON）	WF2549-TPS302（WCON）
Wire diameter (core wire)	AWG22 or AWG24	AWG22 or AWG24
Manual pressure welding tool	SN-28B (IWISS) or an equivalent product	SN-28B (IWISS) or an equivalent product

Safe and easy-to-use front output terminal

A front output terminal (up to 10 A) is provided as standard for benchtop use. The output terminals should be connected with safety plugs. *The specifications of this product are defined by the rear output terminal.

External analog control function

The PWR-01 series is equipped with the interfaces required for analog external control and monitoring of test power supplies, such as external voltage and resistance control. External signal input and status signal output can be performed using the J1/J2 connectors on the rear panel; when using JI/J2, please purchase the optional J1/J2 connector plug kit (OP01-PWR-01) separately.

Control of Output voltage and Output current

Control by external voltage (Vext)

Output voltage and Output current can be controlled by externally applying voltage to the PWR-01 series.

External control by external resistor (Rext)
Output voltage and Output current can be controlled by varying the externally connected resistor.

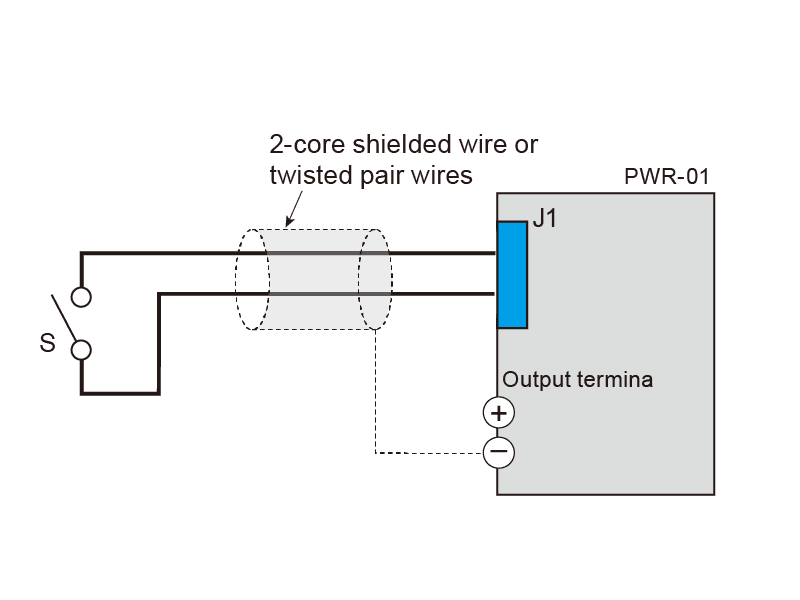

ON/OFF control of outputs by external contact
The output of the PWR-01 series can be turned on and off externally.

Output shutdown control via external contacts
It is possible to block the output of the PWR-01 series from the outside.

Alarm clearing by external contact
It is possible to clear the alarm of the PWR-01 series externally.

Monitoring Operation mode
External monitoring of Output voltage and Output current

Bleeder ON/OFF Function

The PWR-01 series has a capacitor connected to the output terminal and a Bleeder circuit to discharge its charge when the OUTPUT is OFF. For example, if a battery or other device is connected to the output terminals, the Bleeder circuit will discharge the charge of the battery or battery even when the OUTPUT is OFF, if the Bleeder circuit is ON. In this case, setting the Bleeder circuit to OFF prevents excessive discharge. This makes it possible to omit the diode for preventing reverse current that is necessary for charging a battery or a battery, etc.

Variable internal resistance feature

This function drops the Output voltage value according to the Output current value based on the set resistance value in constant voltage operation. Internal resistance of rechargeable batteries, solar cells, fuel cells, etc. can be simply simulated.

Variable internal resistance feature
Setting range

Open in a new window ZOOM

	PWR401L	PWR401ML	PWR401MH	PWR401H	PWR801L	PWR801ML	PWR801MH	PWR801H	PWR1201L	PWR1201ML	PWR1201MH	PWR1201H	PWR2001L	PWR2001ML	PWR2001MH	PWR2001H
Vrtg [V]	40	80	240	650	40	80	240	650	40	80	240	650	40	80	240	650
Irtg [A]	40	20	5	1.85	80	40	10	3.7	120	60	15	5.55	200	100	25	9.25
Rint [Ω]	0.001 to 1.000	0.001 to 4.000	0.01 to 36.00	0.1 to 263.5	0.001 to 0.500	0.001 to 2.000	0.01 to 18.00	0.1 to 131.8	0.001 to 0.333	0.001 to 1.333	0.01 to 12.00	0.1 to 87.84	0.001 to 0.200	0.001 to 0.800	0.01 to 7.20	0.01 to 52.70
Resolution *1	0.001	0.001	0.01	0.1	0.001	0.001	0.01	0.1	0.001	0.001	0.01	0.01	0.001	0.001	0.01	0.01

Vrtg : rated output voltage, Irtg : rated output current, Rint : internal resistance
0 ＜ Rint(min)≦ Rint(max)
L type, ML type: Rint (max)= Vrtg/ Irtg
MH type, H type: Rint (max)= Vrtg/ Irtg x 3/4
The variable internal resistance function can be configured only in constant voltage(CV) mode.
*1. Resolution when FINE is in use
The maximum internal resistance that can be set during parallel operation is the value obtained by dividing Rint (max) during standalone operation by the number of units in parallel operation. The resolution is the value obtained by dividing the resolution during standalone operation by the number of units in parallel operation.

Output ON / OFF
Delay function

The delay time (DELAY TIME) from when the OUTPUT key is turned on/off to when the output is actually turned on/off can be set. This is useful when you want to turn the outputs off and on with a time delay set according to the characteristics of the load.

Output on/off delay function

Rise state setting when output is on

Operation mode (CC (Constant Current) priority/CV (Constant Voltage) priority) can be set when Output current is turned on. Prevents overshooting when output is turned on.

Soft start/stop function

Rise and fall time of Output current can be set. This is useful when the load cannot follow the sudden rise or fall of Output current, or when the Overcurrent protection circuit is activated.

Soft start and soft stop function

Master-slave parallel operation

Master-slave parallel operation is a function in which one unit is connected as the master unit (main unit) and other units of the same model are connected as slaves (slave units). The entire connected system is controlled by the master unit. Output current can be increased (Maximum Output current: Single unit’s Rated current x Number of units in parallel) through Master-slave parallel operation. The maximum number of units in parallel, including the master unit, is 3 for the 400 W and 800 W models and 2 for the 1200 W and 2000 W models. The difference in Output voltage and Output current between the master and slave units must be within approximately 5% of the Rating.

Series operation

Up to two units can be connected in series, and the sum of the Output voltage of the two units is supplied to the load. Setting accuracy of voltage is that of a single unit. One-control operation is not available. H type cannot be operated in series.

Preset memory function

There is a Preset memory that can store three combinations of each set value for Voltage, Current, OVP, OCP, and UVL. The stored set values can be recalled from the Preset memory when necessary.

Shortcut functions for configuration settings

Configuration items can be registered to keys on the front panel. This saves you the trouble of having to search for and set configuration items from the configuration menu, and improves operational efficiency by registering frequently used configuration items. Up to three configuration items can be registered.

Multichannel
(VMCB*)

Multichannel (VMCB*) Multichannel (VMCB) allows you to connect a single PC to multiple PWR-01 series units (up to 31 units) to create a virtual multichannel power system. This is useful for matching the control timing of multiple PWR-01 series units and for saving communication ports. *Virtual multi-channel path

Multichannel

tough performance

Guaranteed operating temperature: 50°C
Storage temperature: -25°C to +60°C

tough performance

Easy access with embedded web server

The PWR-01 series can be controlled and monitored by accessing the web server embedded in the PWR-01 series from a web browser on a PC, smartphone, or tablet.

Easy access with embedded web server

Power type operation with 3 to 4 times ratio (operating area)

The operating area is a “3~4x ratio” Power type with a wide range of voltage and Current setting combinations.
For example, the PWR1201ML, a 1200 W model with Output rating power, can operate seamlessly from 80 V-15 A to 20 V-60 A.

Power type operation with 3 to 4 times ratio (operating area)

Specifications

Open in a new window ZOOM

Specifications	Output			Ripple		Power fluctuation		Load variation		Other
Model	CV	CC	Rated power	CV	CC	CV	CC	CV	CC	Input current	Weight
Model	V	A	W	mVrms	mArms	mV	mA	mV	mA	AC（100／200V）A	kg/Ib
PWR401L	40	40	400	5	80	±6	±6	±6	±13	5.6/2.8	3
PWR401ML	80	20		5	40	±10	±4	±10	±9
PWR401MH	240	5		20	12	±26	±2.5	±26	±6.0
PWR401H	650	1.85		50	6	±67	±2.2	±67	±5.4
PWR801L	40	80	800	5	160	±6	±10	±6	±21	11.2/5.6	5.5
PWR801ML	80	40		5	80	±10	±6	±10	±13
PWR801MH	240	10		20	24	±26	±3	±26	±7.0
PWR801H	650	3.70		50	12	±67	±2.4	±67	±5.7
PWR1201L	40	120	1200	5	240	±6	±14	±6	±29	16.8/8.4	7.5
PWR1201ML	80	60		5	120	±10	±8	±10	±17
PWR1201MH	240	15.0		20	36	±26	±3.5	±26	±8.0
PWR1201H	650	5.55		50	18	±67	±2.6	±67	±6.1
PWR2001L	40	200	2000	5	400	±6	±22	±6	±45	28.0/14.0	13
PWR2001ML	80	100		5	200	±10	±12	±10	±25
PWR2001MH	240	25		20	60	±26	±4.5	±26	±10
PWR2001H	650	9.25		50	30	±67	±2.9	±67	±6.9
