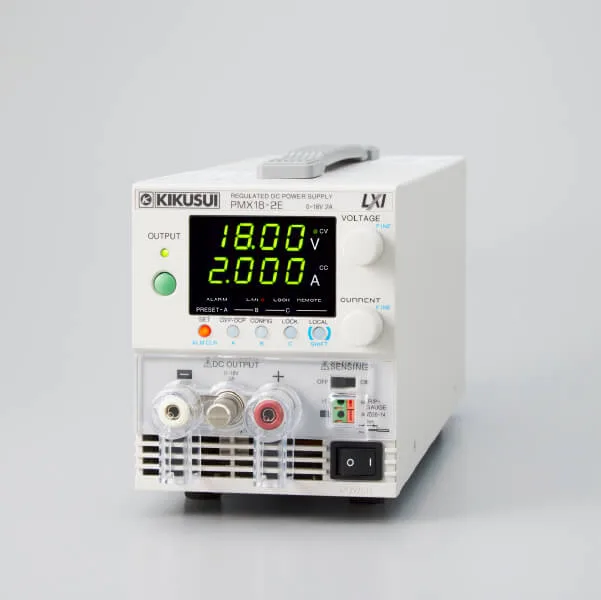

PMX-E Series DC Power Supplies

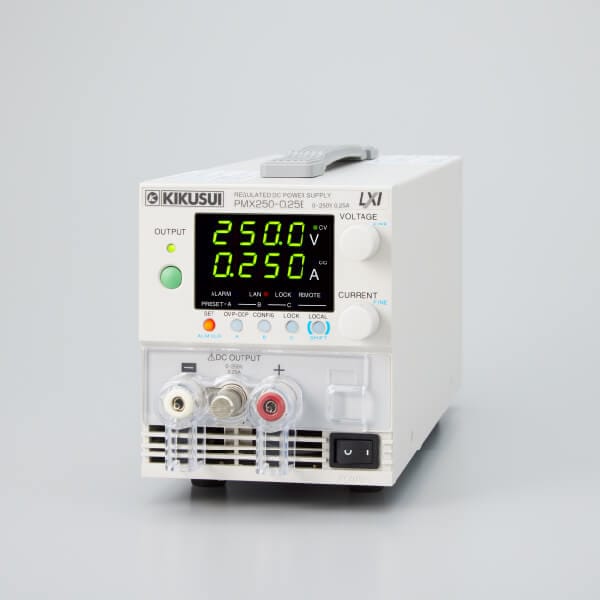

Compact DC Power Supply

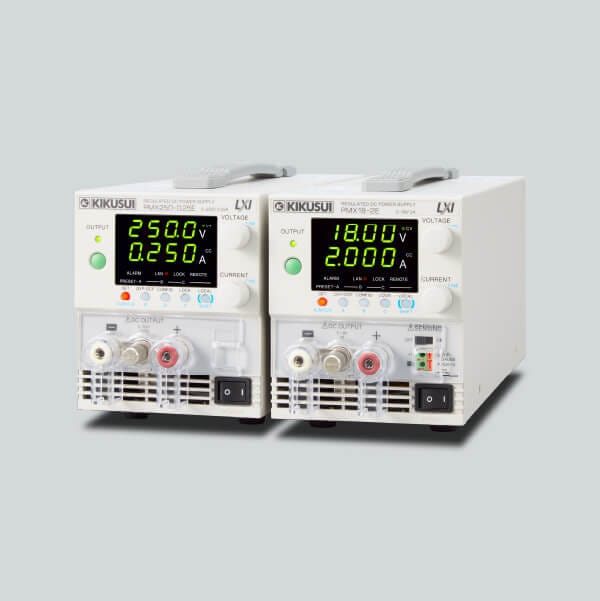

PMX-E Series

Price range: 72,000円 through 85,000円

Built-in memory sequencing
Output off timer function
Output-on/off delay function
Soft start and soft stop function
Equipped with output off timer and a bleeder circuit selection functions.
Watchdog
external control (Ext Ctrl) functions detect malfunctions

SKU	Output CV [V]	Output CC [A]	標準価格	WEBかんたんお見積り
PMX18-2E	18V	2	72,000円（税込：79,200円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX18-5E	18V	5	78,000円（税込：85,800円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX35-1E	35V	1	72,000円（税込：79,200円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX35-3E	35V	3	78,000円（税込：85,800円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX70-1E	70V	1	80,000円（税込：88,000円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX110-0.6E	110V	0.6	85,000円（税込：93,500円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る

SKU: PMX-E

Catalog
Manual
2D CAD
Updater/Driver

Line-up

SKU	Output CV [V]	Output CC [A]	標準価格	WEBかんたんお見積り
PMX18-2E	18V	2	72,000円（税込：79,200円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX18-5E	18V	5	78,000円（税込：85,800円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX35-1E	35V	1	72,000円（税込：79,200円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX35-3E	35V	3	78,000円（税込：85,800円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX70-1E	70V	1	80,000円（税込：88,000円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る
PMX110-0.6E	110V	0.6	85,000円（税込：93,500円）	ログインして見積書発行この製品はすでに見積書リストに追加されています見積書リストを見る

Product Overview

Based on the popular “Dropper × Interface” design, these compact,
low-noise power supplies feature standard communications control!

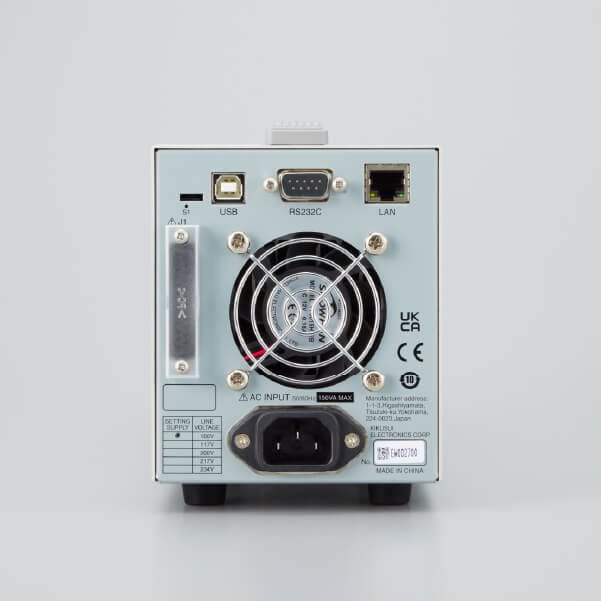

The PMX-E Series compact, high-performance DC power supplies provide constant voltage (CV) and constant current (CC) operation. This series provides the low-noise performance distinctive to the series-dropper method and comes with the communication interfaces essential for system integration: LAN, USB, and RS-232C. LAN communication enables control and monitoring using web browsers on PCs, smartphones, and tablets.

The PMX-E Series also has analog external control and output monitoring, multiple protection functions, a memory function, and other features, ensuring high versatility. Ergonomically designed for benchtop use, all models come with front-facing output terminals that improve work efficiency and allow users to easily connect load harnesses.
The 18 V and 35 V models are equipped with remote sensing to reduce voltage drop caused by the resistance of the load wiring.

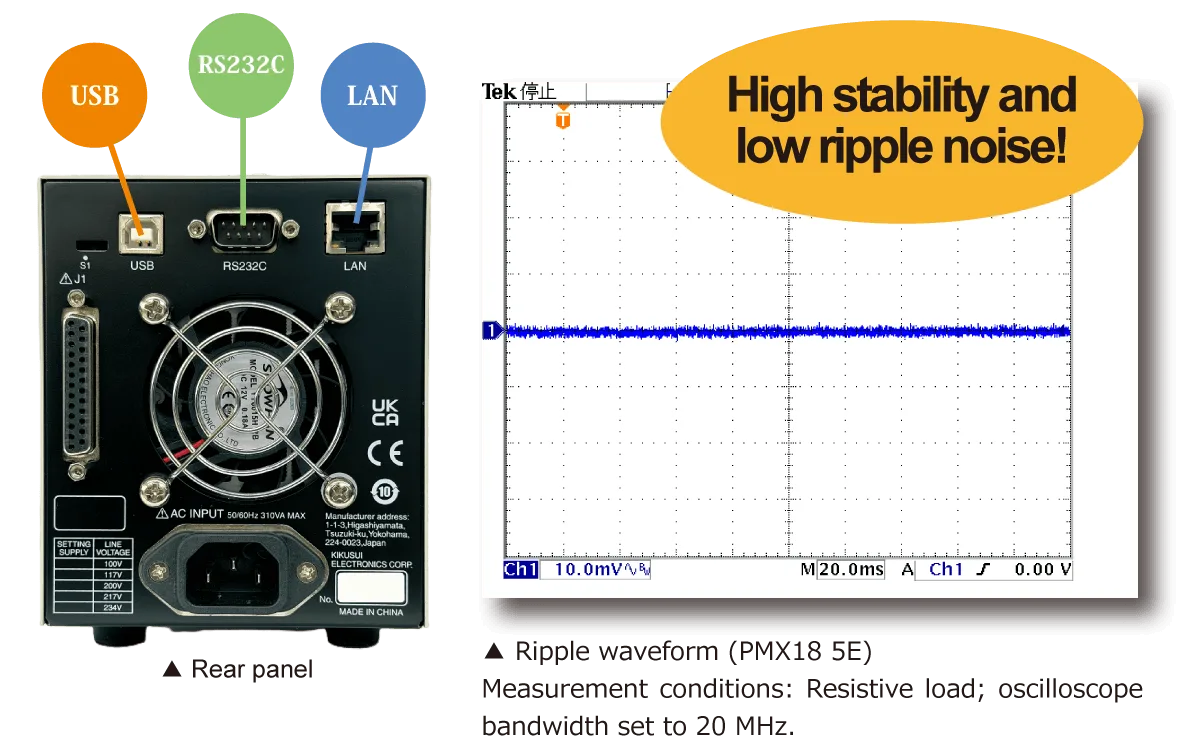

High stability and low ripple noise!

New features users have been asking for!

Built-in memory sequencing

Now you can combine up to three waveforms without the PC!

Built-in memory sequencing

Output off timer function

Output can be turned off by upper/lower voltage, upper/lower current, or time settings.

Output off timer function

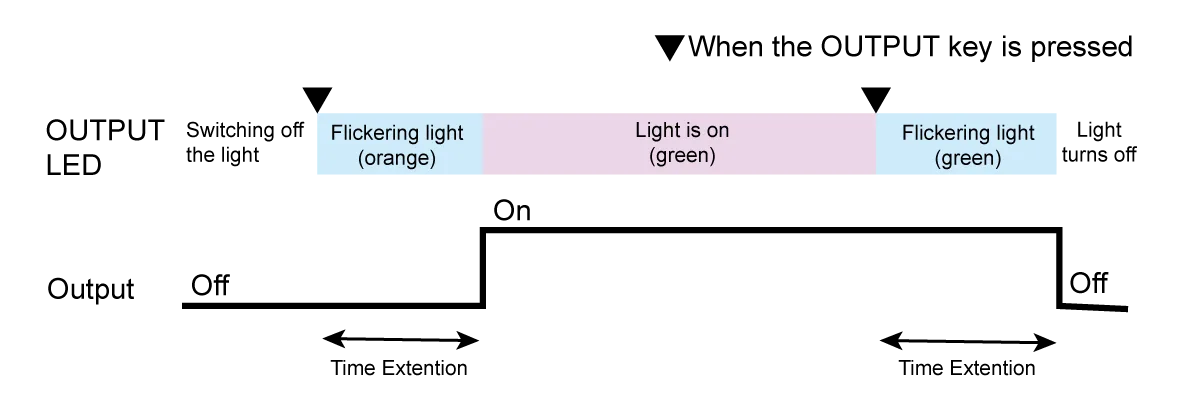

Output-on/off delay function

Set a delay between pressing the OUTPUT key and when the output turns on or off. This function is an excellent choice for timing control based on the load’s characteristics.

Output-on/off delay function

Level up from PMX-A! Enhanced features make the new series even more convenient!

Equipped with output off timer and a bleeder circuit selection functions.
Watchdog and external control (Ext Ctrl) functions detect malfunctions.
Communication speed is improved by reducing jitter during SCPI communication control (approximately 100 ms for PMX-A vs. approximately 2 ms for PMX-E using the OUTPut command; reference values)

Specifications

Open in a new window

Model			PMX18-2E	PMX18-5E	PMX35-1E	PMX35-3E	PMX70-1E	PMX110-0.6E
AC input
Rated input rating			100 VAC, 50 Hz / 60 Hz, single phase (117 / 200 / 217 / 234 VAC available as factory options)
Input voltage range			± 10 %
Input frequency range			47 Hz to 63 Hz
Inrush current (MAX)			50 A	60 A	45 A	60 A	65 A	55 A
Power			150 VA	310 VA	150 VA	310 VA	230 VA	210 VA
Output
Rating	Output voltage		18.00 V	18.00 V	35.00 V	35.00 V	70.00 V	110.0 V
	Output current		2.000 A	5.000 A	1.000 A	3.000 A	1.000 A	0.600 A
	Output power		36 W	90 W	35 W	105 W	70 W	66 W
Voltage	Setting range		0 V to 18.90 V	0 V to 18.90 V	0 V to 36.75 V	0 V to 36.75 V	0 V to 73.50 V	0 V to 115.5 V
	Setting resolution *1		1 mV				2 mV	10 mV
	Setting accuracy		± (0.2 % of setting + 0.1 % of rating)
	Power fluctuation*2		±1 mV	±1 mV	±3 mV	±3 mV	±5 mV	±7 mV
	Load variation*3		±2 mV	±5 mV	±3 mV	±4 mV	±5 mV	±7 mV
	Transient response *4		50 μs				100 μs
	Ripple noise (rms) *5		0.5 mV (1 mV)	0.5 mV	0.5 mV (1 mV)	0.5 mV	1 mV	2 mV
	Rise time *6	Rated load	120 ms or less				150 ms or less	120 ms or less
	Rise time *6	No load	120 ms or less				150 ms or less	120 ms or less
	Fall time *7	Rated load	50 ms or less				50 ms or less	50 ms or less
	Fall time *7	No load	120 ms or less				150 ms or less	120 ms or less
	Max. remote sensing compensation voltage		0.6 V (one‑way)				–
	Temperature coefficient (TYP)		100 ppm/℃
Current
	Setting range		0 A to 2.10 A	0 A to 5.25 A	0 A to 1.05 A	0 A to 3.15 A	0 A to 1.050 A	0 A to 0.630 A
	Setting resolution *1		0.1 mA
	Setting accuracy		± (0.3 % of setting + 0.1 % of rating)
	Line regulation		±5 mA				±2 mA	±2 mA
	Load regulation		±5 mA				±5 mA	±5 mA
	Ripple noise (rms) *5		1 mA	2 mA	1 mA	1 mA	1 mA
	Temperature coefficient (TYP)		200 ppm/°C

*1 It’s possible to set a value equal to one-tenth of the smallest digit by using the SHIFT key in combination with the knob, or via communication command. *2 100 VAC～ 90 VAC, or 100 VAC～ 110 VAC, at rated load. *3 0% to 100% of the output voltage or output current. *4 The time required for the output voltage to return to within ± (0.05% + 10 mV) of the rated output voltage when the load current is varied between 10% and 100% of rated output current. *5 At rated load. Measurement frequency bandwidth: 10 Hz～ 1 MHz. *6 Time required for the output voltage to rise to between 10% and 90% of the rated output after the output is turned on. *7 The time it takes for the output voltage to drop to between 90% and 10% of the rated output when the output is turned off.
