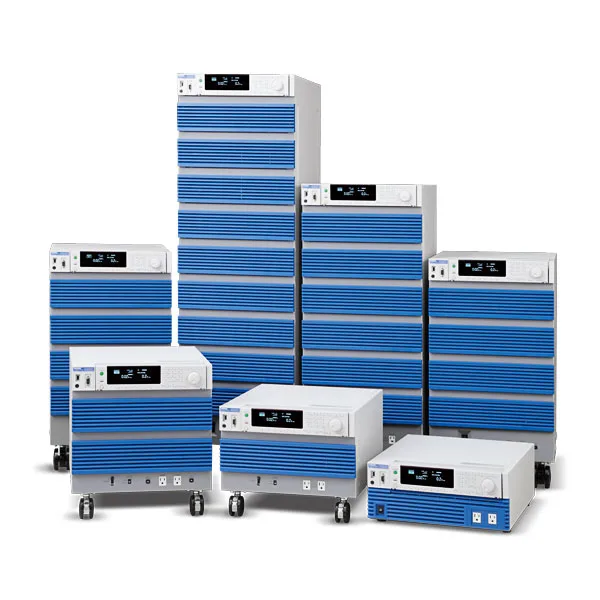

High-Performance Multi-Functional AC Power Supplies
PCR-LE Series
PCR-LE-SERIES
Price range: 1,700,000円 through 4,100,000円
- High-speed Linear Amp with Stable, High-quality Output
- Capable of various power line abnormality simulations and sequence operation
- Single-phase 500 VA to 9 kVA, supporting the system for the single-phase, and expandable with optional drivers for the single-phase three-wire, and three-phase operation
- Expandable capacity up to 27 kVA (single-phase), 54 kVA (single-phase three-wires), and 81 kVA (three-phase)
- Equipped with various measuring functions
- Features a full range of measuring functions and supports AC, DC, and AC + DC Outputs
- Detachable front panel
- Eco-friendly function equipped
*Discontinued, while supplies last: PCR3000LE.
Discontinued: PCR500LE, PCR1000LE, PCR2000LE.
For PCR12000LE2, PCR18000LE2, and PCR27000LE2, installation costs are required separately.
| Image | SKU | Entry force: skin phase power (below kVA) | Output rating AC mode: Power capacity | 標準価格 | WEBかんたんお見積り |
|---|---|---|---|---|---|
 | PCR500LE | 0.93 | 500VA | 550,000円 （税込：605,000円） | |
 | PCR1000LE | 1.8 | 1kVA | 760,000円 （税込：836,000円） | |
 | PCR2000LE | 3.6 | 2kVA | 1,060,000円 （税込：1,166,000円） | |
 | PCR3000LE | 5.5 | 3kVA | 1,700,000円 （税込：1,870,000円） | |
| PCR4000LE | 7.3 | 4kVA | 1,990,000円 （税込：2,189,000円） | |
 | PCR6000LE | 10.6 | 6kVA | 2,900,000円 （税込：3,190,000円） | |
 | PCR9000LE | 15.7 | 9kVA | 4,100,000円 （税込：4,510,000円） |
Line-up
| Product Images | Model | Price | Output capacity | Maximum output current | AC mode (L/H range) | DC mode (L/H range) | ||
|---|---|---|---|---|---|---|---|---|
| Voltage | Maximum output current | Voltage | Maximum output current | |||||
 | PCR500LE | 550,000円 （税込：605,000円） | Single-phase 500 VA | 5 A / 2.5 A | 1 V to 150 V / 2 V to 300 V | 5 A / 2.5 A | ±1.4 V to ±212 V / ±2.8 V to ±424 V | 3.5 A / 1.75 A |
 | PCR1000LE | 760,000円 （税込：836,000円） | Single-phase 1 kVA | 10A / 5A | 10A / 5A | 7A / 3.5A | ||
 | PCR2000LE | 1,060,000円 （税込：1,166,000円） | Single-phase 2 kVA | 20A / 10A | 20A / 10A | 14A / 7A | ||
 | PCR3000LE | 1,700,000円 （税込：1,870,000円） | Single-phase 3 kVA | 30A / 15A | 30A / 15A | 21A / 10.5A | ||
| PCR4000LE | 1,990,000円 （税込：2,189,000円） | Single-phase 4 kVA | 40A / 20A | 40A / 20A | 28A / 14A | ||
 | PCR6000LE | 2,900,000円 （税込：3,190,000円） | Single-phase 6 kVA | 60A / 30A | 60A / 30A | 42A / 21A | ||
 | PCR9000LE | 4,100,000円 （税込：4,510,000円） | Single-phase 9 kVA | 90A / 45A | 90A / 45A | 63A / 31.5A | ||
Specifications
Input ratings (AC rms)
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltage | 85 Vac to 132 Vac /170 Vac to 250 Vac *1 | 170Vac to 250Vac | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | 170Vac to 250Vac | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | |||||
| Phase | Single phase | Single phase | Three phase 3-wire | Three phase 4-wire | Three phase 3-wire | Three phase 4-wire | ||||
| Frequency | 47 Hz to 63 Hz | |||||||||
| Apparent power | Approx. 0.93 kVA | Approx. 1.8kVA | Approx. 3.6kVA | Approx. 5.5kVA | Approx. 7.3kVA | Approx. 10.6 kVA | Approx. 15.7 kVA | |||
| Power factor *2 | 0.97 (TYP) | |||||||||
| Max. current *1 | 11.3A/5.5A | 22A/10.8A | 44A/21.5A | 66A/32A | 88A/43A | 64A | 38A | 21A | 55A | 30A |
*1 Input 100V system/200V system
*2 Input voltage 100V/200V, Output voltage 100V/200V, Output current Rating, Load power factor 1, Output frequency 40Hz to 999.9Hz
AC mode output ratings (AC rms)
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltage (Output L/H range) | 1 V to 150 V / 2 V to 300 V | |||||||||
| Resolution | 0.1 V | |||||||||
| Voltage setting range | 0 V to 152.5 V / 0 V to 305.0 V | |||||||||
| Voltage setting accuracy (output L range, output H range) *3 | ± (0.3 % of set + 0.6 V) | |||||||||
| Max. current*4 | 5 A/2.5 A | 10A/5A | 20A/10A | 30A/15A | 40A/20A | 60A/30A | 90A/45A | |||
| Phase | Single phase | |||||||||
| Power capacity | 500VA | 1kVA | 2kVA | 3kVA | 4kVA | 6kVA | 9kVA | |||
| Maximum peak current *5 | Max. current (rms) × 4 (TYP) | |||||||||
| Max. reverse current *6 | 30 % of the max. current (rms) | |||||||||
| Load power factor | 0 to 1 (leading or lagging) *4 | |||||||||
| Frequency *4 | 1 Hz to 999.9 Hz | |||||||||
| Resolution | 0.01 Hz (1.00 Hz to 100.0 Hz), 0.1 Hz (100.0 Hz to 999.9 Hz) | |||||||||
*3 Output frequency 45Hz to 65Hz, No load, at room temperature
*4 Output voltage 1V to 100V/2V to 200V, load power factor 0.8 to 1 Output voltage 100V to 150V/200V to 300V, Output current is reduced according to Output voltage Output frequency 1Hz to 40Hz, Output current is reduced according to Output frequency When the output frequency is between 1Hz and 40Hz, the Output current is reduced according to the output frequency.
*5 For capacitor-input type rectifier load (but limited by the RMS value of Output rating current)
*6 At 100V/200V output voltage and 40Hz to 999.9Hz output frequency (when the phase of reverse power flow current is -180 deg relative to Output voltage)
DC mode output ratings
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltage (Output L/H range) | ±1.4 V to ±212 V / ±2.8 V to ±424 V | |||||||||
| Resolution | 0.1 V | |||||||||
| Voltage setting range | -215.0 V to +215.5 V / -431.0 V to +431.0 V | |||||||||
| Voltage setting accuracy (output L range, output H range) *7 | ±(0.05 % of set + 0.05/0.1 V) | |||||||||
| Max. current *8 | 3.5A/1.75A | 7A/3.5A | 14A/7A | 21A/10.5A | 28A/14A | 42A/21A | 63A/31.5A | |||
| Max. instantaneous current *9 | Max. current (rms) × 3.6 | |||||||||
| Power capacity | 350W | 700W | 1.4kW | 2.1kW | 2.8kW | 4.2kW | 6.3kW | |||
*7 No load, at room temperature
*8 Output voltage ± 100V to ± 212V/ ± 200V to ± 424V, Output current is reduced according to Output voltage.
*9 Limited by the RMS value of Rated output current
Output voltage stability
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Source effect *9 | Within ±0.1 % | |||||||||
| Load regulation (output L range, output H range) *11 | Within ±0.1 V, within ±0.2 V | |||||||||
| Output frequency FAST variation *12 | FAST | ±0.2 % or less | – | |||||||
| MEDIUM | Within ±0.3 % | |||||||||
| Ripple noise DC mode (5Hz to 1MHz component) | 0.15 Vrms or less | 0.2 Vrms or less | 0.25 Vrms or less | |||||||
| Ambient temperature variation *13 | 100 ppm/°C (TYP) | |||||||||
*10 For changes in the Rating Range
*11 Output voltage 80V to 150V/160V to 300V for 0 to 100% change of Rating and load power factor 1. At output terminal block. In response mode FAST and MEDIUM.
*12 At 40Hz to 999.9Hz
Output voltage variation with reference to 200 Hz for Output voltage 80 V to 150 V/160 V to 300 V and Load power factor 1.
*13 Output voltage range 100V/200V and Output current 0A for change in Output rating range
Output frequency stability, output voltage waveform distortion ratio, output voltage response speed, efficiency
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Output frequency stability *14 | Within ±5×10– 5 | |||||||||
| Setting accuracy | Within ±1×10– 4 | |||||||||
| Output voltage waveform distortion ratio*15 | FAST | ±0.2 % or less | – | |||||||
| MEDIUM | ±0.3 % or less | |||||||||
| Output voltage response speed*16 | FAST | 20 μs (TYP) | – | |||||||
| MEDIUM | 30 μs (TYP) | |||||||||
| Efficiency *17 | 54 % or more, 56 % or more | 55 % or more, 57 % or more | 58 % or more | |||||||
*14 For all changes in Rating Range
*15 Output voltage 80V to 150V/160V to 300V, load power factor 1
*16 For Output voltage 100V/200V and Load Power Factor 1, for Output current 0A ←→ change of Rated current.
*17 Input voltage 100V/200V, Output voltage 100V/200V, Output current Rating, Load power factor 1, Output frequency 40Hz to 999.9Hz
Meters (fluorescent display)
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltmeter *18 | Resolution | 0.1 V | ||||||||
| Accuracy | ± (1 % of rdng + 2 digits) (10 V to 424 V and at room temperature) | |||||||||
| Ammeter *18 | Resolution | 0.01 A | 0.1 A | |||||||
| Accuracy | ±(1 % of rdng + 2 digits) (5 % of the max. rated current to max. rated current and at room temperature) | |||||||||
| Wattmeter *19 | Resolution | 0.1 W / 1W | 1 W | |||||||
| Accuracy | ±(1 % of rdng +3 digits) (10 % of the rated power capacity to the rated power capacity, when the load power factor is 1, and at room temperature.) | |||||||||
*18 True RMS Display, in waveforms with crest factor 3 or less.
DC and at output frequencies from 40Hz to 999.9Hz. in RMS and AVE
*19 At an output frequency of 45Hz to 65Hz
BNC terminals
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | ||
|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | ||||||
| SEQ TRIG OUT *20 | Pulse width approx. 10 μs, open collector output, pullup at +5 V and approx. 10 kΩ serial resistance approx. 220 Ω, maximum sink current 10 mA, BNC connector | ||||||||
| SEQ STAT OUT *20 | Step time output, open collector output, pullup at +5 V and approx. 10 kΩ serial resistance approx. 220 Ω, maximum sink current 10 mA, BNC connector | ||||||||
| SEQ TRIG IN *20 | Operating pulse width 10 μs or greater, photo-coupler input, driving voltage 5 V, serial resistance approx. 470 Ω, active with 7 mA source, BNC connector | ||||||||
*20 Signals are isolated from the output terminals, but the common of each signal is common.
Logical configuration is also possible.
Limit Values and Protection Functions
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltage | AC voltage upper limit / AC voltage lower limit | 0.0 V to 305.0 V | ||||||||
| DC voltage upper limit / DC voltage lower limit | -431.0 V to +431.0 V | |||||||||
| Output Overvoltage protection AC/AC+DC mode | 0.0 V to 474.1 V | |||||||||
| Output Overvoltage protection DC mode | -474.1 V to +474.1 V | |||||||||
| Output undervoltage protection AC/AC+DC mode | 0.0 V to 474.1 V | |||||||||
| Output undervoltage protection DC mode | -474.1 V to +474.1 V | |||||||||
| Resolution | 0.1 V | |||||||||
| Frequency | upper limit lower limit | 1 Hz to 999.9 Hz *1 | ||||||||
| Resolution | 0.01 Hz (1.00 Hz to 100.0 Hz), 0.1 Hz (100.0 Hz to 999.9 Hz) | |||||||||
| Current | Current limit*2 AC Mode | 0.50A to 5.50A | 1.00A to 11.00A | 2.00A to 22.00A | 3.00A to 33.00A | 4.00A to 44.00A | 6.00A to 66.00A | 9.00A to 99.00A | ||
| Current limit*2 DC/AC+DC mode | 0.35A to 3.85A | 0.70A to 7.70A | 1.40A to 15.40A | 2.10A to 23.10A | 2.80A to 30.80A | 4.20A to 46.20A | 6.30A to 69.30A | |||
| Positive peak current limit*3 | 0.50A to 22.00A | 1.00A to 44.00A | 2.00A to 88.00A | 3.00A to 132.0A | 4.00A to 176.0A | 6.00A to 264.0A | 9.00A to 396.0A | |||
| Negative peak current limit*3 | -0.50A to -22.00A | -1.00A to -44.00A | -2.00A to -88.00A | -3.00A to -132.0A | -4.00A to -176.0A | -6.00A to -264.0A | -9.00A to -396.0A | |||
| Resolution *4 | 0.01 A (0.35 A to 100.0 A), 0.1 A (100.0 A to 396.0 A) | |||||||||
*1 When the 3P05-PCR-LE three-phase output driver (500 Hz LMT) is installed, the frequency is limited to 1 Hz to 500.0 Hz.
*2 The actual current value that can be supplied is 1.1 times the Rated current or the Current Limit setting, whichever is smaller.
*3 The actual current value that can be supplied is the smaller of the maximum peak current or the peak current limit setting.
*4 The setting can be made at 0.01A/0.1A, but may not switch between 0.01A and 0.1A due to the resolution of the built-in DA.
General
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | ||||||||
| Insulation resistance | Between input and chassis, output and chassis, and input and output | 500 Vdc, 30 MΩ or more | 500 Vdc, 10 MΩ or more | ||||||||
| Withstanding voltage | Between input and chassis, output and chassis, and input and output | 1.5 kVac for 1 minute | |||||||||
| Circuit method | Linear amplifier system | ||||||||||
| Environmental conditions | Operating environment | Indoor use, overvoltage category II | |||||||||
| Operating temperature range | 0 °C to +50 °C (32 °F to +122 °F) | ||||||||||
| Storage temperature range | -10 °C to +60 °C (14 °F to 140 °F) | ||||||||||
| Operating humidity range | 20 %rh to 80 %rh (no condensation) | ||||||||||
| Storage humidity range | 90 %rh or less (no condensation) | ||||||||||
| Altitude | Up to 2000 m | ||||||||||
| Weight | Approx. 17 kg (37.48 lb) | Approx. 35 kg (77.16 lb) | Approx. 55 kg (121.25 lb) | Approx. 82 kg (180.78 lb) | Approx. 96 kg (211.64 lb) | Approx.140 kg (308.6 Ibs) | Approx.190kg (418.8 Ibs) | ||||
| Input terminal | (Inlet) | M4 | M5 | M8 | M8 | M8 | M5 | M5 | M5 | M5 | |
| Output terminal | M4 | M4 | M4 | M5 | M5 | M8 | M8 | M8 | M8 | M8 | |
| Accessories | Power cord | 1 pc. With plug, Length: 3 m | The input power cable is not included. Please refer to the list of ordering information specified on the last page. | ||||||||
| Heavy Duty Warning Seals | − | 1 disc | |||||||||
| Setup guide | 1 copy | ||||||||||
| Quick Reference | 1 each for English and Japanese | ||||||||||
| Safety information | 1 copy | ||||||||||
| CD-ROM | 1 disc | ||||||||||
| Electromagnetic compatibility (EMC) *5 *6 | Complies with the requirements of the following directive and standard. EMC Directive 2014/30/EU EN61326-1 (ClassA *7), EN55011 (ClassA *7, Group1 *8) EN61000-3-2, EN61000-3-3 Applicable conditions: All cables and wires connected to this product must be less than 3 m | Complies with the requirements of the following directive and standard. EMC Directive 2014/30/EU EN61326-1 (ClassA *7), EN55011 (ClassA *7, Group1 *8) Applicable conditions: All cables and wires connected to this product must be less than 3 m | |||||||||
| Safety *5 | Complies with the requirements of the following directive and standard. Low Voltage Directive 2014/35/EU *6 EN61010-1 Class I *9, Pollution Degree2 | ||||||||||
*5 Not applicable to custom-ordered or modified products.
*6 Only for models with CE marking displayed on the panel.
*7 This product is a Class A device. It is intended for use in an industrial environment. Use of this product in a residential area may cause interference.
In such cases, special measures to reduce electromagnetic emissions by the user may be necessary to prevent interference with radio and television broadcast reception.
*8 This product is a Group 1 device. This product does not intentionally generate/use radio frequency energy in the form of electromagnetic radiation, induction and/or electrostatic coupling for material processing or inspection/analysis.
*9 This product is a Class I device. Be sure to ground the protective conductor terminals of this product. Safety is not guaranteed if not properly grounded.
Options
Input power cord/Power-sync cable
For PCR1000LE
For PCR2000LE
For PCR3000LE
For PCR4000LE
For PCR6000LE (single-phase, 2-wire)
For PCR6000LE (three-phase, three-wire)
For PCR9000LE (three-phase, three-wire)
For PCR6000LE / PCR9000LE (3-phase 4-wire)
Drivers
(for master unit operated in parallel)※1 ※2
(for slave unit operated in parallel)※1 ※2
Three-phase output driver / Three-phase output driver(500 Hz LMT)
For single-phase 3-wire output
Rack Mount Bracket
For PCR500LE
For PCR1000LE
For PCR2000LE
Connecting cable (for 2P05,3P05)
Power-sync Cable
Connecting cable
Power Signal Cable
Interface
For GPIB
for USB
For LAN/LXI
Analog signal interface boards※3 ※4 ※5 ※6
IEC Dip·Simulator
Line Impedance Network
Extension cable for control panel
Base Hold Angles
Software
More convenient and easy to use! Appliquation software to help you with your exams
Catalog
Manual
2D CAD
Updater/Driver
