Compact AC Power Supply

PCR-MA Series

PCR-MA-SERIES

258,0001,230,000

  • Compact, switching AC power supply (PWM inverter method)
  • AC output: 0 V to 155 V/0 V to 310 V at 40 Hz to 500 Hz
  • DC output: ±0 V to 219 V/±0 V to 438 V
  • Peak currents three times the rated current supported (RMS value)
  • LAN and USB standard digital inerface (GPIB option)
  • Sensing function

LAN LXILAN LXIUKCA
ImageSKUMethod(AC)Output: phaseOutput rating AC mode: Power capacityOutput rating DC mode: Power capacity標準価格WEBかんたんお見積り
PCR500MAPWM inverter methodSingle-phase500VA400W258,000
(税込:283,800
PCR1000MAPWM inverter methodSingle-phase1kVA800W363,000
(税込:399,300
PCR2000MAPWM inverter methodSingle-phase2kVA1.6kW681,000
(税込:749,100
PCR4000MAPWM inverter methodSingle-phase4kVA3.2kW1,230,000
(税込:1,353,000
SKU: PCR-MA-SERIES

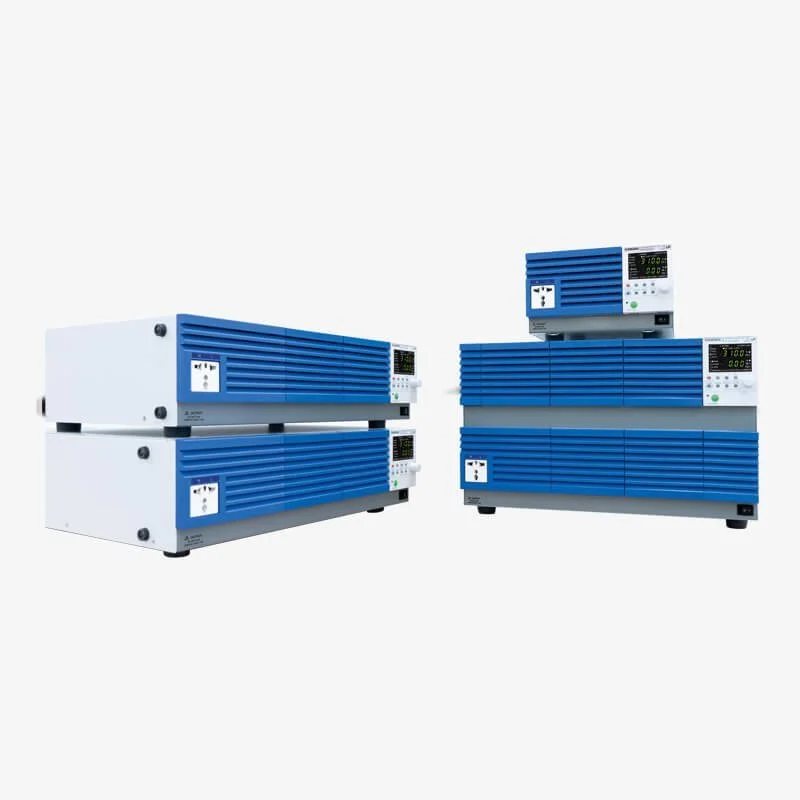

Line-up

Open in a new windowZOOM

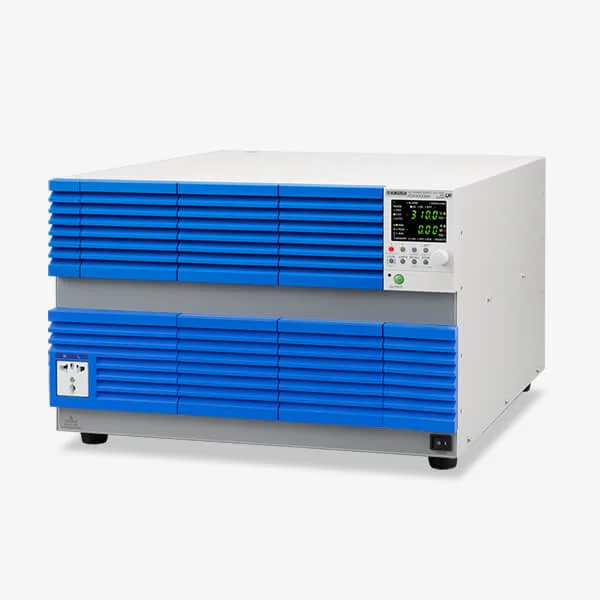

Product ImagesModelCircuit method (AC)Output: PhaseVoltageMax. currentsPower capacitystandard price

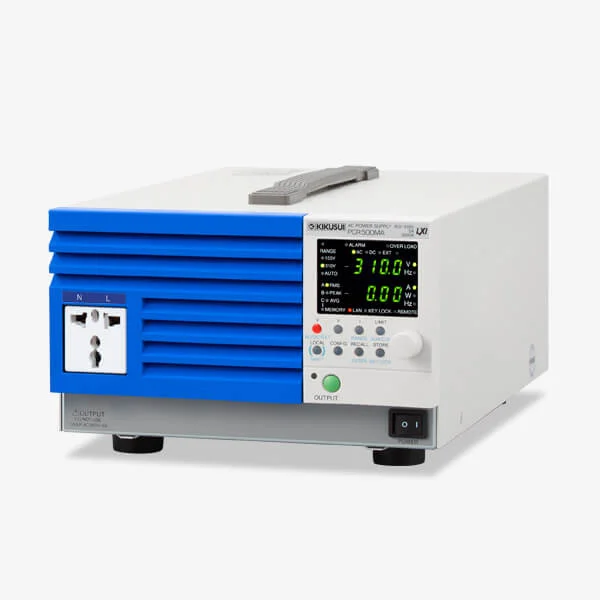

PCR500MAPCR500MAPWM inverter systemSingle phase0V to 155V 0V to 310V (2 ranges)5 A/2.5 A500VA258,000 (税込:283,800
PCR1000MAPCR1000MA10A/5A1kVA363,000 (税込:399,300
PCR2000MAPCR2000MA20A/10A2kVA681,000 (税込:749,100
PCR4000MAPCR4000MA40A/20A4kVA1,230,000 (税込:1,353,000

Specifications

Output rating AC mode

Open in a new windowZOOM
Item/ModelPCR500MAPCR1000MAPCR2000MAPCR4000MA
Voltage range (155V/310V range)Rated voltage range0V to 155V/0V to 310V
Settable voltage range0 V to 157.5 V/0 V to 315.0 V
Voltage setting resolution0.1 V
Voltage setting accuracy *1±(1 % of set + 0.6 V/1.2 V)
Number of output phasesSingle phase
Maximum current *25 A/2.5 A10A/5A20A/10A40A/20A
Maximum peak current *315A/7.5A30A/15A60A/30A120A/60A
Load power factor0 to 1 (leading or lagging)
Power capacity500VA1kVA2kVA4kVA
Frequency setting range40.0 Hz to 500.0 Hz
Frequency resolution0.1Hz
Frequency setting accuracy≤ ±2 × 10-4

*1. For an output voltage of 13.5 V to 155 V/27 V to 310 V, an output frequency of 45 Hz to 65 Hz, no load, and 23°C ± 5°C. *2. For an output voltage of 1 V to 100 V/2 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 155 V/200 V to 310 V. *3. For the capacitor-input rectifying load. Limited by the maximum current.


Output rating DC mode

Open in a new windowZOOM
Item/ModelPCR500MAPCR1000MAPCR2000MAPCR4000MA
Voltage range (155V/310V range)Rated voltage range-219 V to +219 V/-438 V to +438 V
Settable voltage range-222.5 V to +222.5V/-445.0 V to +445.0 V
Voltage setting resolution0.1 V
Voltage setting accuracy *4±(1 % of set + 0.6 V/1.2 V)
Maximum current (output 155 V/310 V range) *54A/2A8A/4A16A/8A32A/16A
Maximum instantaneous current (output 155 V/ 310 V range) *612A/6A24A/12A48A/24A96A/48A
Power capacity400W800W1600W3200W

*4. For an output voltage of 19 V to 219 V/38 V to 438 V, no load, and 23°C ± 5°C. *5. For an output voltage of 1.4 V to 100 V/2.8 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 219 V/200 V to 438 V. *6. Limited by the maximum current.


Output voltage stability

Open in a new windowZOOM
Item/ModelPCR500MAPCR1000MAPCR2000MAPCR4000MA
Line regulation *7≤ ±0.15 %
Load variation (output 155 V/310 V range) *840 Hz to 100 Hz, DC : ≤ ±0.15V/±0.3V
Other than above : ≤ ±0.5 V/±1 V
Output frequency variation *9≤ ±1 %
Ripple noise *100.8 Vrms/1.6 Vrms (TYP)
Ambient temperature variation *11100 ppm/°C (TYP)
Output voltage waveform distortion ratio *12≤ 0.5 %
Output voltage response speed *13150 μs (TYP)
Efficiency *14≥ 70 %

*7. For changes in the rated range. *8. For an output voltage of 80 V to 155 V/160 V to 310 V, a load power factor of 1, output voltage variation between 0 A and maximum current, using the output terminal on the rear panel. *9. For an output voltage of 100 V/200 V and a load power factor of 1. Output voltage variation with 60 Hz as a reference. *10. For 5 Hz to 1 MHz components in DC mode using the output terminal on the rear panel. *11. For an output voltage of 100 V/200 V, an output current 0 A, within the operating temperature range. *12. For an output voltage of 50 V to 155 V/100 V to 310 V, a load power factor of 1, in AC mode. *13. For an output voltage of 100 V/200 V, a load power factor of 1, and an output current variation between 0 A and maximum current. *14. For AC mode, at an output voltage of 100 V/200 V, maximum current, a load power factor of 1, and an output frequency of 40 Hz to 500 Hz.


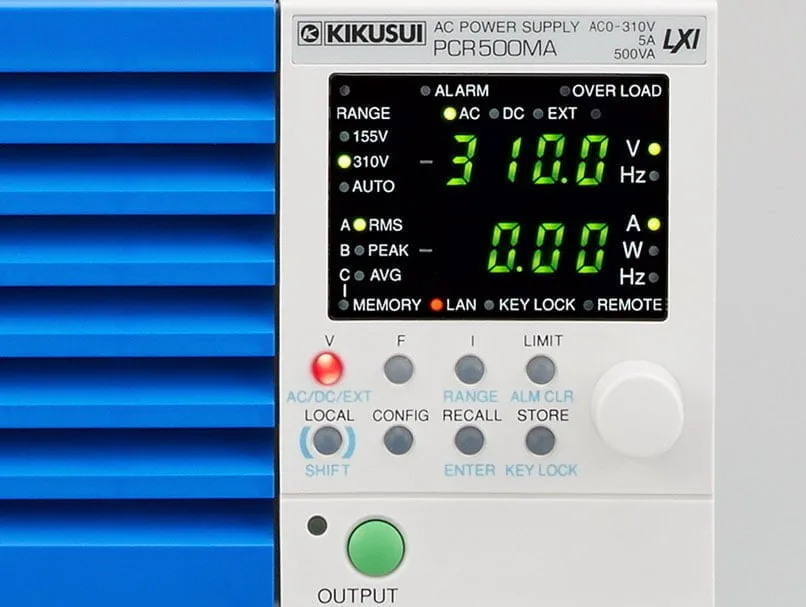

Indicators *15

Open in a new windowZOOM
Item/ModelPCR500MAPCR1000MAPCR2000MAPCR4000MA
Voltage measurementResolution0.1 V
Accuracy (output 155 V/310 V range)RMS, AVE *1645 Hz to 65 Hz, DC : ±(0.5 % of reading +0.3 V/0.6 V)
Other than above : ±(0.7 % of reading +0.9 V/1.8 V)
Current measurementResolution0.01 A0 A to 99.99 A (RMS, AVE): 0.01 A 100 A to (RMS, AVE), IPK: 0.1A
Accuracy (output 155 V/310 V range)RMS, AVE *1745 Hz to 65 Hz, DC: ±(0.5 % of reading +0.02 A/0.01 A)
Other than above: ±(0.7 % of reading +0.04 A/0.02 A)
45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.04 A/0.02 A)
Other than above: ±(0.7 % of reading +0.08 A/0.04 A)
45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.08 A/0.04 A)
Other than above: ±(0.7 % of reading +0.16 A/0.08 A)
45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.16 A/0.08 A)
Other than above: ±(0.7 % of reading +0.32 A/0.16 A)
WattmeterResolution0.1W0.1W (<1 000 W), 1 W (1000 W≤)
Accuracy *18±(2 % of reading +0.5 W)±(2 % of reading +1 W)±(2 % of reading +2 W)±(2 % of reading +4 W)

*15 RMS, average (AVE), and power (W) are derived using the following equations.
RMS (true rms computation) = ( Σ (square of the instantaneous voltage or instantaneous current)/ the number of samples.)
AVE = (instantaneous voltage or instantaneous current)/the number of samples
WAC = Σ (instantaneous voltage x instantaneous current)/the number of samples
WDC = VAVG x IAVG
•Sample period: 100 ms to 125 ms for AC output (an integer multiple of the output waveform period. 125 ms for DC output.
•Update interval: Approx. 3 times/s, averaging over 2s when averaging is turned on.
•Peak current value holds the maximum value of the absolute value of the peak current for 0.3s or approximately 5s.
•The voltage display is set to RMS in AC mode and AVE in DC mode.
*16 AC mode: For an output voltage of 13.5 V to 155 V/27 V to 310 V and 23°C ± 5°C. DC mode: For an output voltage of 19 V to 219 V/38 V to 438 V and 23°C ± 5°C. *17 For waveforms with a crest factor of 3 or less. At 5 % to 100 % of the maximum rated current, 23°C ±5°C *18 For an output voltage of 50 V or greater, an output current in the range of 10 % to 100 % of the maximum rated current, a load power factor of 1, an output frequency of 45 Hz to 65 Hz or DC, and 23°C ± 5°C.


Input rating

Open in a new windowZOOM
Item/ModelPCR500MAPCR1000MAPCR2000MAPCR4000MA
AC inputNominal input rating100 Vac to 120 Vac/200 Vac to 240 Vac, 50 Hz/60 Hz, single phase
Input voltage range90Vac to 132Vac/180Vac to 264Vac (auto detection at power-on)
Input frequency range47 Hz to 63 Hz
Apparent powerApprox. 800 VAApprox. 1600 VAApprox. 3200 VAApprox. 6400 VA
Power factor *190.9 (standard value)
CurrentInput 90 V to 115 V8 A/6.3 A or less16 A/12.5 A or less32 A/25 A or less64 A/50 A or less
Input 180 V to 230 V4 A/3.2 A or less8 A/6.3 A or less16 A/12.5 A or less32 A/25 A or less

*19. For an output voltage of 100 V/ 200 V (155 V/310 V range), maximum current, and a load power factor of 1.


General

Open in a new windowZOOM
Item/ModelPCR500MAPCR1000MAPCR2000MAPCR4000MA
Insulation resistanceBetween input and case, between output and case, between input and output500 Vdc, 30 MΩ or more
Withstanding voltageBetween input and case, between output and case, between input and output1.5 kVac for 1 minute
Earth continuity25 Aac/0.1 Ω or less
Electromagnetic compatibility *1 *2Conforms to the requirements of the directive and standard below.
EMC Directive 2014/30/EU EN 61326-1 (Class A), EN 55011 (Class A, Group 1), EN 61000-3-2, EN 61000-3-3
Applicable under the following conditions: Load cables are less than 30 m. Other cables connected to the product are all less than 3 m.
Safety *1Conforms to the requirements of the directive and standard below.
Low Voltage Directive 2014/35/EU EN 61010-1 (Class I, Pollution Degree 2)
Circuit methodPWM inverter system
EnvironmentOperating environmentIndoor use, overvoltage category II
Operating temperature and humidity range0°C to 40°C, 20 % to 80 %rh (no condensation)
Storage temperature and humidity range-10°C to 60°C, 0 % to 90 %rh (no condensation)
AltitudeUp to 2000 m
Dimensions214(8.43)W×124(4.88)H× 350(13.78)D mm(inches)429(16.89)W×128(5.04)H× 350(13.78)D mm(inches)429(16.89)W×128(5.04)H× 450(17.72)D mm(inches)429(16.89)W×262(10.31)H× 520(20.47) Dmm (inches)
WeightApprox. 6.5kgApprox. 11kgApprox. 16kgApprox. 32kg

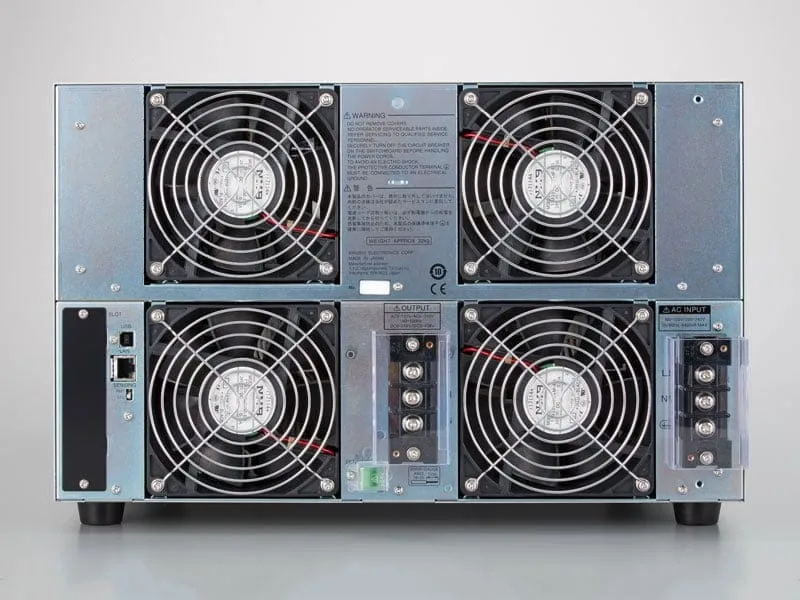

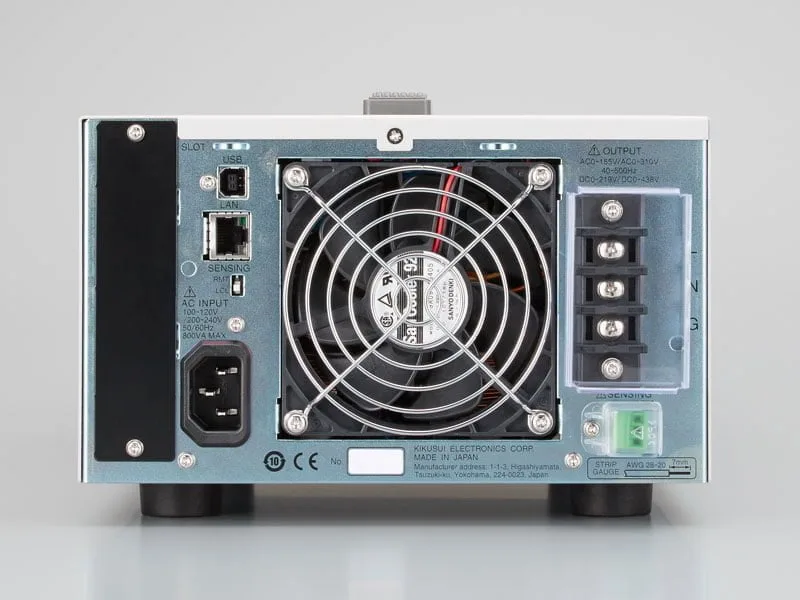

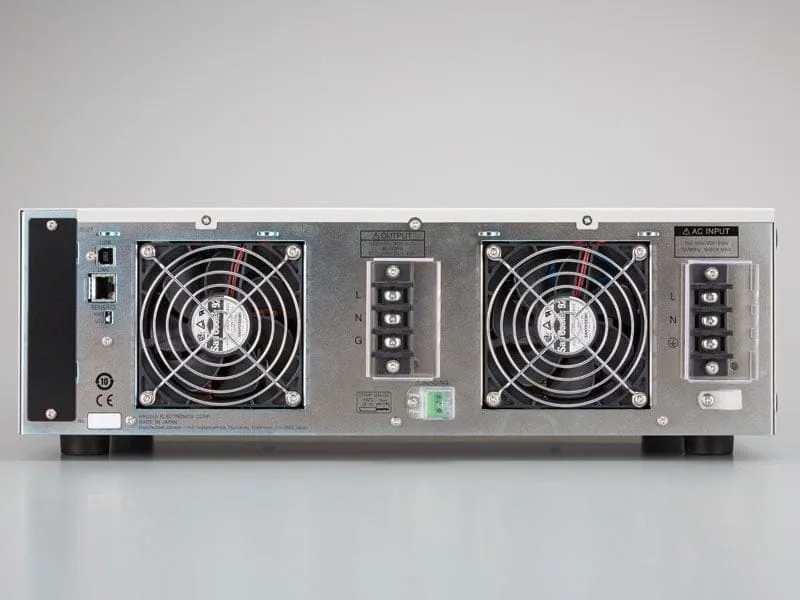

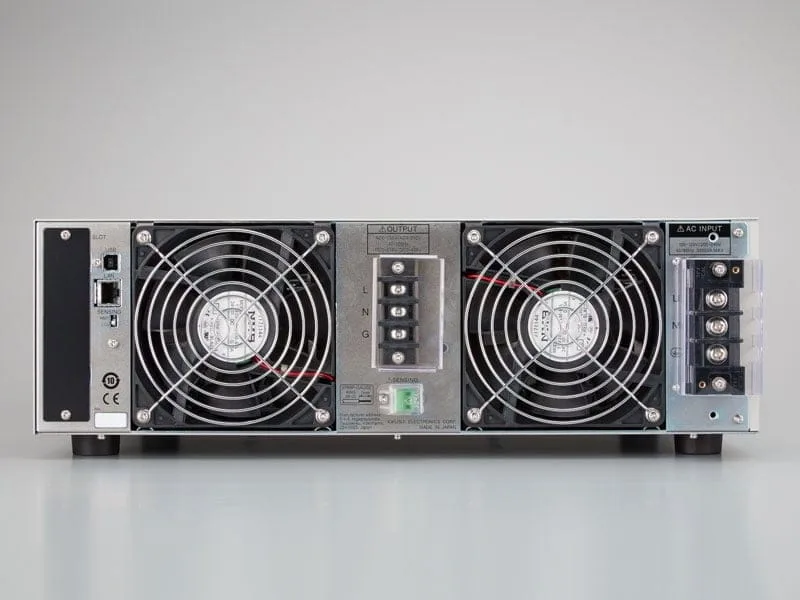

Input terminal(Inlet)M4 terminal blockM6 terminal blockM6 terminal block
Output terminalM4 terminal blockM6 terminal block
AccessoriesPower cord1 pc.
with plug
Length: Approx. 2.5 m
1 pc.
3-core flexible cable Nominal cross-sectional area : 3.5 mm2
without plug
Length: Approx. 3 m
1 set
with ferrite core
1-core cable : 3pcs.
Nominal cross-sectional area : 5.5 mm2
without plug
Length: Approx. 3 m
1 set
1-core cable : 3pcs.
Nominal cross-sectional area : 14 mm2
without plug
Length: Approx. 3 m
Core1 pc.1 pc.1 pc.1 pc.
Cable tie1 pc.1 pc.1 pc.1 pc.
CD-ROM *31 disc
 Packing List(1 pc.), Quick Reference(Japanese 1 sheet, English 1 sheet), Safety Information(1 copy)

*1 Not applicable to custom order models. *2 Only on models that have the CE marking on the panel. *3 Included in the user’s manual, and communication interface manual.


Analog interface specifications (EX08-PCR-MA: optional)

Open in a new windowZOOM
Input terminalMaximum allowable input voltage±15 V
TypeBNC
Input impedance10 kΩ ±5 % (unbalanced)
Isolation voltage42 Vpk
EXT-AC mode *1Input voltage range0 V to ±10 V (DC)
Voltage amplification rate (155 V/310 V range)15.5 times or 31 times
Frequency setting range40 Hz to 500 Hz
EXT-DC modeInput voltage range *2ATT OFF0 V to ±2.19 Vpeak (0 to 155 Vrms sine wave)
ATT ON0 V to ±10 V (DC)
Input frequency rangeATT OFF40 Hz to 500 Hz (sine wave) / 40 Hz to 100 Hz (square wave) /DC
Frequency characteristicsATT OFF-0.3 dB at 500 Hz (typical value) with 55 Hz as a reference
Voltage amplification rate (155 V/310 V range)ATT OFF100 times or 200 times
ATT ON21.9 times or 43.8 times
Output voltage distortion ratio *3Main unit specifications + 0.5 % or less

*1 ATT is always set to on. *2 Measurable range for voltage, current and power is DC and from 40 Hz to 500 Hz. The frequency is set based on the input waveform cycle*3 In the EXT-AC mode, when direct current is input. In the EXT-DC mode, when a sine wave with [IB22] [EX08-PCR-MA] [IB22] Analog interface board [EX08-PCR-MA] 0.1 % or less distortion rate is input.


Specifications of the communication interfacen

Open in a new windowZOOM
LANComplies with IEEE 802.3 100base-TX/10Base-T Ethernet 1.5 LXI Device Specification 2016, RJ-45 connector
USBComplies with the USB 2.0 specifications. Communication speed: 480 Mbps (High-speed) Complies with the USBTMC-USB488 device class specifications.
GPIB (IB22: optional)Complies with IEEE STD. 488.1-1978 specifications. SH1, AH1,T6, L4, SR1, RL1, PP0, DC1, DT1, C0, E1
Common specificationsSoftware protocol: IEEE 488.2 STD 1992 Command language: SCPI Specification 1999.0

Options

GPIB interface board

Analog interface board

LAN-RS232C Converter Introduction

XDT2321002-01-S xDirect232 Ver. RS232C (AC Adapter Included)/(LAN-RS232C Converter)
https://www.lantronix.com/products/xdirect/
[Notes] *Please refer to the LANTRONIX Corporation instruction manual for details on RS232C control using the LAN-RS232C converter. *We can not guarantee compatibility with your computer, etc.

Rack-mount frames and brackets

For PCR500MA

For PCR1000MA / PCR2000MA

For PCR4000MA

Sequence creation software


Use of PCR-M series compatible mode switching function (limited)
