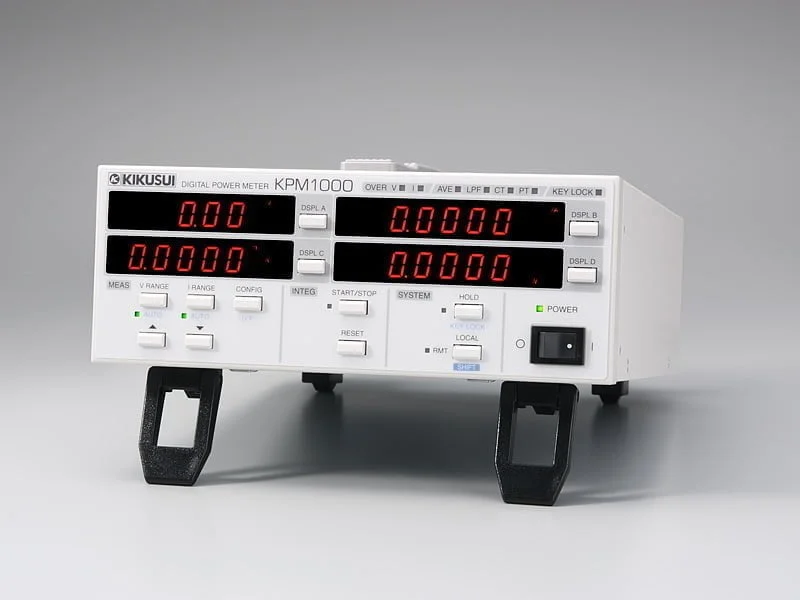

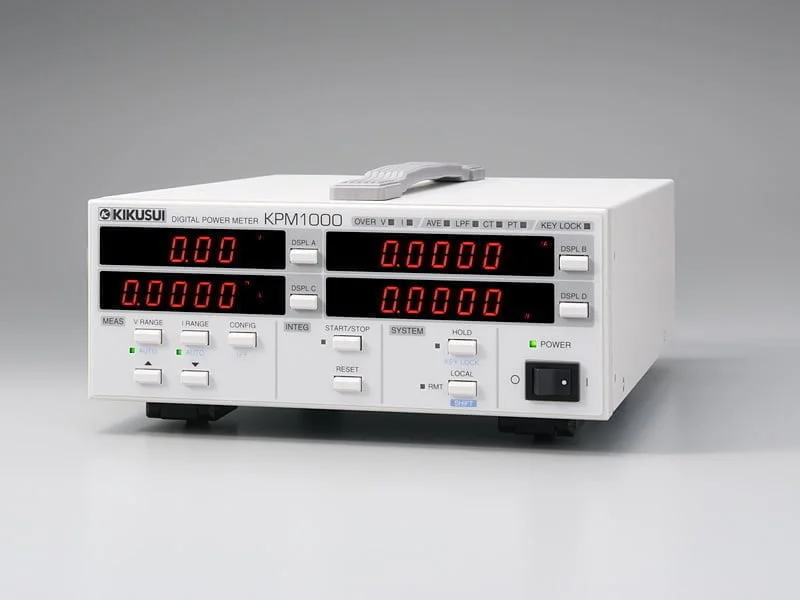

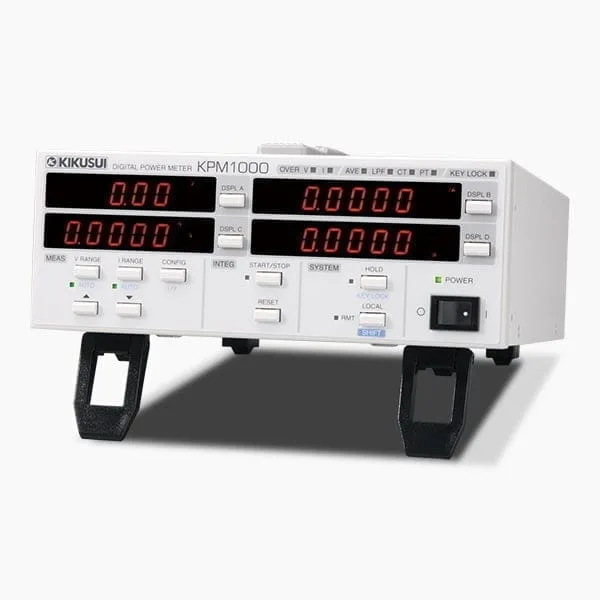

Digital Power Meter
KPM1000
158,000円 – 188,000円
- Exclusively for single phase
- IEC62301 First Edition compliant, ErP Directive (Lot 6 and other) standby power measurements
- 17 measurement items, including voltage, current, frequency, active power, phase angle, and power factor
- Basic accuracy ± (0.1% reading + 0.1% range)
- Current range: 5 mA to 20 A
- Displays 4 measuring items at the same time
- RS232C standard, GPIB and USB support (factory option)
Line-up
Image | SKU | 標準価格 | WEBかんたんお見積り | |
---|---|---|---|---|
KPM1000 | - | 158,000円 (税込:173,800円) | ||
KPM1000-with-GPIB | GPIB | 188,000円 (税込:206,800円) | ||
KPM1000-with-USB | USB | 178,000円 (税込:195,800円) |
Overview
From very low power to high power, applies to the wide range of power measurements!!
The KPM1000 Digital Power Meter is a single-phase power measuring instrument that applies to the wide range of power measurements, from very low power during standby mode to high power during operation mode. It has a minimum power range of 750 mW, with resolution of 0.01 mW, and the basic accuracy of 0.1% of reading with guaranteed accuracy extending from 1% of the range while it realizes a wide dynamic range.
In recent years, eco-design regulations have been actively implemented in many countries, starting with Europe’s ErP Directive and including the United States’ Energy Star and Japan’s Top Runner Program. These regulations are being utilized by companies in their efforts to act against environmental problems and differentiate their products. Through ErP Directive Lot 6, the standby power (off mode and standby mode power consumption) of household electrical appliances and OA electronic equipment is regulated and the preparation of a declaration of conformity is required by CE marking. This requirement regulates the standby power to become 1 W or less; and starting in 2013, the regulation will be strictly reduced to 0.5 W or less. The KPM1000 can accurately measure the standby power even less than 0.5 W.
The KPM1000 complies with IEC62301 (the measurement of standby and off mode power in household and office electrical and electronic equipment products) standards, and it is capable to perform the standby power measurements required by ErP Directive Lot 6 and other regulations. System upgrades are also possible. Because of its size, weight, and various type of optional interface (some are factory options), the KPM1000 can be widely used as a beach-top instrument for measuring equipment power and also as a part of component of the test system.
High-precision resolution
Voltage, current, and power basic accuracy ±(0.1 % of reading + 0.1 % of range)
Voltage range | 150 V/300 V/Auto range |
---|---|
Current range | 5mA/10mA/20mA/50mA/100mA/200mA/500mA/1A/2A/5A/10A/20A/Auto range |
Power range * | 750mW/1.5W/3W/6W/7.5W/15W/15W/30W/60W/75W/150W/300W/600W/750W/1.5kW/3kW/6kW |
*Automatically determined based on voltage/current range combination.
Single-phase two-wire (measurement category: CAT II)
The measurement category is classified into several categories, such as CAT I, CAT II, CAT III, CAT IV, etc. The KPM1000 is capable of applying to the category CAT II measurement.
Maximum transient voltage
Line-to-Neutral Voltage V r.m.s | Maximum Transient Voltage V peak | ||
---|---|---|---|
Measurement Category II * | Measurement Category III * | Measurement Category IV * | |
50 | 500 | 800 | 1500 |
100 | 800 | 1500 | 2500 |
150 | 1500 | 2500 | 4000 |
300 | 2500 | 4000 | 6000 |
600 | 4000 | 6000 | 8000 |
1000 | 6000 | 8000 | 12000 |
* Measurement categories II, III, and IV apply only to measurements with the main power supply up to an AC effective value of 1000 V.

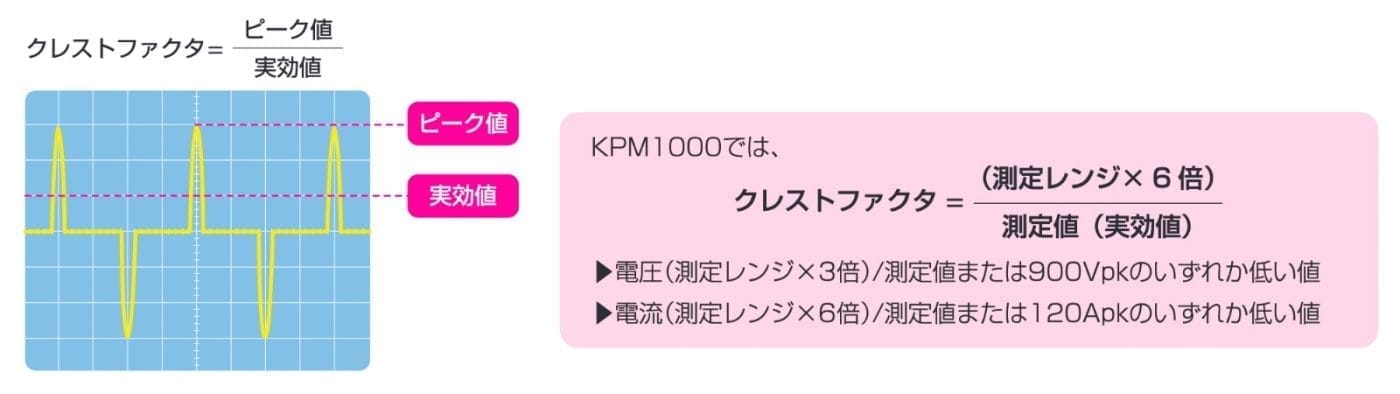

Crest factor 6
Obtaining crest factor 6 realizes to perform highprecision measurements of waveforms having a small effective value but large peak value.*Allowable crestfactor of voltage mesurement is 3.
Four-item display
Displays four measurement items simultaneously. Save the trouble from switching the measurement item.
High viewability of seven-segment display provides excellent visibility even from distant positions.
17 diverse measurement items
- Voltage
- Current
- Active power
- Apparent power
- Reactive power
- Power factor
- Phase angle
- Frequency
- Integrated current
- Integrated power
- Integrated power in positive direction
- Integrated power in negative direction
- Integrated elapsed time
- Voltage crest factor
- Current crest factor
- Voltage peak
- Current peak

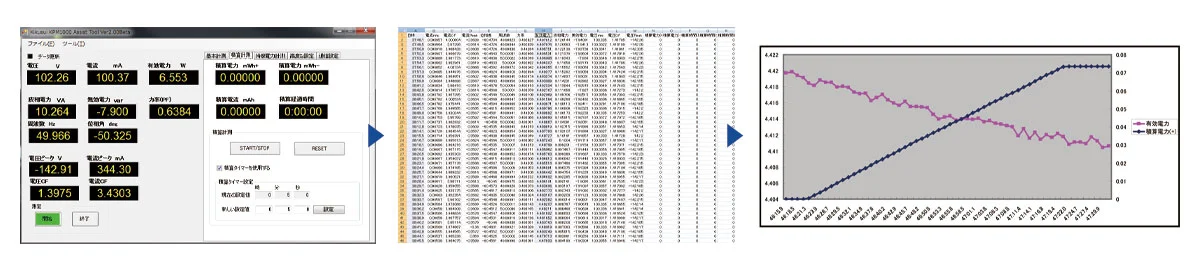

Separate positive and negative measurements of cumulative power
The unit is suitable for measuring power consumption and regeneration of solar power conditioners and other system interconnection inverters.
Power measurement and application examples
Utilization of Assist Tool
A handy application software Assist Tool can be downloaded from the WEB. It makes the operation possible from a PC as you would from the main unit panel. And as a data logger, it can easily acquire the long term periods of data, too.

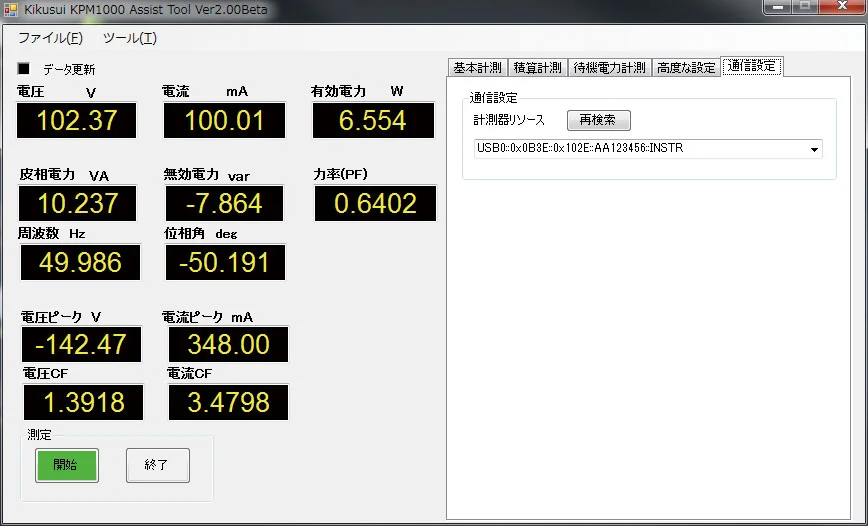

Collective display of measurement parameters
17 measurement items can be displayed in a single window.
Measurement data logging feature
Using the Assist Tool, you can import waveform data to the PC in the CSV format with a simple connection and a single press of a button. When an application such as Excel is used, graphs can easily be created.
Acquisition of voltage and current waveform data
You can easily import voltage and current waveforms to a PC. It is difficult to imagine what type of waveform they actually have even when the peak values, crest factors, and power factor values are viewed. Also, it is difficult to use and take measurements with an instrument such as an oscilloscope with linear measurements of surroundings. With this function, voltage and current waveform data can easily be imported to a PC in the CSV format. When an application such as Excel is used, graphs can easily be created.
Specifications
Unless specified otherwise, the specifications are for the following settings and conditions.
- The warm-up time is 30 minutes.
- After the KPM1000 has been warmed up, it must be calibrated correctly in a 23 °C ± 5 °Cenvironment.

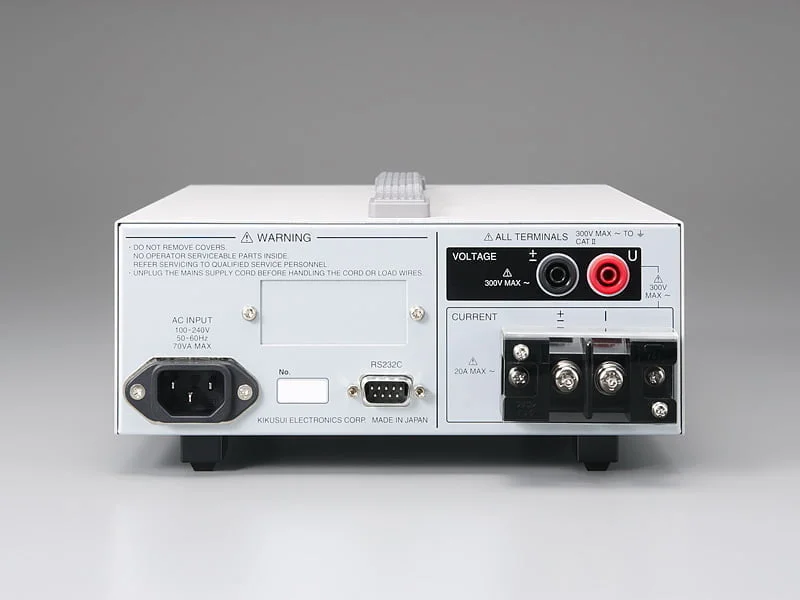

Input
Item | Specifications | |
---|---|---|
Measurement line | Single-phase, two-wire system (measurement category: CAT II) *1 | |
Voltage input terminal | Safety terminal | |
Current input terminal | M6 terminal block | |
Rated measured voltage | 300 Vrms | |
Rated measured current | 20 Arms | |
Maximum allowable input voltage | 900 Vpkまたは 360 Vrms | |
Maximum allowable input current | 120 Apk or 24 Arms | |
Maximum isolation voltage | Voltage | 300 V |
Input impedance(50/60 Hz) | Voltage input | 6 MΩ ± 10 % |
Current input | 2 mΩ or less | |
Line filter (LPF) | Cutoff frequency | 500 Hz (can be turned on or off) |
*1 Applies to measurements on circuits directly connected to a low-voltage installation. This category appliesto measurements on circuits of equipment on the primary side of a transformer. Such pieces of equipmenthave a power cord connected to a power outlet. Examples are household appliances and portable tools.
Display item
Measurement items | Voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, integrated current, integrated power, positive integrated power, negative integrated power, integration timevoltage crest factor, current crest factor, voltage peak, current peak. |
---|---|
Display update interval | 100 ms / 200 ms / 500 ms / 1 s / 2 s / 5 s / 10 s. |
Number of display items | 4 items simultaneously. |
Voltage measurement function
Item | Specifications | ||
---|---|---|---|
Measurement range | Resolution | 150 V | 0.01 V |
300 V | 0.01 V | ||
Allowable crest factor | 3 | ||
Accuracy*1 *2 | Effective input range | Full range | 1 % to 120 % of the range |
45 Hz ≦ f ≦ 66 Hz, LPF: On or off | ±(0.1 % of reading + 0.1 % of range) | ||
66 Hz < f ≦ 400 Hz, LPF: Off | ±(0.1 % of reading + 0.2 % of range) | ||
400 Hz < f ≦ 1 kHz、LPF:OFF | ±(0.1 % of reading + 0.2 % of range) | ||
1 kHz < f ≦ 5 kHz LPF:OFF | ±( 3 % of range) | ||
One-year accuracy (accuracy up to 12 months after calibration) | 1.5 times the reading errors for the accuracy at 6 months | ||
Auto range | UP conditions | When the value exceeds 120 % of the range or when a peak over-range occurs | |
DOWN condition | When the value is less than 30 % of the range, the value is less than or equal to 90 % of the next lower range, and a peak overrange is not occurring |
*1 Under the following conditions: within the effective input range, within six months after the last calibration, at a temperature of 23 °C ± 5 °C, sine wave, power factor of 1, and common mode voltage of 0 V. If the waveform is asymmetrical (waveforms such as half-wave rectified waveforms and full-wave rectified waveforms), errors will occur. *2 The peak voltage accuracy is defined for a sine wave whose frequency is between 45 Hz and 66 Hz. Accuracy: ± (0.1 % of reading + 3.1 % of range)
Current measurement function
Item | Specifications | ||
---|---|---|---|
Measurement range | Resolution | 5 mA | 0.0001 mA |
10 mA | 0.001 mA | ||
20 mA | |||
50 mA | |||
100 mA | 0.01 mA | ||
200 mA | |||
500 mA | |||
1A | 0.1 mA | ||
2A | |||
5A | |||
10A | 1 mA | ||
20 A | |||
Allowable crest factor | 6 | ||
Accuracy*1 *2 *3 | Effective input range | Full range | 1 % to 120 % of the range |
45 Hz ≦ f ≦ 66 Hz, LPF: On or off | ±(0.1 % of reading + 0.1 % of range) | ||
66 Hz < f ≦ 400 Hz, LPF: Off | ±(0.1 % of reading + 0.2 % of range) | ||
400 Hz < f ≦ 1 kHz、LPF:OFF | ±(0.1 % of reading + 0.2 % of range) | ||
1 kHz < f ≦ 5 kHz LPF:OFF | ±( 3 % of range) | ||
Residual noise | With the inputs shorted LPF: On or off | 0.5 % of range | |
One-year accuracy (accuracy up to 12 months after calibration) | 1.5 times the reading errors for the accuracy at 6 months | ||
Auto range | UP conditions | When the value exceeds 120 % of the range or when a peak over-range occurs | |
DOWN condition | When the value is less than 30 % of the range, the value is less than or equal to 90 % of the next lower range, and a peak overrange is not occurring |
*1 Under the following conditions: within the effective input range, within six months after the last calibration, at a temperature of 23 °C ± 5 °C, sine wave, power factor of 1, and common mode voltage of 0 V. If the waveform is asymmetrical (waveforms such as half-wave rectified waveforms and full-wave rectified waveforms), errors will occur. * 2 When you are using the 5 mA range and the input is less than 10 % of the range, add (0.1 % of range). * 3 The peak current accuracy is defined for a sine wave whose frequency is between 45 Hz and 66 Hz. Accuracy: ± (0.1 % of reading + 3.1 % of range)
Power measurement function
Item | Specifications | ||
---|---|---|---|
Measurement range (combination of the voltage and current ranges) | Resolution | 750 mW | 0.01 mW |
1.5 W | 0.1 mW | ||
3 W | |||
6 W | |||
7.5 W | |||
15 W | 1 mW | ||
30 W | |||
60 W | |||
75 W | |||
150 W | 0.01 W | ||
300 W | |||
600 W | |||
750 W | |||
1.5 kW | 0.1 W | ||
3 kW | |||
6 kW | |||
Accuracy*1 *2 | Effective input range | Full range | 1 % to 144 % of the range |
45 Hz ≦ f ≦ 66 Hz, LPF: On or off | ±(0.1 % of reading + 0.1 % of range) | ||
66 Hz < f ≦ 400 Hz, LPF: Off | ±(0.1 % of reading + 0.2 % of range) | ||
400 Hz < f ≦ 1 kHz、LPF:OFF | ±(0.1 % of reading + 0.3 % of range) | ||
1 kHz < f ≦ 3 kHz LPF:OFF | ±( 3 % of range) | ||
Influence of the power factor | Power factor 0 | 45 Hz to 66 Hz | ±0.4 % of VA |
0 < Power factor < 1 | Add (tanθ × 0.4 )% of reading | ||
One-year accuracy (accuracy up to 12 months after calibration) | 1.5 times the reading errors for the accuracy at 6 months |
*1 Under the following conditions: within the effective input range, within six months after the last calibration, at a temperature of 23 °C ± 5 °C, sine wave, power factor of 1, and common mode voltage of 0 V. If the waveform is asymmetrical (waveforms such as half-wave rectified waveforms and full-wave rectified waveforms), errors will occur. *2 When you are using the 5 mA range and the input is less than 10 % of the range, add (0.1 % of range).
Frequency measurement function
Item | Specifications |
---|---|
Measurement range | 10 Hz to 10 kHz |
Measured item | Voltage or current |
Measurement input level | 30% to 120% of the measurement range |
Frequency filter | On (cutoff frequency: 500 Hz) or off |
Accuracy | ±(0.06 % of reading) |
Math features
Item | Specifications | |
---|---|---|
Apparent power *1 *2 | VA = V・A | |
Reactive power *1 *2 | ||
Power factor *1 *2 | PF = W / VA | |
Phase angle *1 *2 | deg = cos-1(W / VA) | |
Crest factor *1 *2 | Peak value/RMS value | |
Moving average (averaging) | Off, 2, 4, 8, 16, 32, 64 | |
Selectable range for the PT ratio | 1 to 2000 in steps of 1 | |
Selectable range for the CT ratio | 1 to 2000 in steps of 1 | |
Accuracy of leading phase and lagging phase detection | The voltage and current input is 50 % to 120 % of the measurement range. 45 Hz ≦ f ≦ 1 kHz LPF:OFF | ±10 ° |
*1 This is determined through a digital computation using the voltage, current, and active power. For distorted signal input, the value obtained on the KPM1000 may differ from that obtained on other instruments that use a different method. *2 The measurement accuracy is determined by an expression whose components are the measurement accuracies of the voltage, current, and active power.
Integration feature
Item | Specifications | |
---|---|---|
Integration | Accuracy | ±(accuracy of the power or current + 0.1 % of reading) |
Timer*1 | Setting range | 0 hours 00 minutes to 9999 hours 59 minutes |
Accuracy | ±0.02 % |
*1 You can use the timer setting to automatically stop integration.
Other functions
Item | Specifications |
---|---|
Synchronization source | Voltage, current, off (the full display update interval) |
Display hold | Holds the displayed values; you can switch between displayed (measured) values |
Communication function | RS232C (standard), GPIB/USB (select either, factory option) |
General specifications
Item | Specifications | |
---|---|---|
AC input | Nominal input rating | 100 V to 240 V, 50 Hz to 60 Hz |
AC input | 90 V to 250 V | |
Maximum power consumption | 70 VA | |
Withstanding voltage | Between the voltage and current input terminals and the chassis and interface | 1980 Vac for 5 minutes |
Between the voltage and current input terminals and the AC input | ||
Between the voltage input terminals and the current input terminals | ||
Between the AC input and the chassis | 1500 Vac for 1 minute | |
Insulation resistance | Between the voltage and current input terminals and the chassis and interface | 100 MΩ or greater at 500 Vdc |
Between the voltage and current input terminals and the AC input | ||
Between the voltage input terminals and the current input terminals | ||
Between the AC input and the chassis | ||
Environmental conditions | Operating environment | Indoor use, overvoltage category II |
Operating temperature | 0 °C to +40 °C | |
Operating humidity | 20 %rh to 80 %rh (no condensation) | |
Storage temperature | -20 °C to +70 °C | |
Storage humidity | 90 %rh or less (no condensation) | |
Altitude | 2000 m or less | |
Earth continuity | 0.1 Ω or less at 25 Aac | |
Safety *1 | Complies with the requirements of the following directive and standard. Complies with the requirements of the following directive and standard Low Voltage Directive 2006/95/EC *2 EN61010-1, class I, pollution degree 2 | |
Electromagnetic compatibility (EMC) *1*2*3 | Complies with the requirements of the following directive and standard. EMC Directive 2004/108/EC EN61326-1 Compliance condition: The maximum length of all cabling and wiring connected to the KPM1000 must be less than 3 m. | |
Dimensions | See the outline drawing | |
Weight | Approx. 2.5 kg (5.51 lb.) | |
Accessories | Power cord (three-pronged) 1, Safety plugs (solder-connection type) 1 set (red and black), CD-ROM *4 1, Quick start English: 1, Japanese: 1, Safety information 1 (contains English, Chinese, and Japanese) , Packing list 1 (contains both English and Japanese) |
*1 Does not apply to specially ordered or modified KPM1000s. *2 Limited to products that have the CE mark on their panels. *3 The measured values may be affected by noise. Use shielded cables for the communication cables. The act of connecting measuring cables may cause radio interference, in which case users may be required to correct the interference.
*4 Contains the User’s Manual, the Communication Interface Manual, and the KI-VISA library.
